The 3D model is for spatial reference only. The colours may not match the selected variant.

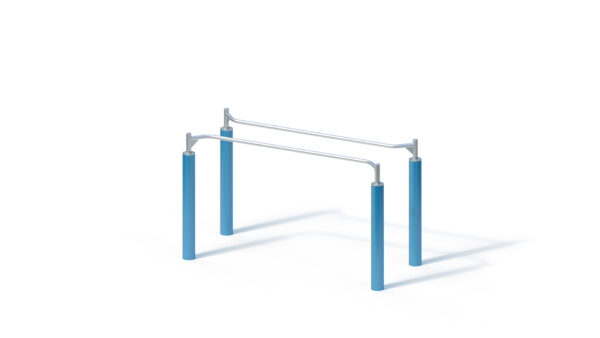

Parallel bars exerciser
Select variant:
The most important information
| Age group ? | 14+ |
|---|---|
| Areas of use ? | Trim paths |
| Number of users ? | 1 person |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 5,12 m |
|---|---|
| Minimum space width ? | 3,92 m |
| Minimum space height ? | 1,25 m |
| Equipment length ? | 2,12 m |
| Equipment width ? | 0,92 m |
| Equipment height ? | 1,25 m |
| Free-fall height ? | 1,22 m |
| Platform heights | - |
| Total weight ? | 105.00 kg |
| Heaviest single part ? | 25.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.4m x 0.4m x 0.6m) |
Product Downloads
Product description
Technical data

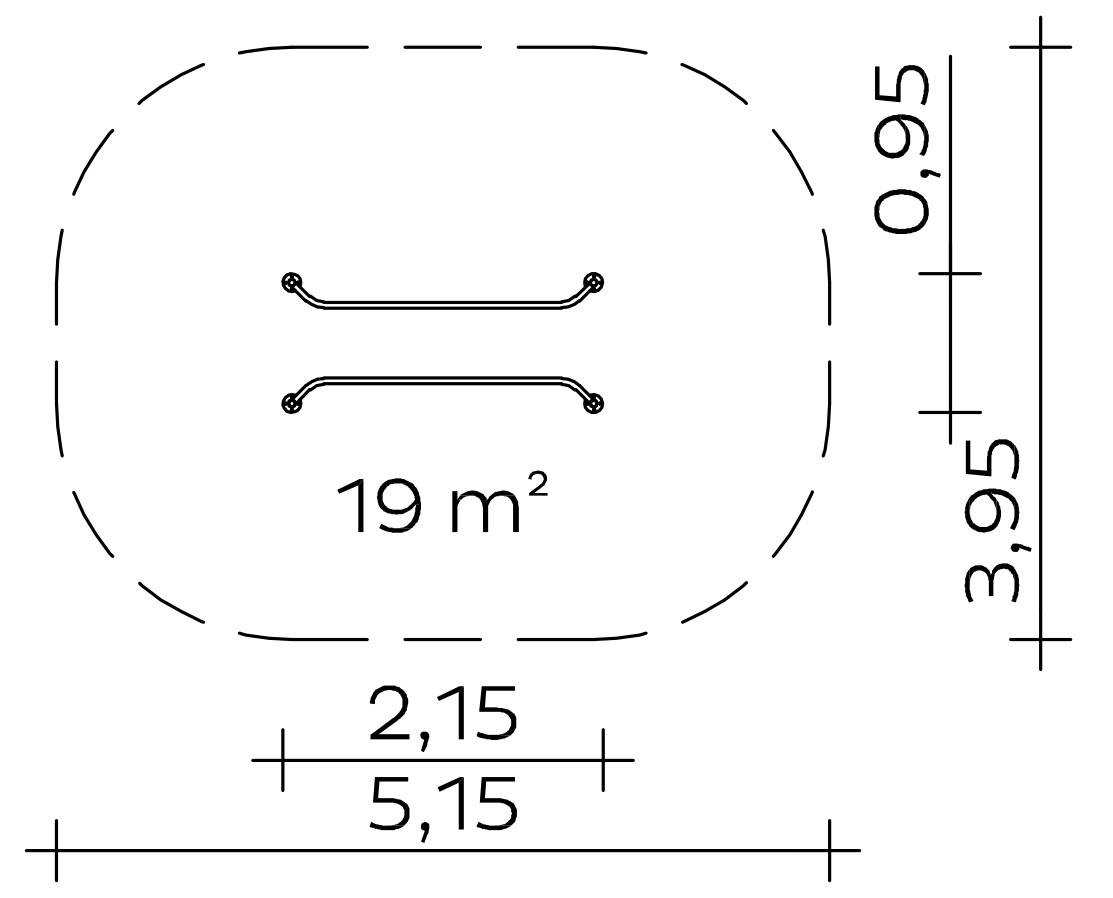

Base area: 0.91 x 2.12 m
Minimum space: 3.92 x 5.12 m (19 m²)
Width/Holmengasse: 0.50 m
Total height: 1.25 m
Weight: 25 kg heaviest individual part
105 kg in total
Posts: tubular steel Ø 121 x 4 mm, hot-dip galvanised, powder-coated in RAL colour of choice (except fluorescent and mica colours)
Metal components: Stainless steel
Please note
The equipment is optionally available as site-specific public playground equipment (certified to EN 1176) or as site-specific outdoor fitness equipment (certified to EN 16630).
If it is set up as fitness equipment, information on function and safety must be provided in the immediate vicinity. This can be done using an optionally available station sign.
Foundations (client-provided)
4 units 0.40 x 0.40 x 0.60 m
Concrete volume: 0.38 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
1,22 m
Suitable for
Adults
Trim trails etc.,
sporting activities
Item number: 057072001
This Kaiser & Kühne product enables:
