Climbing pole and gym-ring exerciser
The most important information
| Altersgruppe ? | 14+ |
|---|---|
| Einsatzgebiete ? | Trim paths |
| Benutzeranzahl ? | 3 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Mindestraumlänge ? | 7,84 m |
|---|---|
| Mindestraumbreite ? | 7,12 m |
| Mindestraumhöhe ? | 3,96 m |
| Gerätelänge ? | 3,24 m |
| Gerätebreite ? | 0,12 m |
| Gerätehöhe ? | 3,96 m |
| Freie Fallhöhe ? | 2,70 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 170.00 kg |
| Schwerstes Einzelteil ? | 55.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (1m x 0.8m x 0.6m) |
Product Downloads
Product description
Technical data

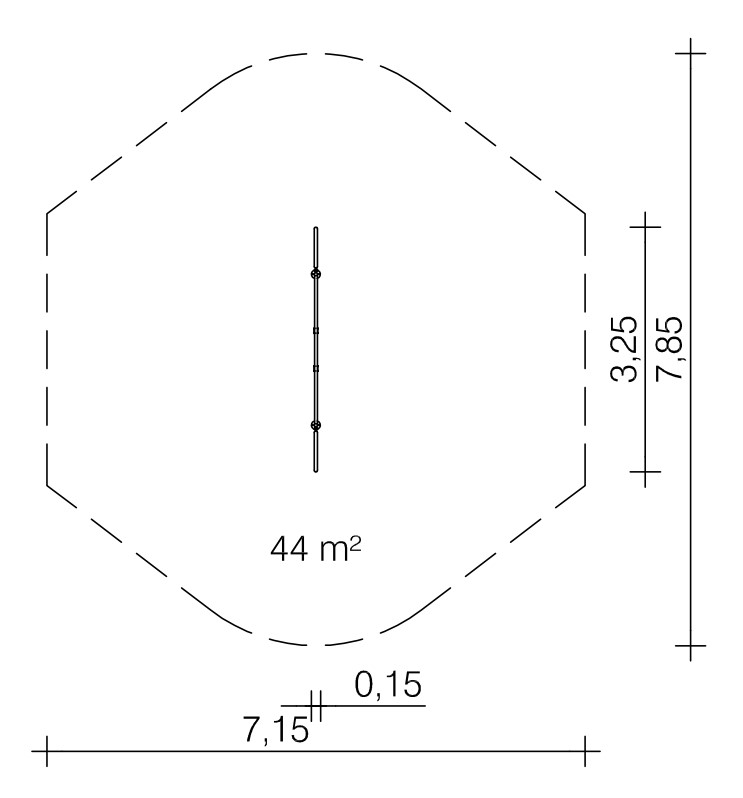

Base area: 0.12 x 3.24 m
Minimum space: 7.12 x 7.84 m (44 m²)
Total height: 3.96 m
Weight: 55 kg heaviest individual part
170 kg in total
Posts: tubular steel Ø 121 x 4 mm, hot-dip galvanised, powder-coated in RAL colour of choice (except fluorescent and mica colours)
Rings: Aluminium tube with welded-in aluminium adapter for chain suspension
Metal components: Stainless steel
Please note
The equipment is optionally available as site-specific public playground equipment (certified to EN 1176) or as site-specific outdoor fitness equipment (certified to EN 16630).

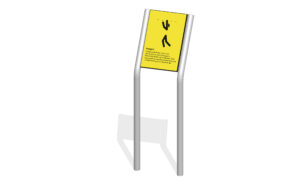

If it is set up as fitness equipment, information on function and safety must be provided in the immediate vicinity. This can be done using an optionally available station sign.
Foundations (client-provided)
2 pcs. 1.00 x 0.80 x 0.60 m
Concrete volume: 0.96 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
2,70 m
Suitable for
Adults
Trim trails etc.,
sporting activities
Item number: 057100001
