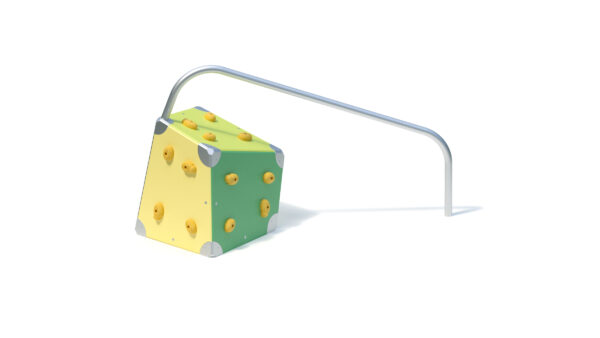

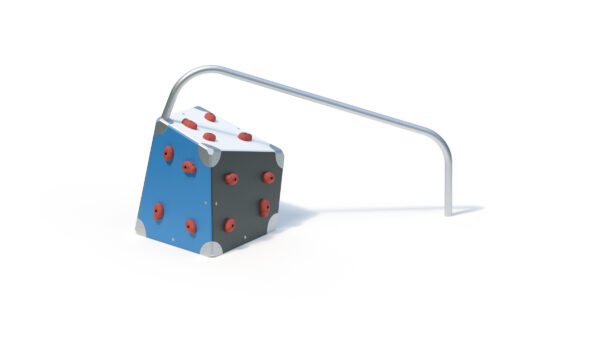

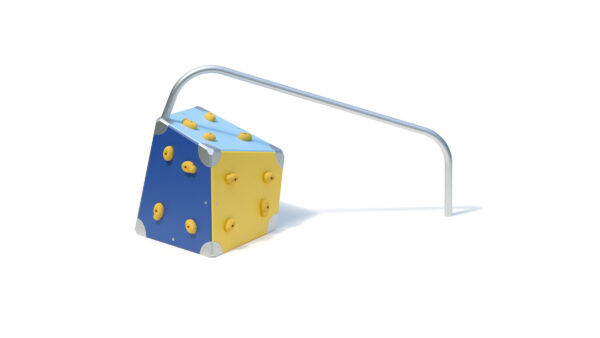

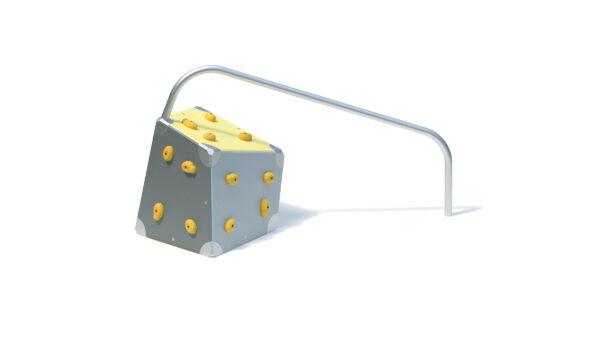

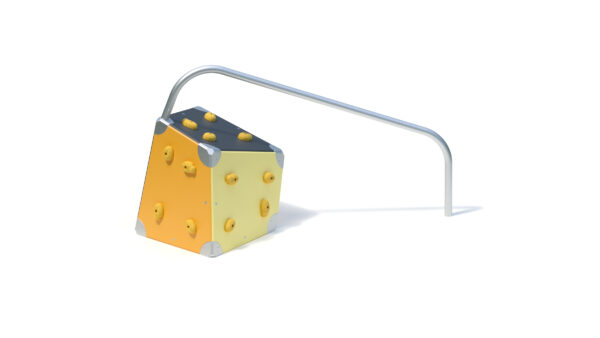

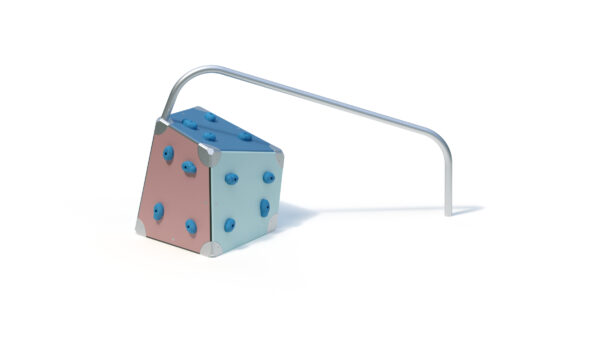

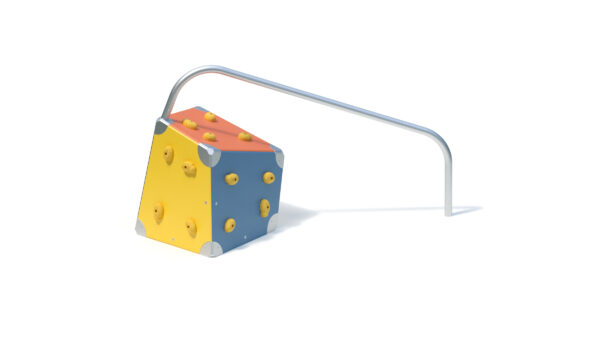

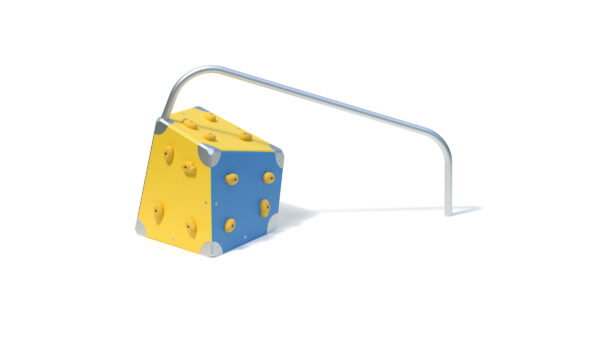

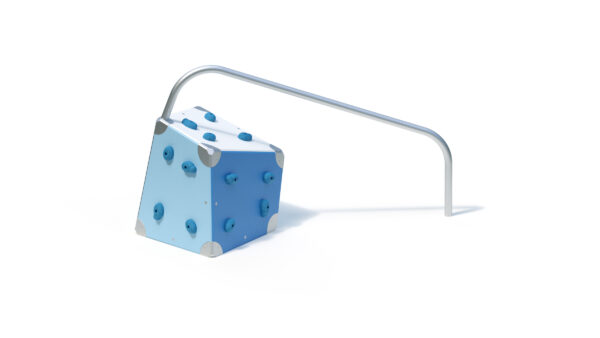

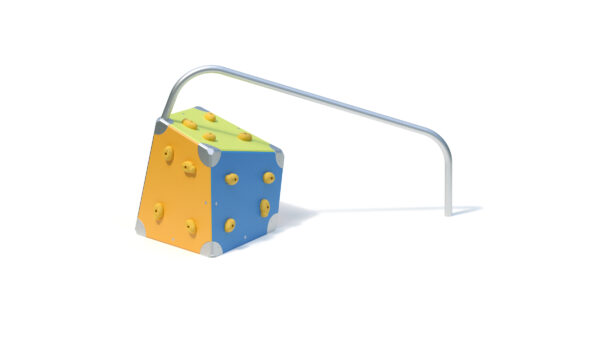

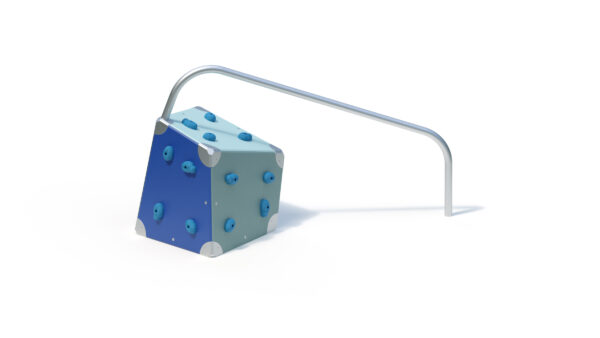

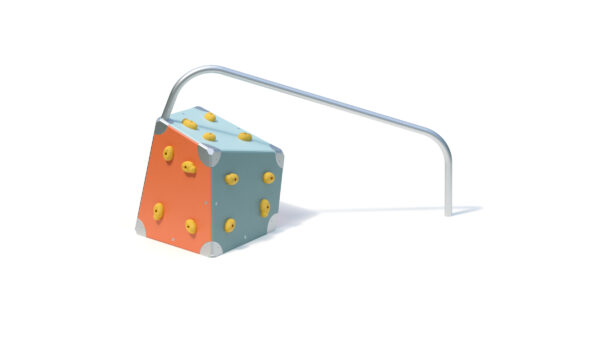

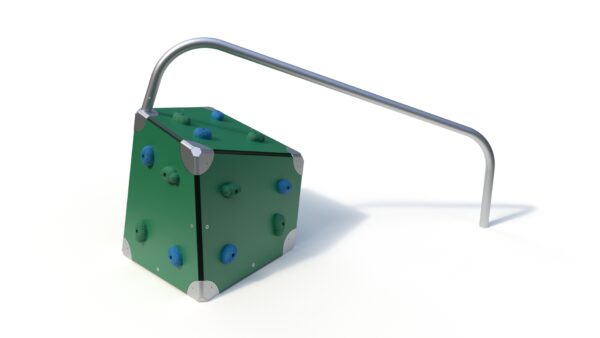

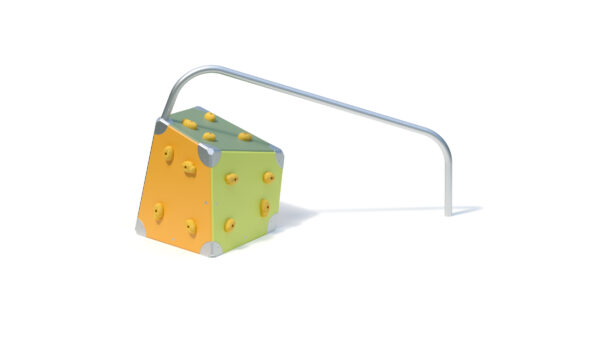

Climbing Rock mini + Pipe Slide
Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 5 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 5,50 m |
|---|---|
| Minimum space width ? | 4,34 m |
| Minimum space height ? | 1,36 m |
| Equipment length ? | 2,50 m |
| Equipment width ? | 1,34 m |
| Equipment height ? | 1,36 m |
| Free-fall height ? | 1,36 m |
| Platform heights | - |
| Total weight ? | 168.00 kg |
| Heaviest single part ? | 151.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | Ja |
| Foundations | Quantity: 1 (0.93m x 1m x 0.3m) Quantity: 1 (0.5m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data

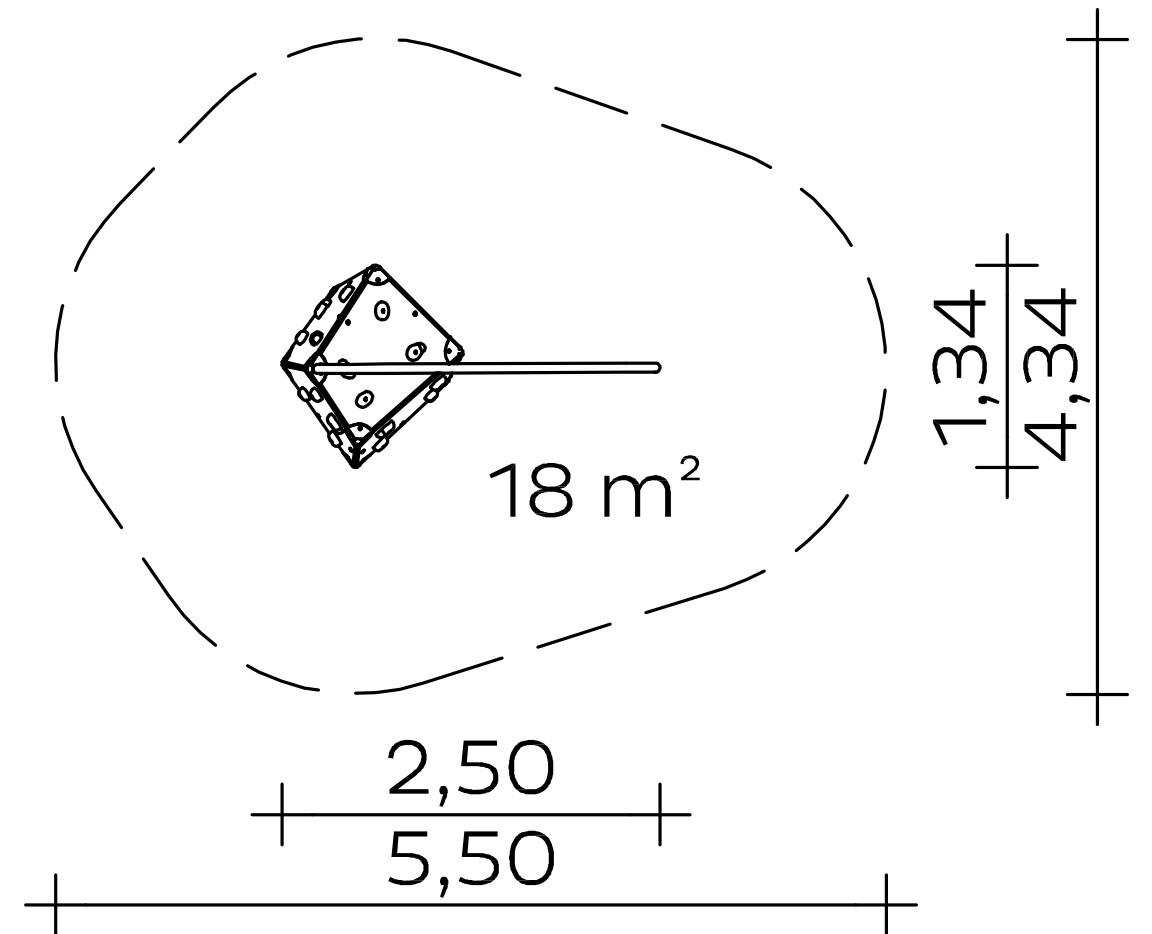

Base area: 2.50 x 1.34 m
Minimum space: 5.50 x 4.34 m
Impact area: 18 m²
Total height: 1.36 m
Free fall height: 1.36 m
Weight: 151 kg heaviest individual part
168 kg in total
1 x Climbing Rock
- Climbing cube made of highly weather-resistant, coloured HPL laminate panels, 20 mm
- Stainless steel corners
- Attached free climbing elements
- Clamping through in-situ foundations
Pipe Slide
– Welded construction from stainless steel tube Ø 60.3 mm
- Connection to Climbing Rock via stainless steel corner
- Clamping through in-situ foundation
Foundations (client-provided)
1 piece 0.93 x 1.00 x 0.30 m
1 piece 0.50 x 0.50 x 0.50 m
Concrete volume: 0.41 m³
Assembly time
2 fitters 1 hour each.
(without foundation)
Lifting gear required
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 056655000
This Kaiser & Kühne product enables:
