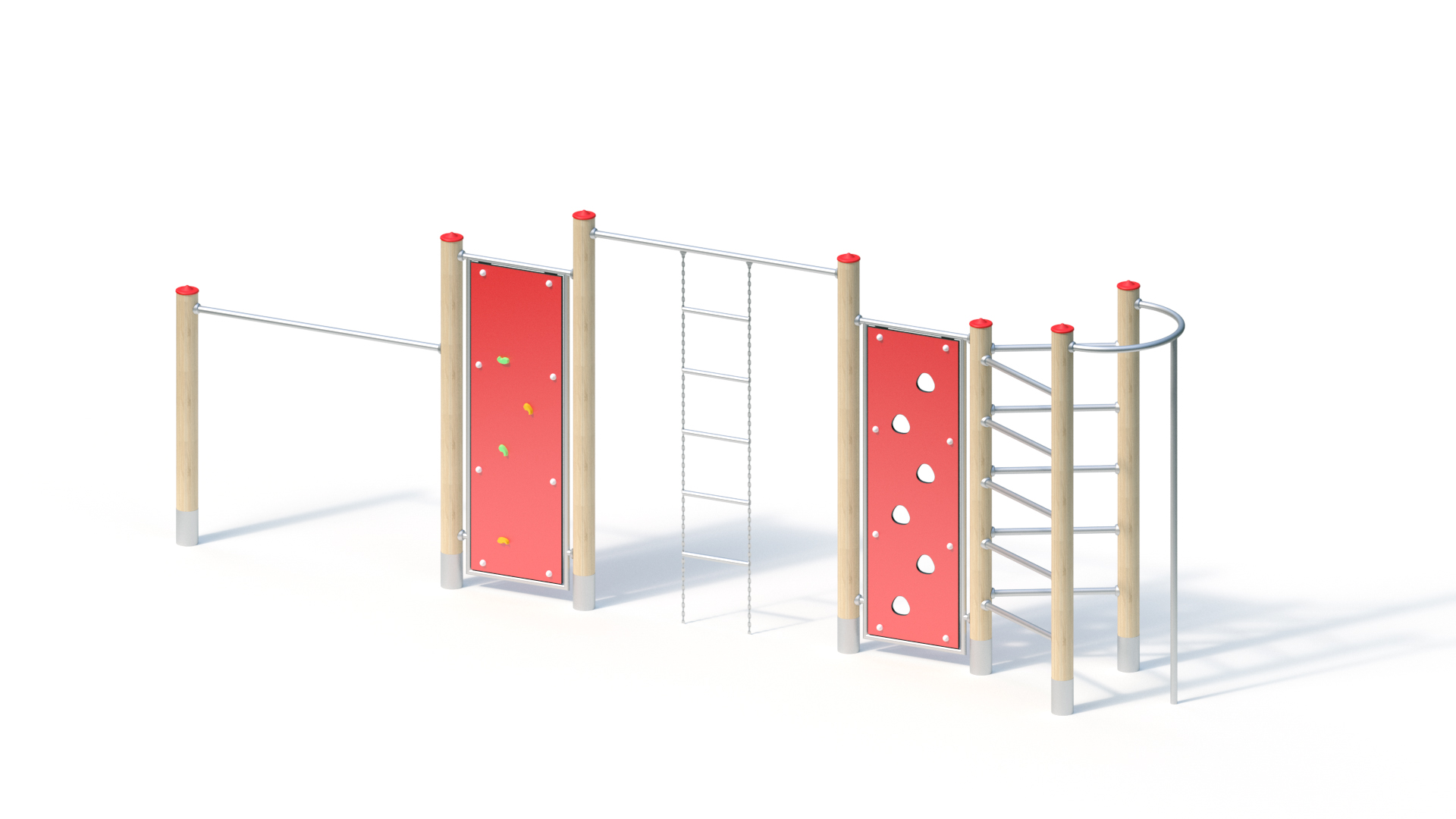

Climbing combination

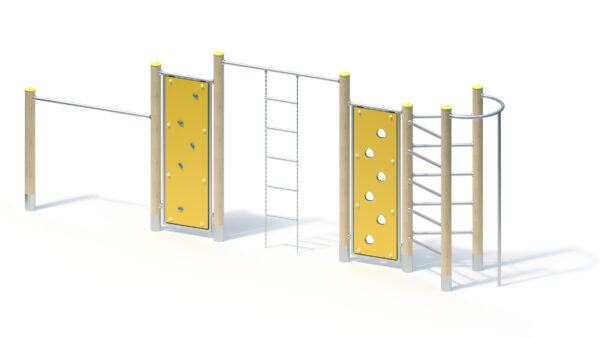

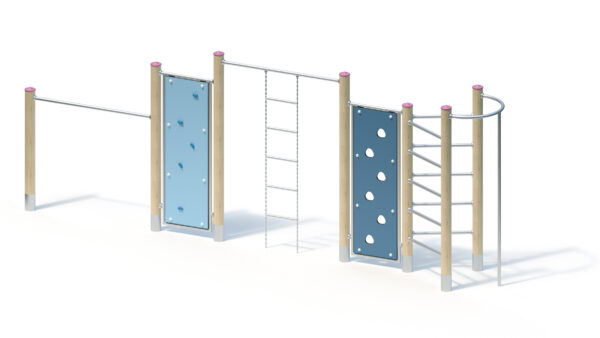

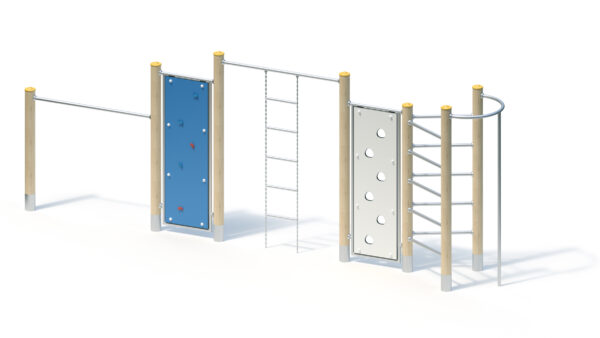

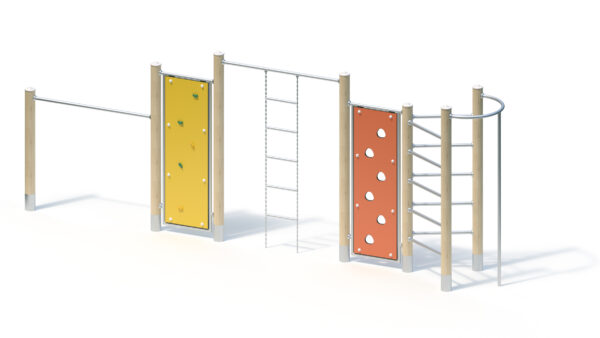

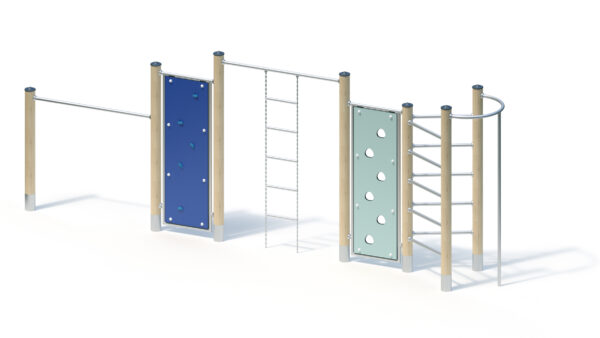

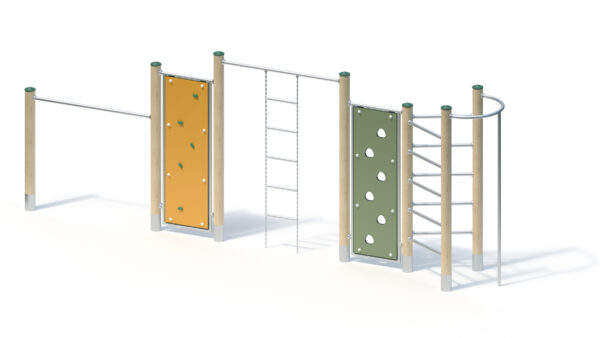

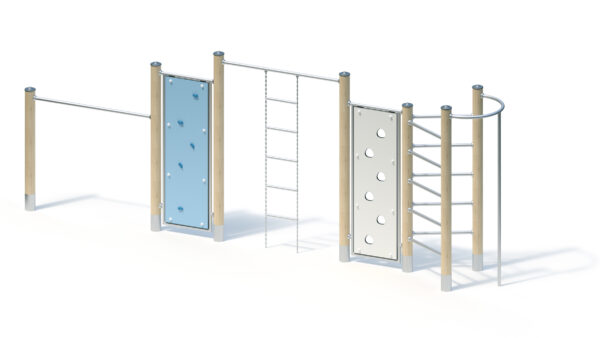

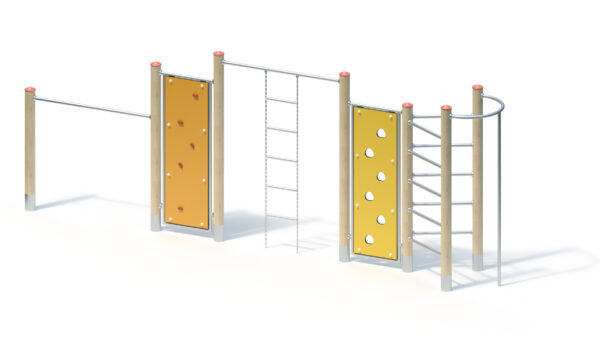

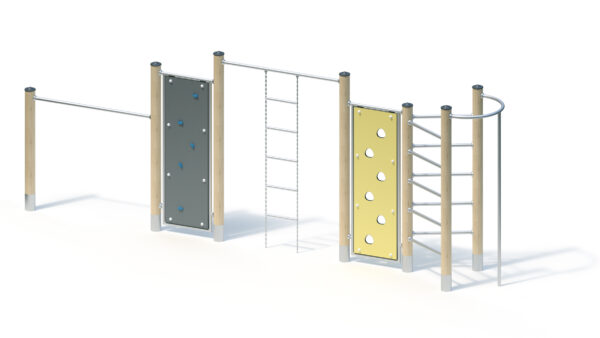

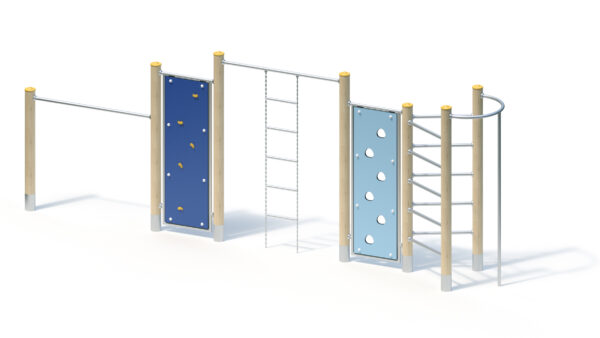

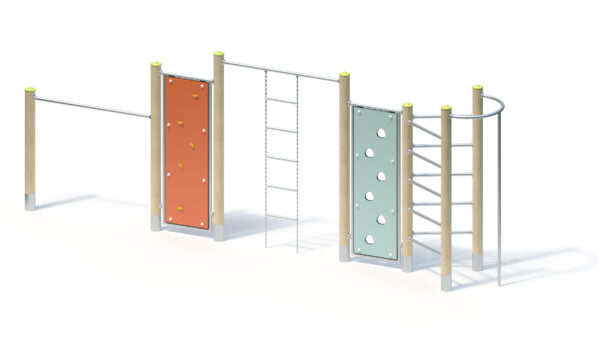

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 12 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Gerätelänge ? | 6,05 m |
|---|---|
| Gerätebreite ? | 0,95 m |
| Gerätehöhe ? | 2,30 m |
| Freie Fallhöhe ? | 2,17 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 350.00 kg |
| Schwerstes Einzelteil ? | 60.00 kg |
| Mindestraumlänge ? | 9,45 m |
| Mindestraumbreite ? | 4,75 m |
| Mindestraumhöhe ? | 2,30 m |
Assembly & Foundations
| Montagezeit ? | 5,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (1m x 0.4m x 0.4m) Quantity: 3 (0.4m x 0.4m x 0.6m) Quantity: 1x (0.3m x 0.3m x 0.4m) |
Product Downloads
Product description
Technical data

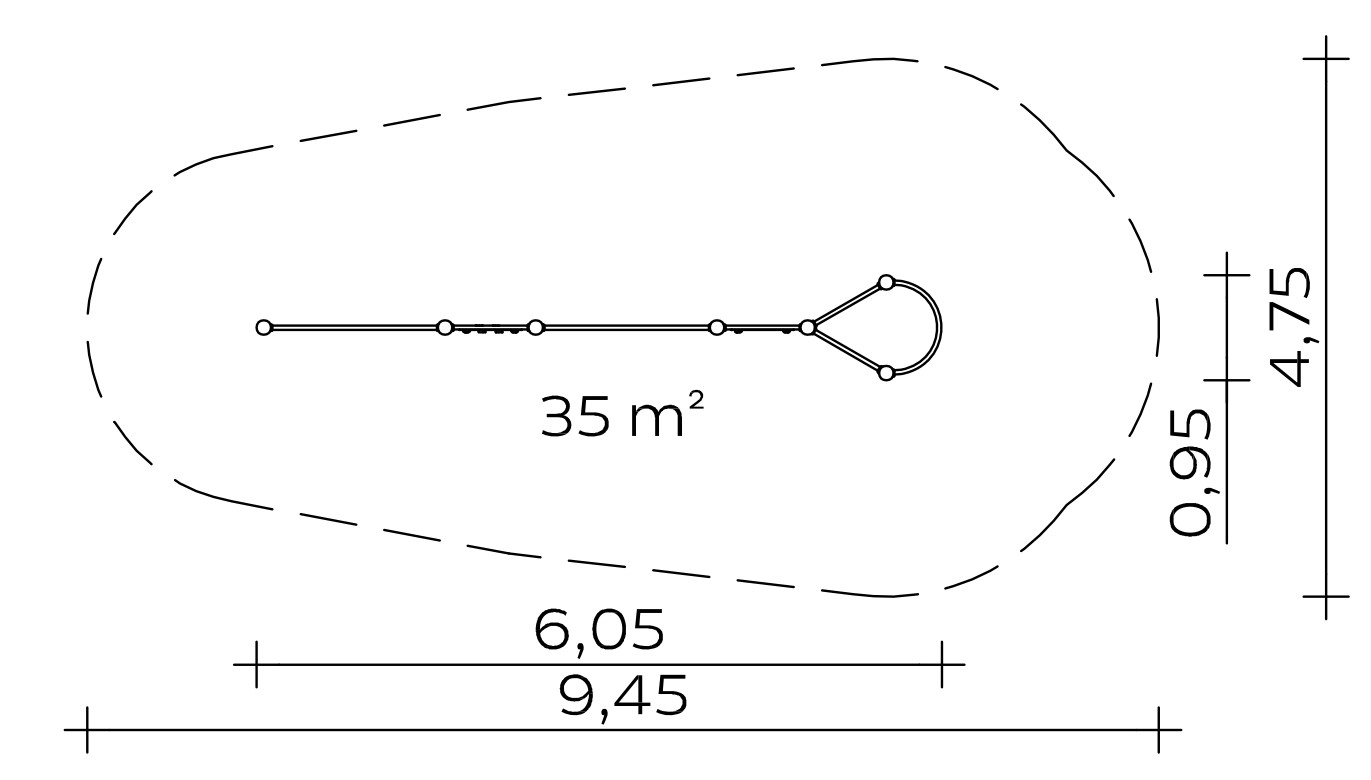

Total height: 2.30 m
Floor area: 0.95 x 6.05 m
Minimum space: 4.75 x 9.45 m (35 m²)
High bar height: 1.35 m
Weight: 60 kg heaviest individual part
350 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Tubular base made of stainless steel for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, torsion-resistant
- Climbing wall made of highly weather-resistant HPL laminate (red), 20 mm, stainless steel tube frame, with free climbing elements attached on both sides
- Chain ladder with stainless steel rungs
- Climbing wall made of highly weather-resistant HPL laminate (red), 20 mm, frame made of stainless steel tube, 6 climbing openings
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.60 m
4 pcs. 0.40 x 1.00 x 0.40 m
Concrete volume: 0.96 m³
Assembly time
2 fitters 5 hours each
(without foundation)
Free fall height
2,17 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities
Item number: 055414701
