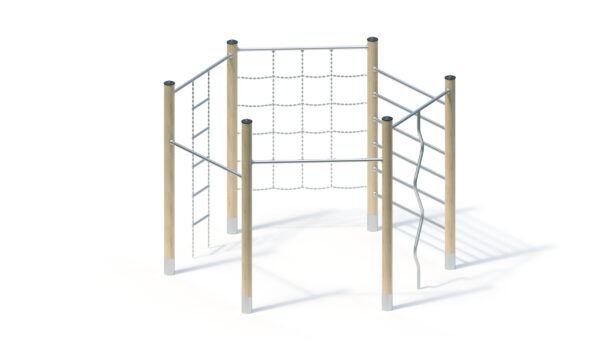

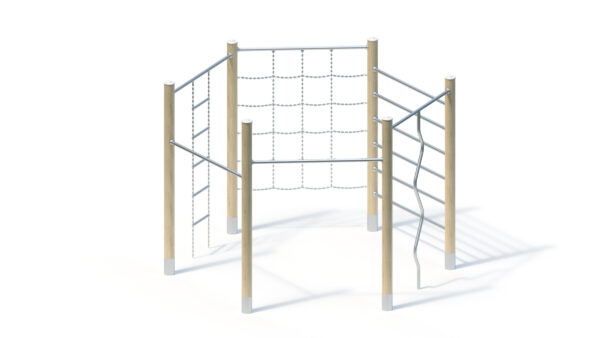

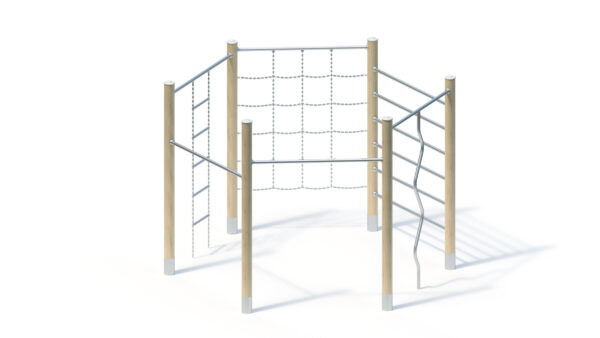

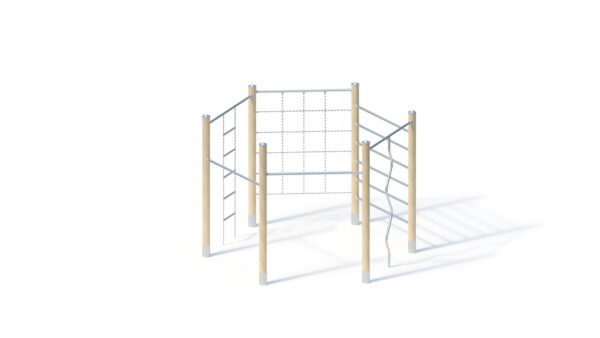

Hexagonal combination
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 14 people |
| Activities ? | Climbing, Physical activity |
Technical data
| Minimum space length ? | 7,04 m |
|---|---|
| Minimum space width ? | 6,71 m |
| Minimum space height ? | 2,33 m |
| Equipment length ? | 3,32 m |
| Equipment width ? | 2,89 m |
| Equipment height ? | 2,33 m |
| Free-fall height ? | 2,22 m |
| Platform heights | - |
| Total weight ? | 235.00 kg |
| Heaviest single part ? | 30.00 kg |
Assembly & Foundations
| Assembly time ? | 4,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 6 (0.4m x 0.4m x 0.4m) Quantity: 1x (0.3m x 0.3m x 0.4m) |
Product Downloads
Product description
Technical data

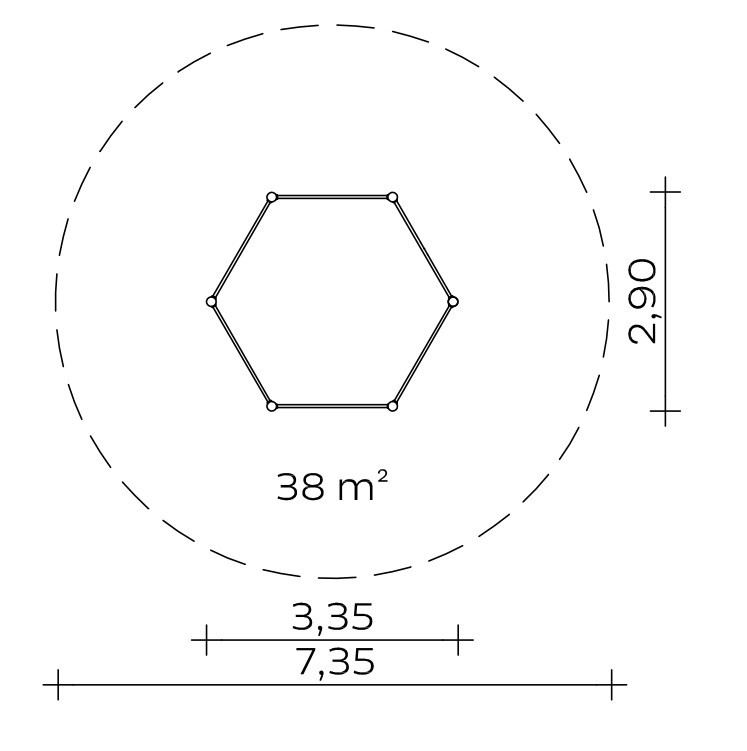

Floor area: 2.90 x 3.35 m
Minimum space: Ø 7.35 m (38 m²)
Total height: 2.35 m
High bar height: 1.60/1.80 m
Wall bar height: 1.95 m
Weight: 30 kg heaviest individual part
235 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, torsion-resistant
- Climbing pole and climbing rungs made of stainless steel tube, Ø 38 mm
- Chain ladder with stainless steel rungs.
- Chain mesh made of stainless steel chains on stainless steel crossbar
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.42 m³
Assembly time
2 fitters 4 hours each
(without foundation)
Free fall height
2,25 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities
Item number: 055360702
