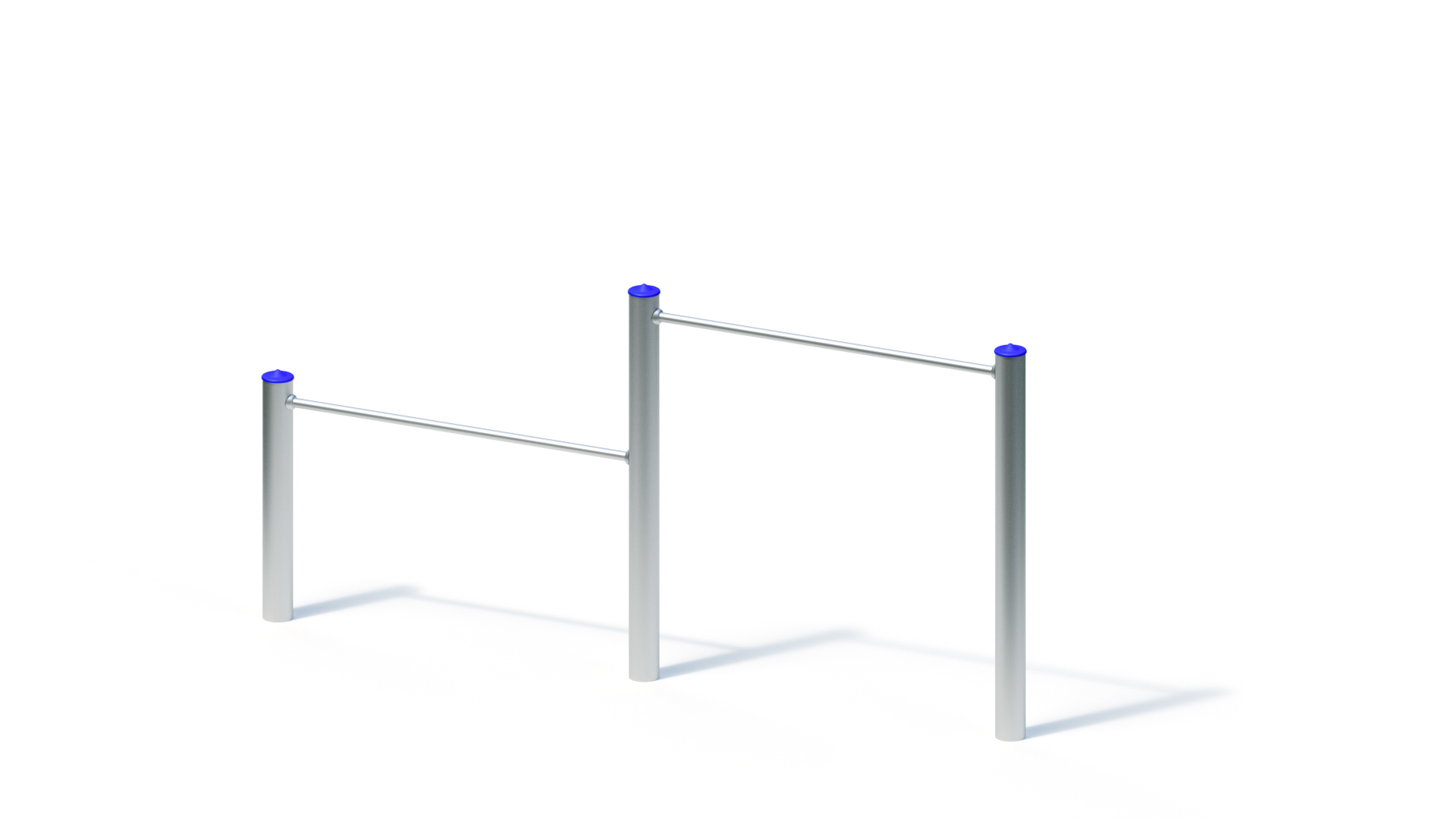

Chin-up-Bars (0,90/1,50)

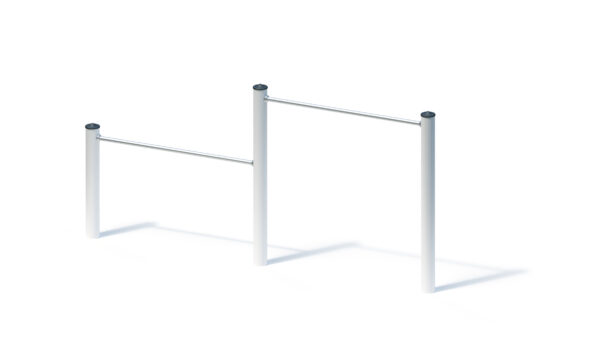

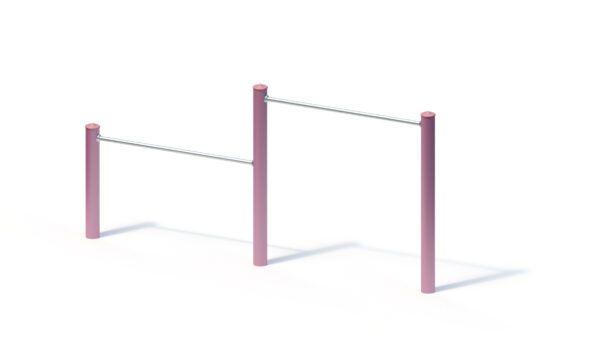

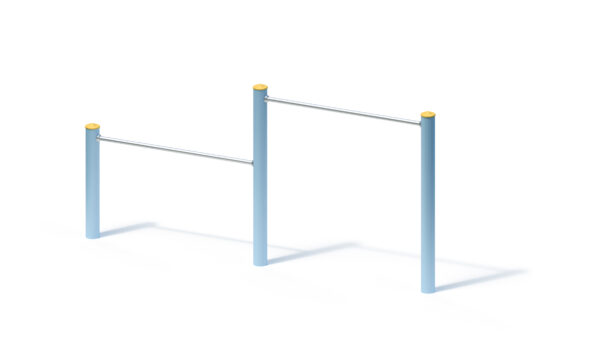

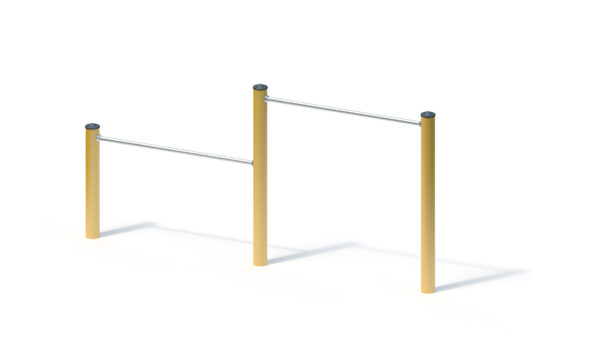

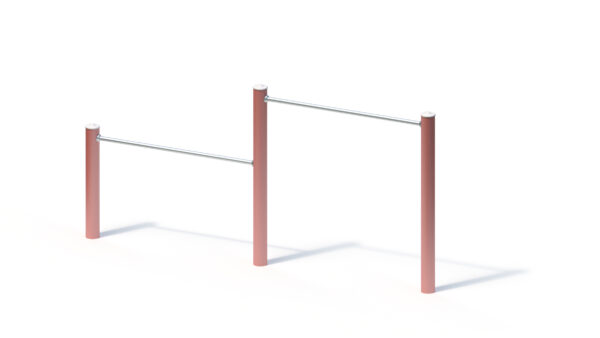

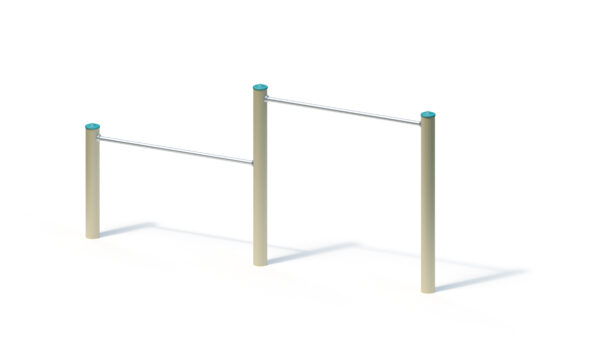

Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 4 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 3,35 m |
|---|---|
| Gerätebreite ? | 0,12 m |
| Gerätehöhe ? | 1,65 m |
| Freie Fallhöhe ? | 1,52 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 60.00 kg |
| Schwerstes Einzelteil ? | 20.00 kg |
| Mindestraumlänge ? | 6,35 m |
| Mindestraumbreite ? | 3,15 m |
| Mindestraumhöhe ? | 1,65 m |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 1 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 3 (0.6m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data
Length: 3.35 m

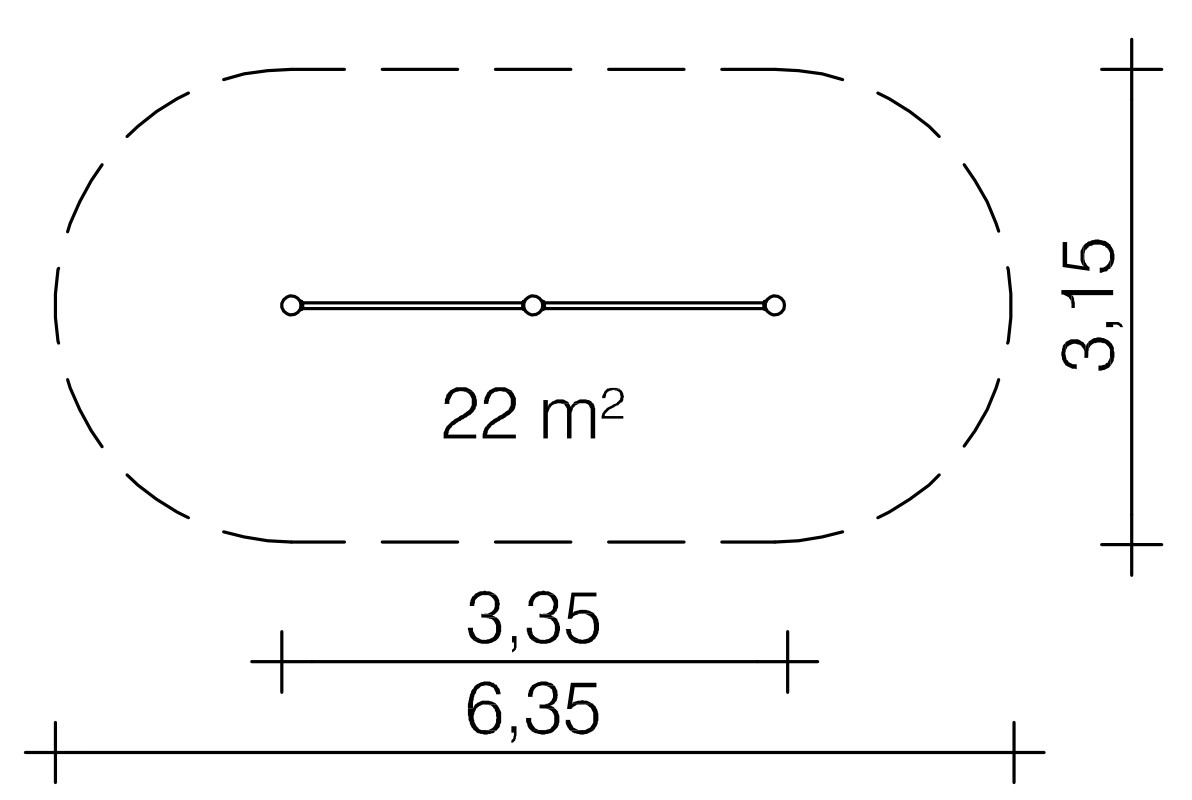

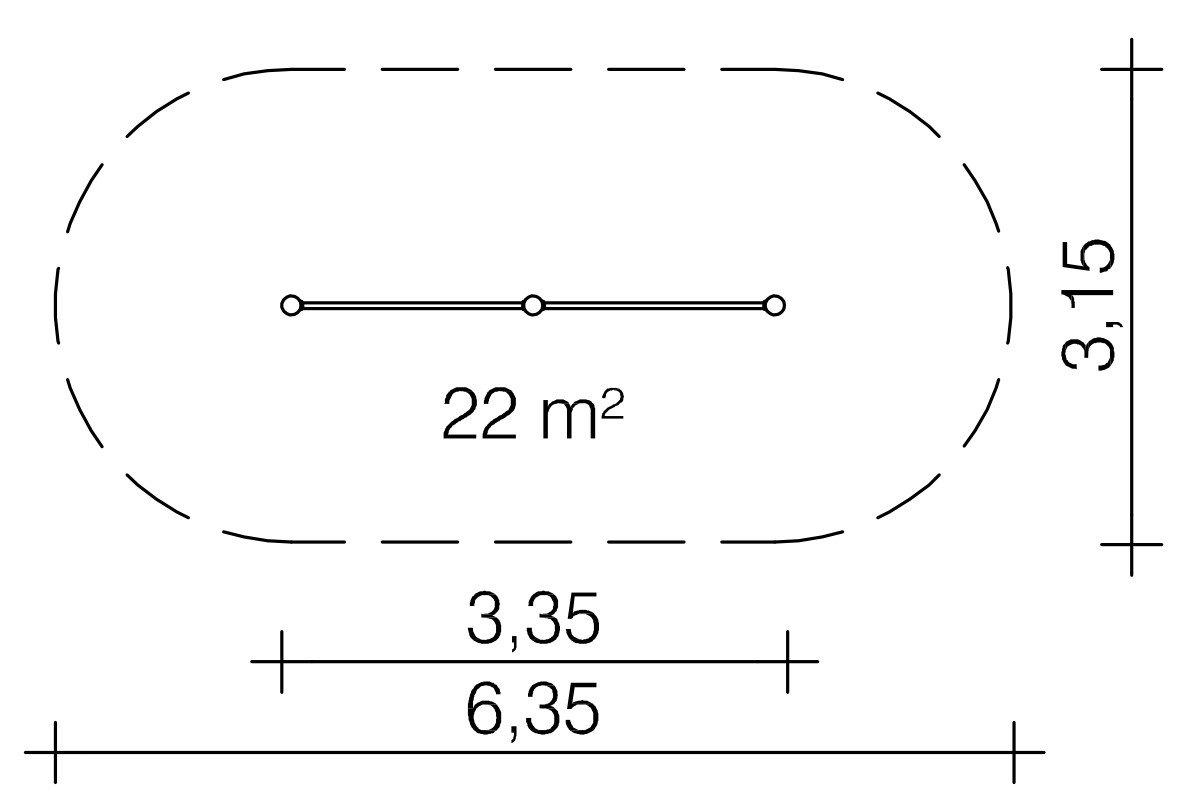

Minimum space: 6.35 x 3.15 m (22 m²)
Total height: 1.65 m
Horizontal bar height: 0.90 / 1.50 m
Weight: 20 kg heaviest individual part
60 kg in total
Support post
Support post made of stainless steel tube Ø 120 mm, wall thickness 3 mm, covered with non-detachable stainless steel post caps
Attachments
Horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel 1.4301
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
3 pcs. 0.50 x 0.60 x 0.50 m
Concrete volume: 0.45 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
1,52 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
sporting activities
Item number: 053215500
