Horizontal monkey bars (1,90)
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | - |
| Number of users ? | 4 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 6,07 m |
|---|---|
| Minimum space width ? | 4,47 m |
| Minimum space height ? | 2,01 m |
| Equipment length ? | 2,52 m |
| Equipment width ? | 0,92 m |
| Equipment height ? | 2,01 m |
| Free-fall height ? | 1,92 m |
| Platform heights | - |
| Total weight ? | 115.00 kg |
| Heaviest single part ? | 25.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (1.2m x 0.4m x 0.6m) |
Product Downloads
Product description
Technical data

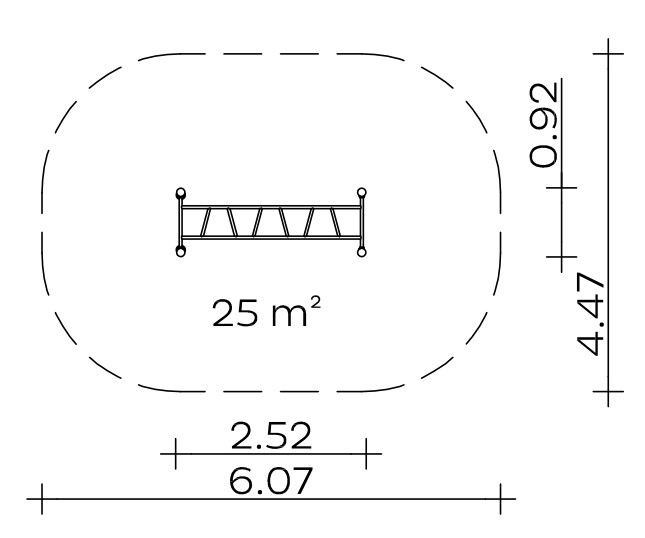

Base area: 2.52 x 0.92 m
Minimum space: 6.07 x 4.47 m (25 m²)
Total height: 2.01 m
Hanging ladder height: 1.90 m
Weight: 25 kg heaviest individual part
115 kg in total
Support post
Support post made of stainless steel tube Ø 114.3 mm, wall thickness 3 mm, with welded stainless steel cover caps.
Attachments
- Horizontal hanging ladder, made of stainless steel tube, Ø38 x 2.5/33.7 x 2 mm
- Stainless steel climbing aid
Metal components: Stainless steel 1.4301
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 units 0.40 x 1.20 x 0.60 m
Concrete volume: 0.58 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
1,92 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
sporting activities
Item number: 053182901
