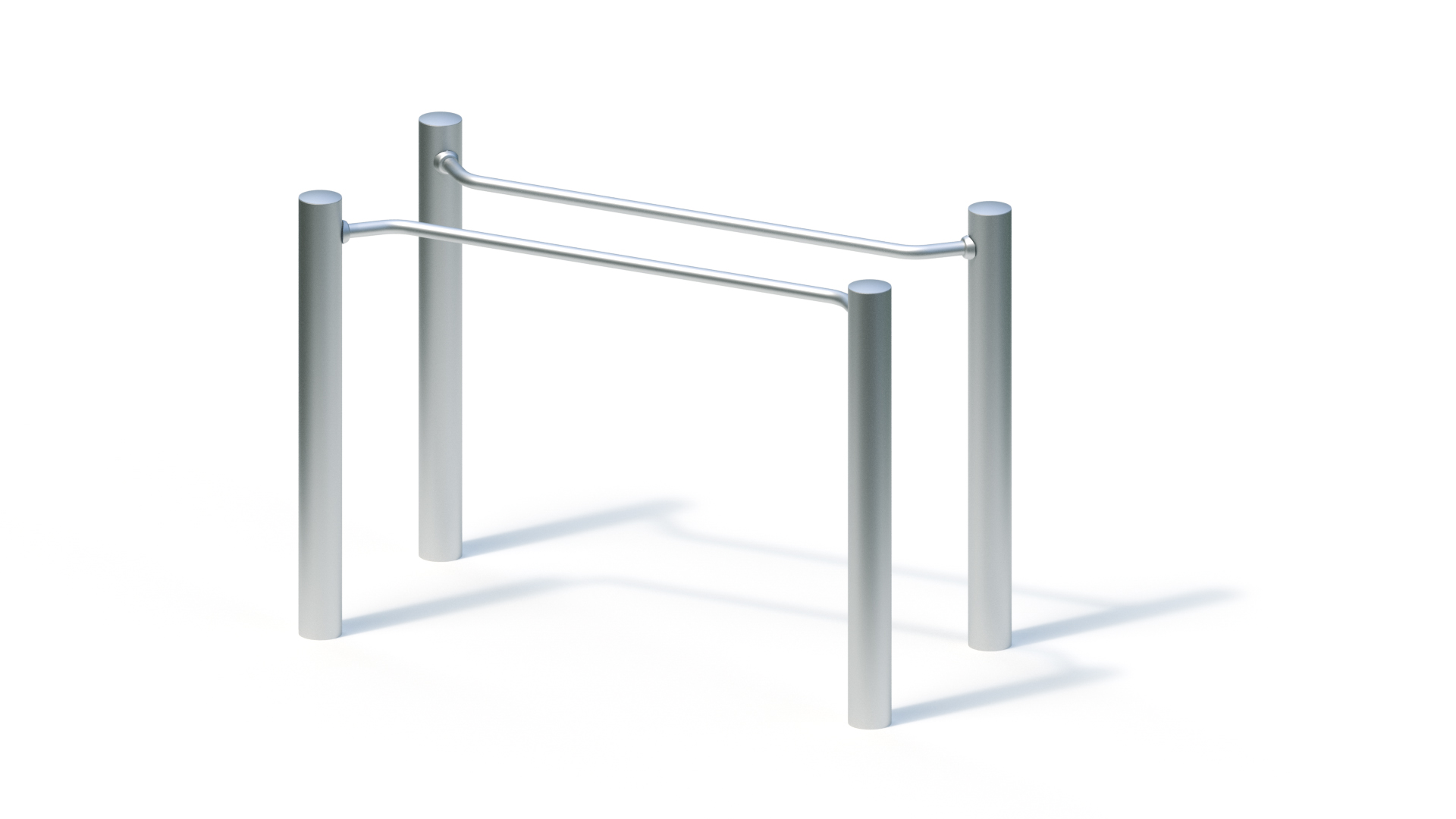

Parallel bars (1,10)
The most important information
| Age group ? | 8+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 1 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 1,75 m |
|---|---|
| Device width ? | 0,85 m |
| Device height ? | 1,25 m |
| Free fall height ? | 1,12 m |
| Platform heights | - |
| Total weight ? | 75.00 kg |
| Heaviest single item ? | 20.00 kg |
| Minimum room length ? | 4,75 m |
| Minimum room width ? | 3,85 m |
| Minimum room height ? | 1,25 m |
Assembly & Foundations
| Assembly time ? | 75,0 h |
|---|---|
| Number of fitters ? | 20 persons |
| Lifting gear required | - |
| Foundations | 050x050x050 |
Product Downloads
Product description
Technical data

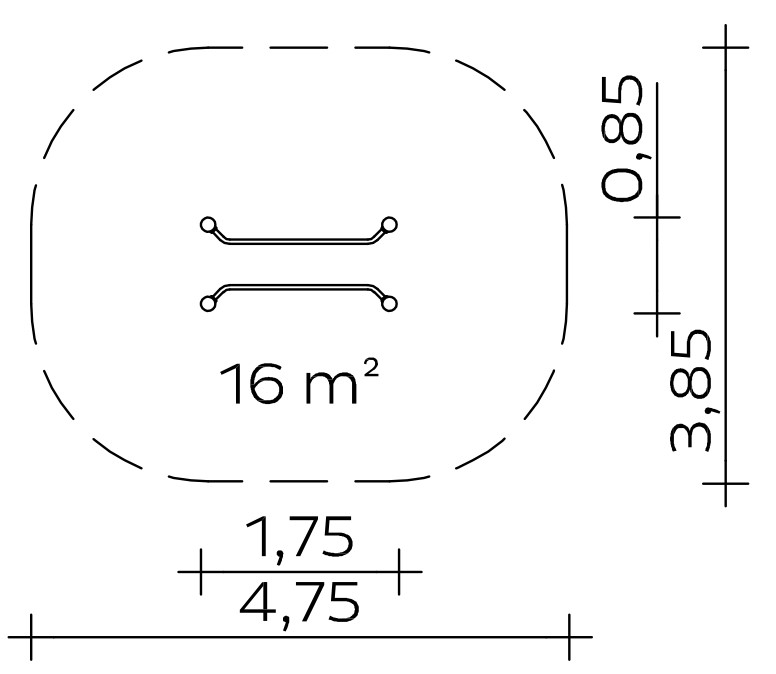

Base area: 1.75 x 0.85 m
Minimum space: 4.75 x 3.85 m (16 m²)
Total height: 1.25 m
Bar height: 1.10 m
Weight: 20 kg heaviest individual part
75 kg in total
Support post
Support post made of stainless steel tube Ø 114.3 mm, wall thickness 3 mm, with welded stainless steel post caps.
Attachments
Bar rails made of stainless steel tube, Ø 38 x 2.5 mm, torsion-resistant
Clear width between bar rails 0.36 m
Metal components: Stainless steel 1.4301
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 pcs. 0.50 x 0.50 x 0.50 m
Concrete quantity: 0.50 m³
Assembly time
1 fitter per 1 hour
(without foundation)
Free fall height
1,12 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
sporting activities
Item number: 053164900
