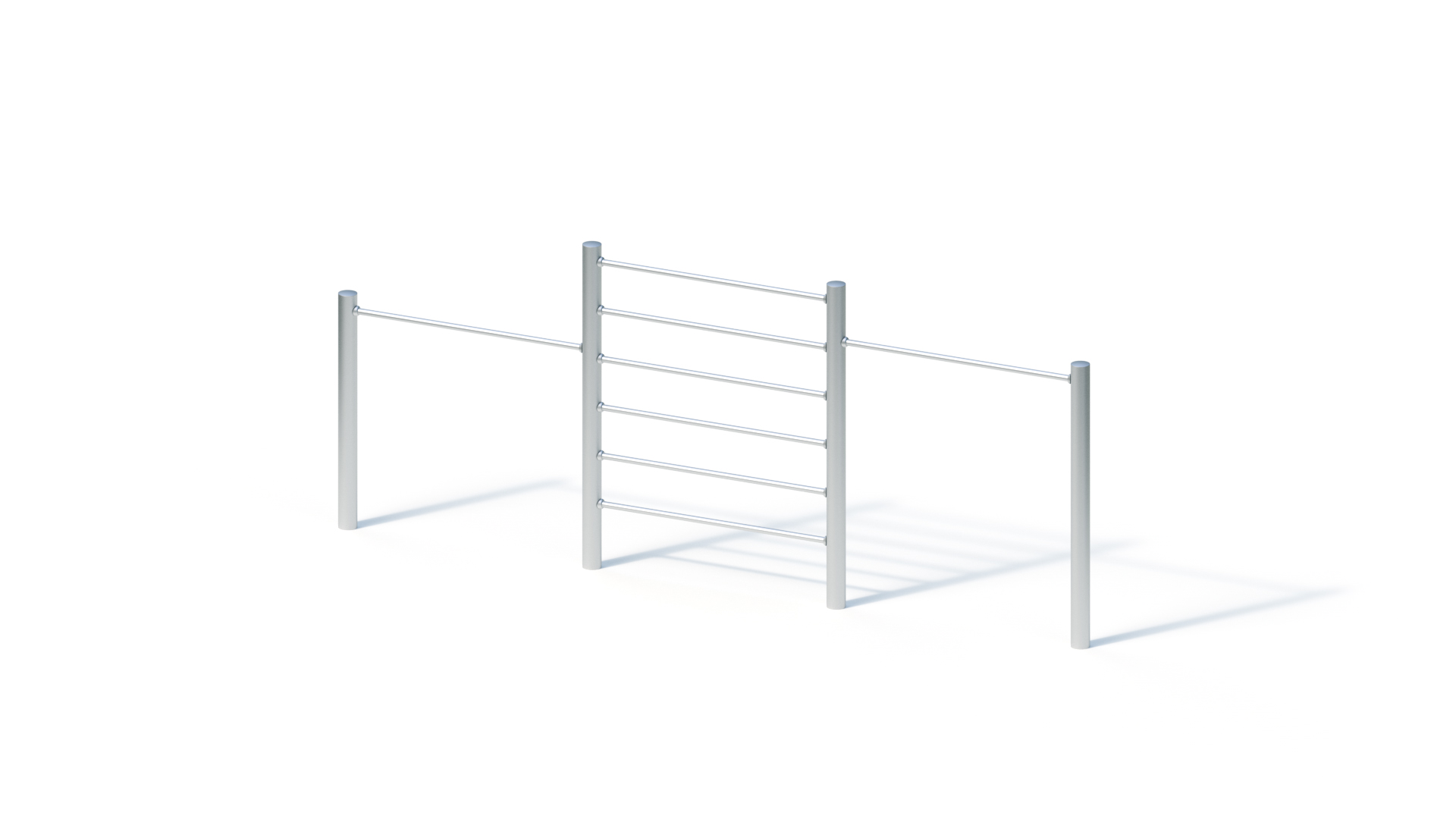

Gymnastic wall bars
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 8 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Gerätelänge ? | 4,95 m |
|---|---|
| Gerätebreite ? | 3,70 m |
| Gerätehöhe ? | 2,05 m |
| Freie Fallhöhe ? | 1,92 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 115.00 kg |
| Schwerstes Einzelteil ? | 25.00 kg |
| Mindestraumlänge ? | 8,05 m |
| Mindestraumbreite ? | 3,70 m |
| Mindestraumhöhe ? | 2,05 m |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.5m x 0.5m x 0.6m) |
Product Downloads
Product description
Technical data
Length: 4.95 m

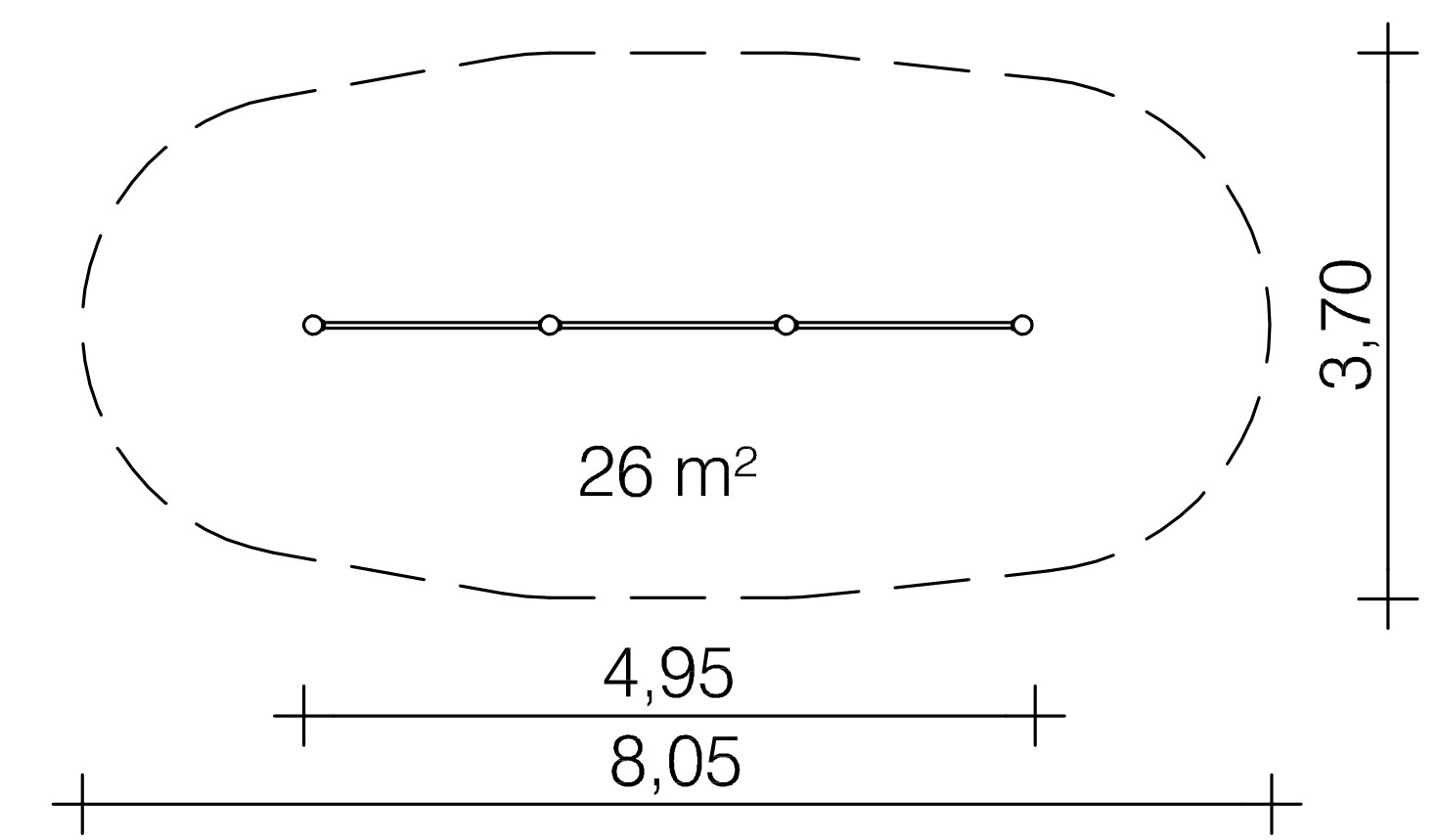

Minimum space: 8.05 x 3.70 m (26 m²)
Total height: 2.05 m
High bar height: 1.35 / 1.65 m
Wall bar height: 1.90 m
Weight: 25 kg heaviest individual part
115 kg in total
Support post
Support post made of stainless steel tube Ø 114 mm, wall thickness 3 mm, with welded stainless steel caps
Attachments
Climbing rungs made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel 1.4301
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 units 0.50 x 0.50 x 0.60 m
Concrete volume: 0.60 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
1,92 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities
Item number: 053150900
