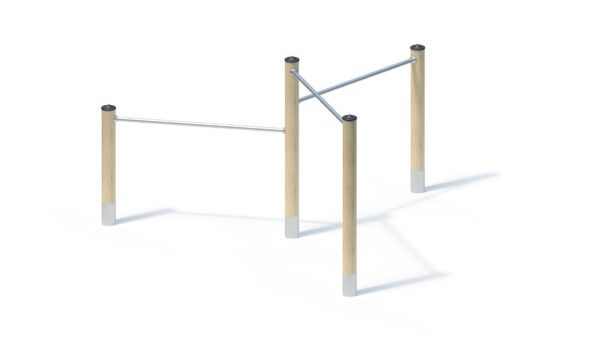

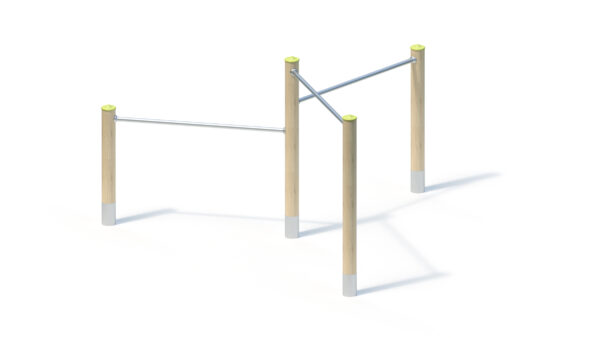

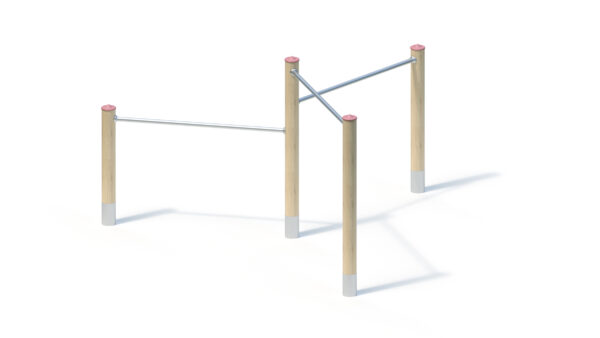

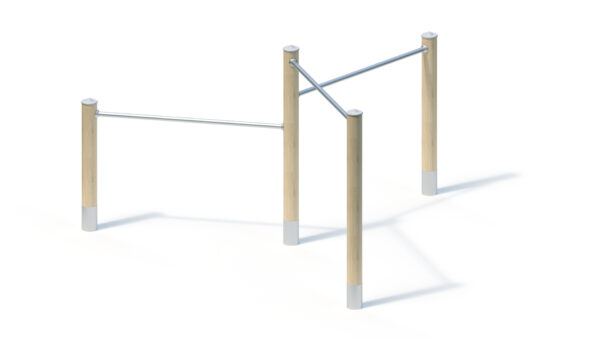

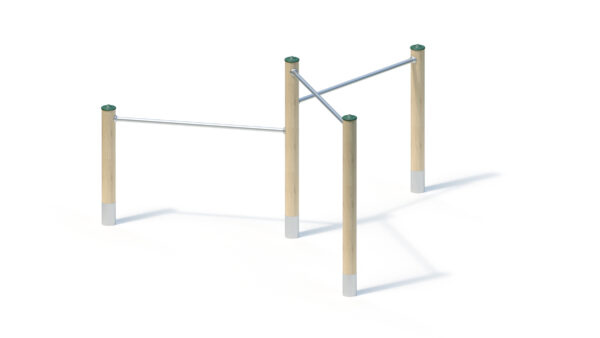

Triple chin-up bars, angled at 120°
Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 6 persons |
| Activities ? | Climbing, Physical activity |
Technical data
| Device length ? | 2,90 m |
|---|---|
| Device width ? | 2,55 m |
| Device height ? | 1,65 m |
| Free fall height ? | 1,52 m |
| Platform heights | - |
| Total weight ? | 85.00 kg |
| Heaviest single item ? | 20.00 kg |
| Minimum room length ? | 5,90 m |
| Minimum room width ? | 5,55 m |
| Minimum room height ? | 1,65 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 persons |
| Lifting gear required | - |
| Foundations | 060x050x050 |
Product Downloads
Product description
Technical data
Floor area: 2.90 x 2.55 m
Minimum space: 5.90 x 5.55 m (25 m²)
Total height: 1.65 m
Horizontal bar height: 0.90 / 1.20 / 1.50 m
Weight: 20 kg heaviest individual part
85 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Horizontal bars
Horizontal bars made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel 1.4301
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 units 0.50 x 0.60 x 0.50 m
Concrete volume: 0.60 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
1,52 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
sporting activities
Item number: 053137701
