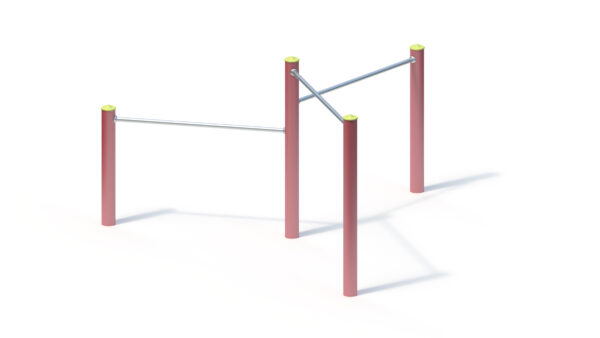

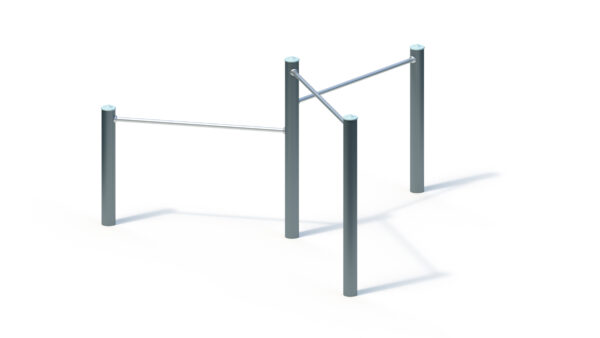

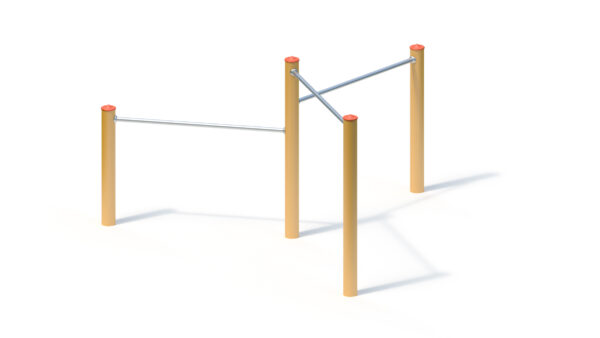

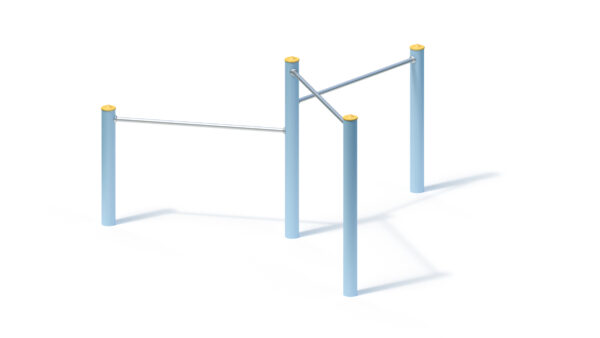

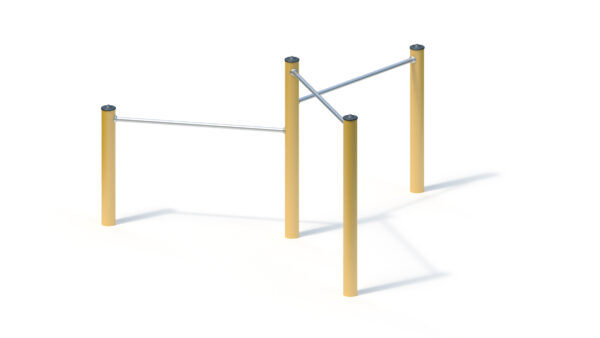

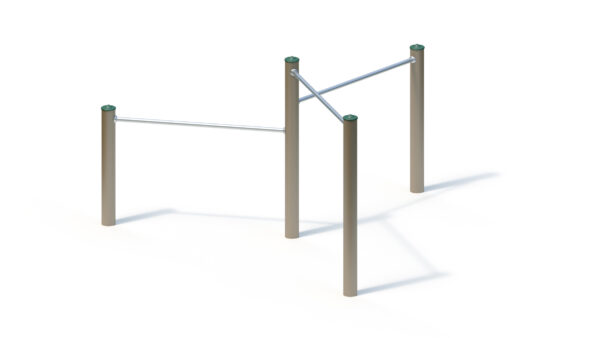

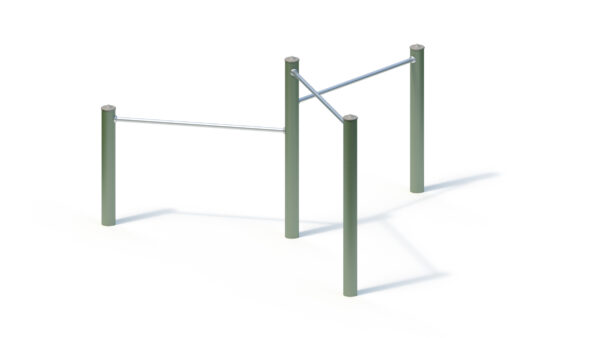

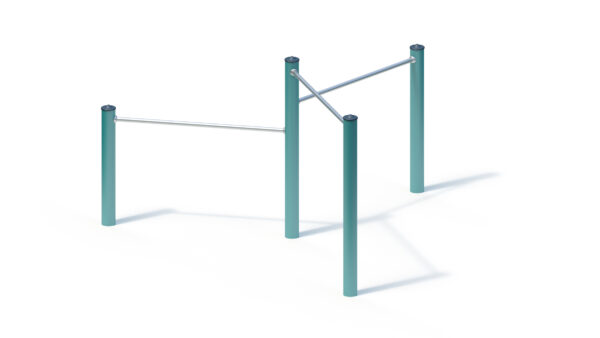

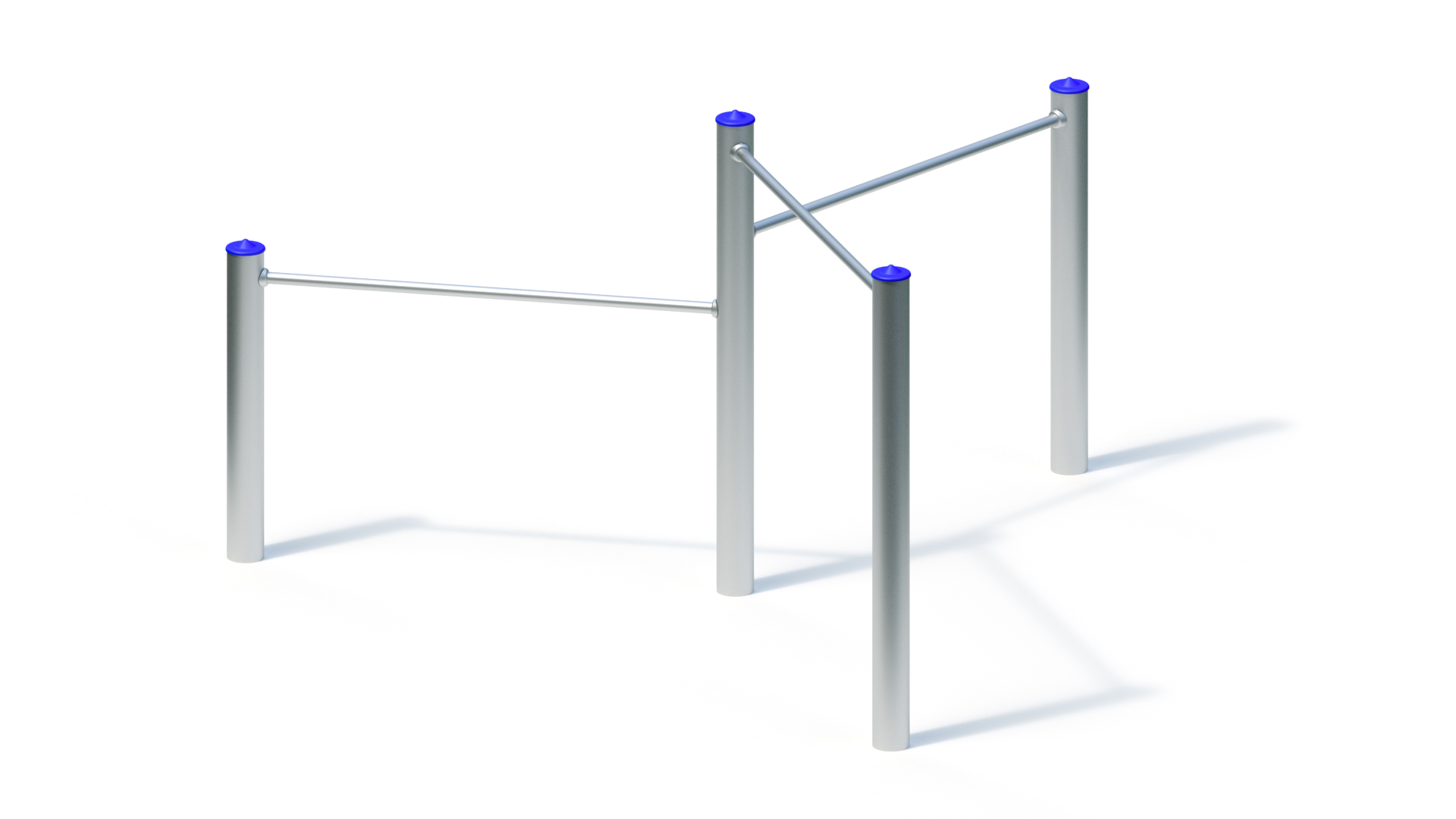

Triple chin-up bars, angled at 120°

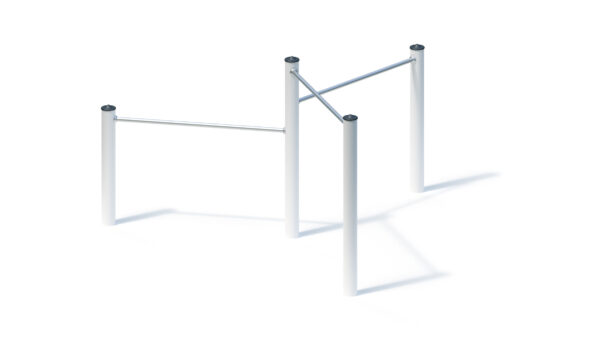

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 6 people |
| Activities ? | Climbing, Physical activity |
Technical data
| Minimum space length ? | 5,90 m |
|---|---|
| Minimum space width ? | 5,55 m |
| Minimum space height ? | 1,65 m |
| Equipment length ? | 2,90 m |
| Equipment width ? | 2,55 m |
| Equipment height ? | 1,65 m |
| Free-fall height ? | 1,52 m |
| Platform heights | - |
| Total weight ? | 85.00 kg |
| Heaviest single part ? | 20.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 person |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.5m x 0.5m x 0.6m) |
Product Downloads
Product description
Technical data
Floor area: 2.90 x 2.55 m
Minimum space: 5.90 x 5.55 m (25 m²)
Total height: 1.65 m
Horizontal bar height: 0.95 / 1.20 / 1.50 m
Weight: 20 kg heaviest individual part
85 kg in total
Support post
Support post made of stainless steel tube Ø 120 mm, wall thickness 3 mm, covered with non-detachable stainless steel post caps
Horizontal bars
Horizontal bars made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel 1.4301
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 units 0.50 x 0.60 x 0.50 m
Concrete volume: 0.60 m³
Assembly time
1 fitter per 1 hour
(without foundation)
Free fall height
1,52 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
sporting activities
Item number: 053137501
