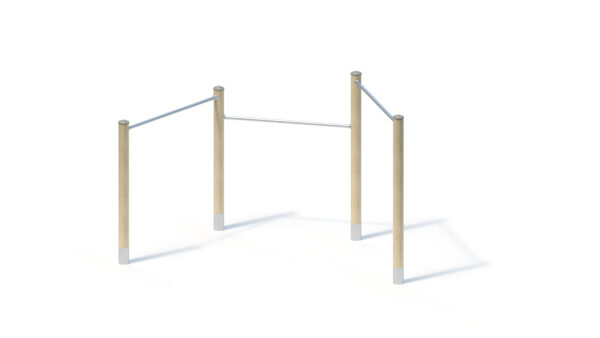

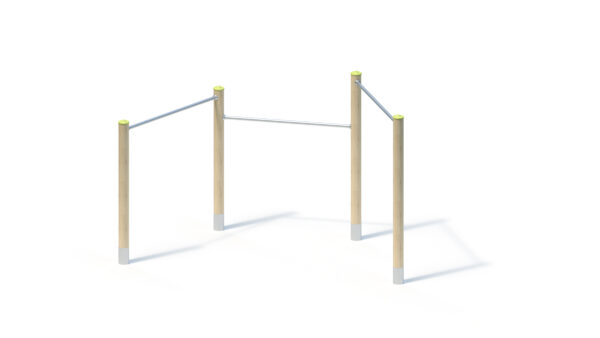

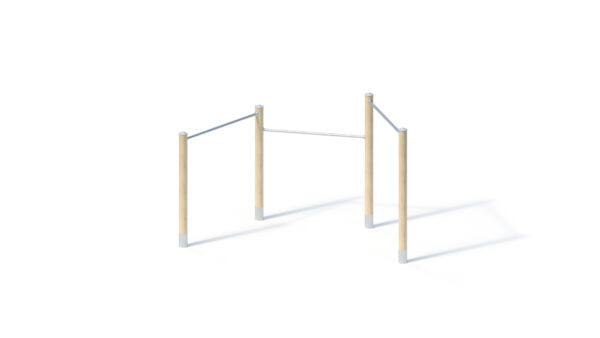

Triple chin-up bars, angled at 60°
Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 6 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Gerätelänge ? | 3,35 m |
|---|---|
| Gerätebreite ? | 1,55 m |
| Gerätehöhe ? | 2,05 m |
| Freie Fallhöhe ? | 1,92 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 100.00 kg |
| Schwerstes Einzelteil ? | 25.00 kg |
| Mindestraumlänge ? | 6,70 m |
| Mindestraumbreite ? | 5,10 m |
| Mindestraumhöhe ? | 2,05 m |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | - |
Product Downloads
Product description
Technical data

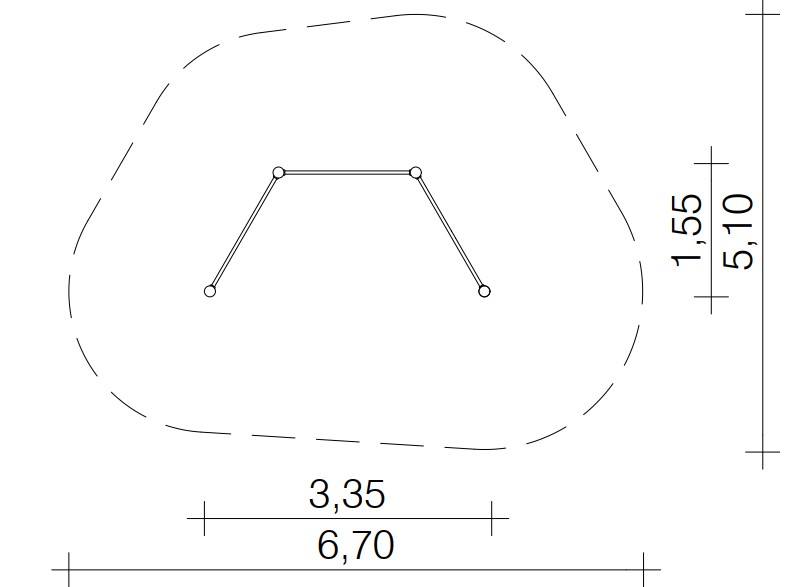

Floor area: 3.35 x 1.55 m
Minimum space: 6.70 x 5.10 m (27 m²)
Total height: 2.05 m
High bar height: 1.60 / 1.35 / 1.92 m
Weight: 25 kg heaviest individual part
100 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Horizontal bars
Horizontal bars made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel 1.4301
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 units 0.50 x 0.60 x 0.50 m
Concrete volume: 0.60 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
1,92 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
sporting activities
Item number: 053127701
