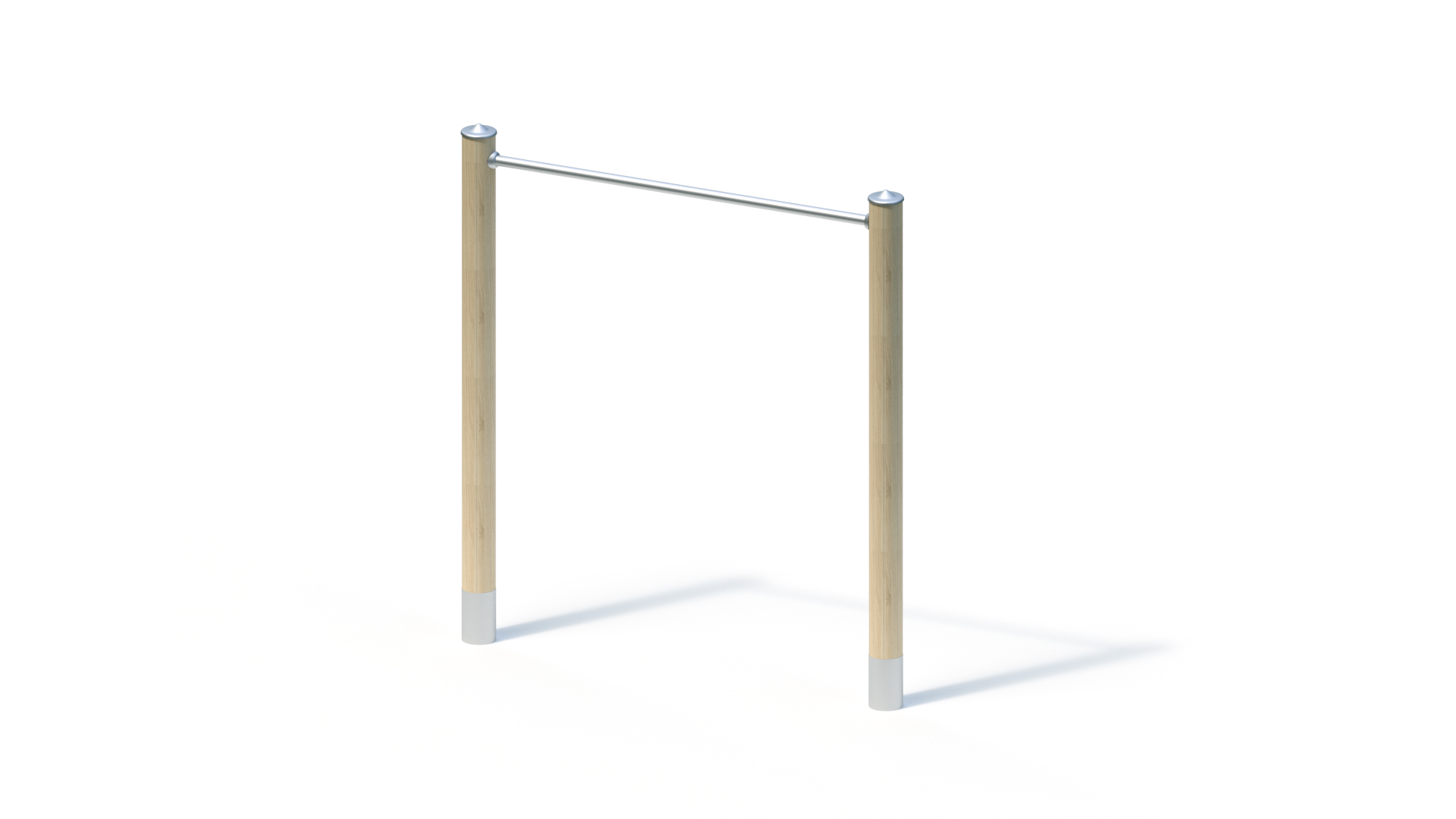

Chin-up bar (1,80)

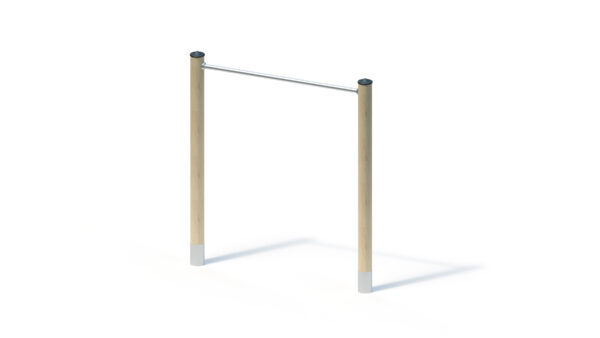

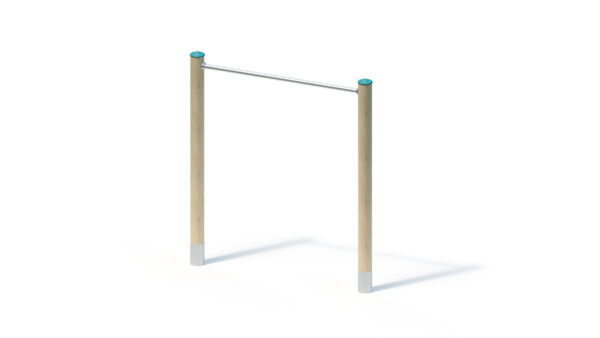

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 2 Personen |
| Aktivitäten ? | Physical activity, Physical activity |
Technical data
| Gerätelänge ? | 1,75 m |
|---|---|
| Gerätebreite ? | 0,00 m |
| Gerätehöhe ? | 1,95 m |
| Freie Fallhöhe ? | 1,82 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 60.00 kg |
| Schwerstes Einzelteil ? | 25.00 kg |
| Mindestraumlänge ? | 5,15 m |
| Mindestraumbreite ? | 3,55 m |
| Mindestraumhöhe ? | 1,95 m |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 1 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (0.6m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data
Length: 1.75 m

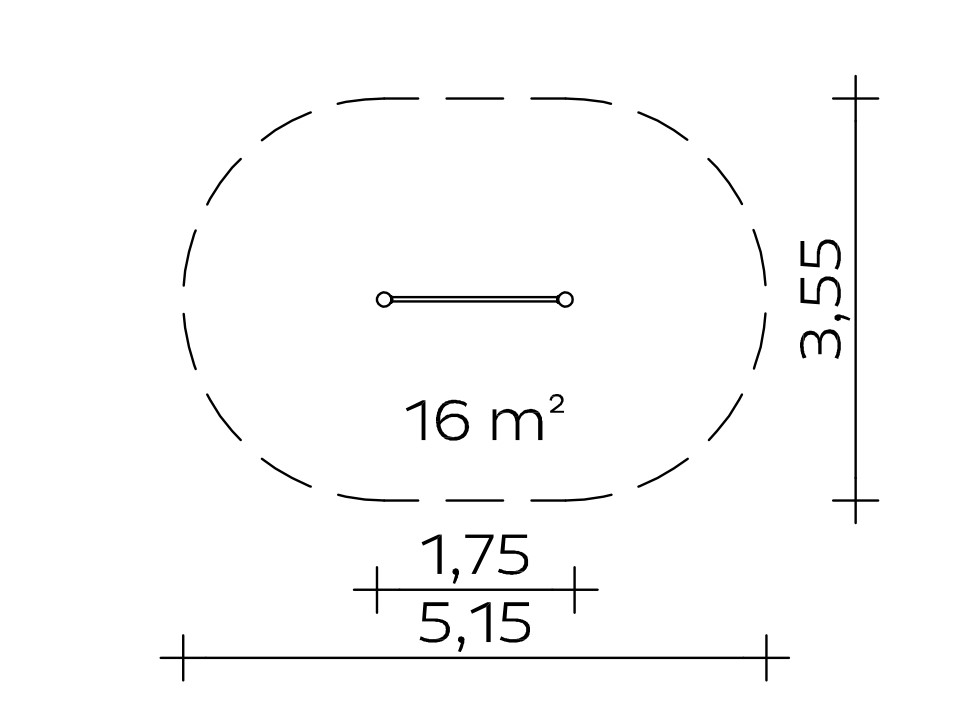

Minimum space: 5.15 x 3.55 m (16 m²)
Total height: 1.95 m
High bar height: 1.80 m
Weight: 25 kg heaviest individual part
60 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel 1.4301
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
2 pcs. 0.50 x 0.60 x 0.50 m
Concrete quantity: 0.30 m³
Assembly time
1 fitter per 0.5 hours
(without foundation)
Free fall height
1,82 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
sporting activities
Item number: 053118700
