Trampoline belt
The most important information
:
;
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 6 people |
| Activities ? | Physical activity |
Technical data
:
;

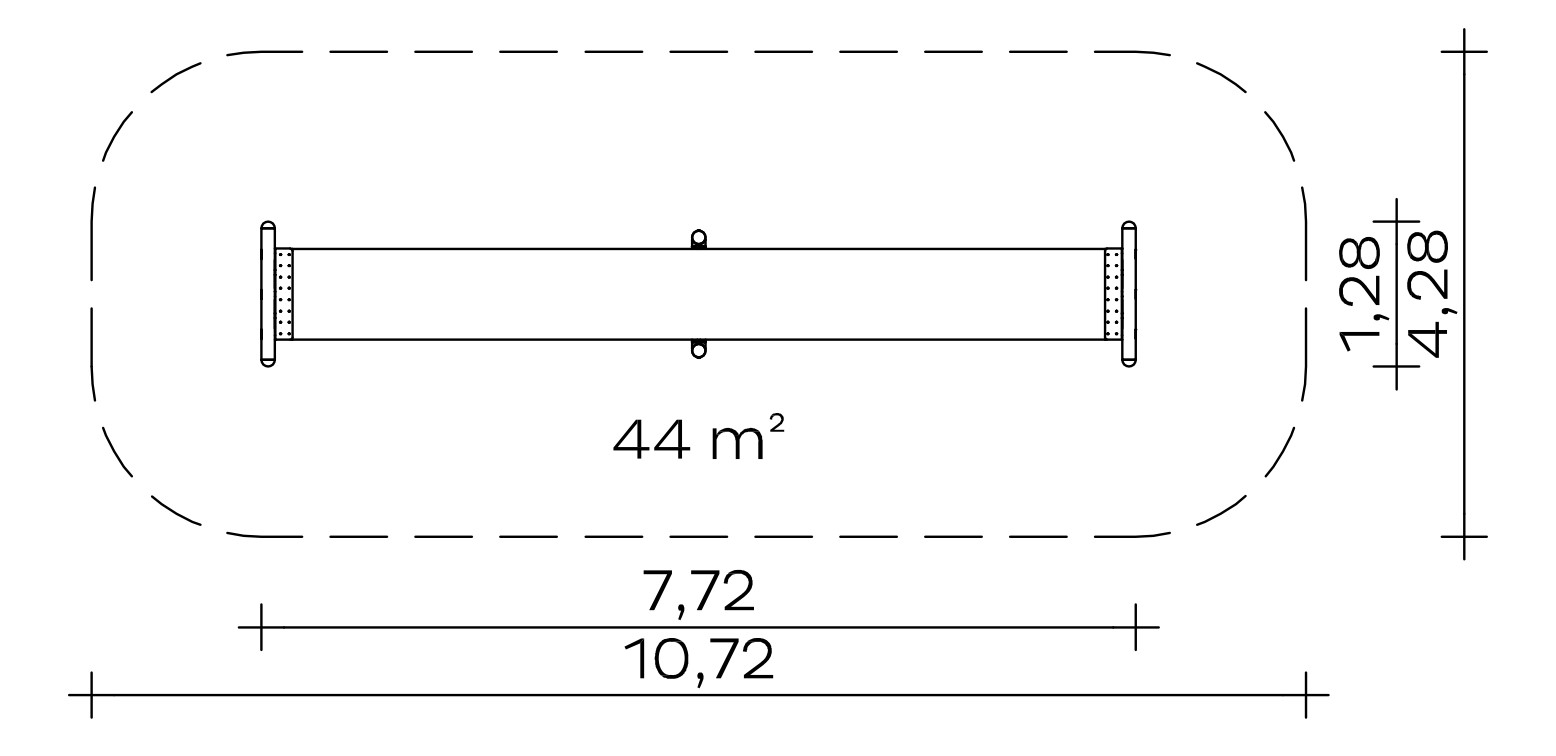

| Minimum space length ? | 10,72 m |
|---|---|
| Minimum space width ? | 4,28 m |
| Minimum space height ? | 2,06 m |
| Equipment length ? | 7,72 m |
| Equipment width ? | 1,28 m |
| Equipment height ? | 2,06 m |
| Free-fall height ? | 0,70 m |
| Platform heights | - |
| Total weight ? | 215.00 kg |
| Heaviest single part ? | 105.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 3 (1.4m x 1m x 0.5m) |
Product Downloads
:
;
Product description
:
;
Technical data
Total height: 2.06 m
Floor area: 1.28 x 7.72 m
Minimum space: 4.28 x 10.72 m (44 m²)
Weight: 105 kg heaviest individual part
210 kg in total
- Webbing: fabric webbing (black), with fabric insert and solid rubber edges
- Strap holder: stainless steel construction
Foundations (client-provided)
3 pcs. 1.00 x 1.40 x 0.50 m
Concrete volume: 2.10 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
0,70 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities
Item number: 046650000
This Kaiser & Kühne product enables:
