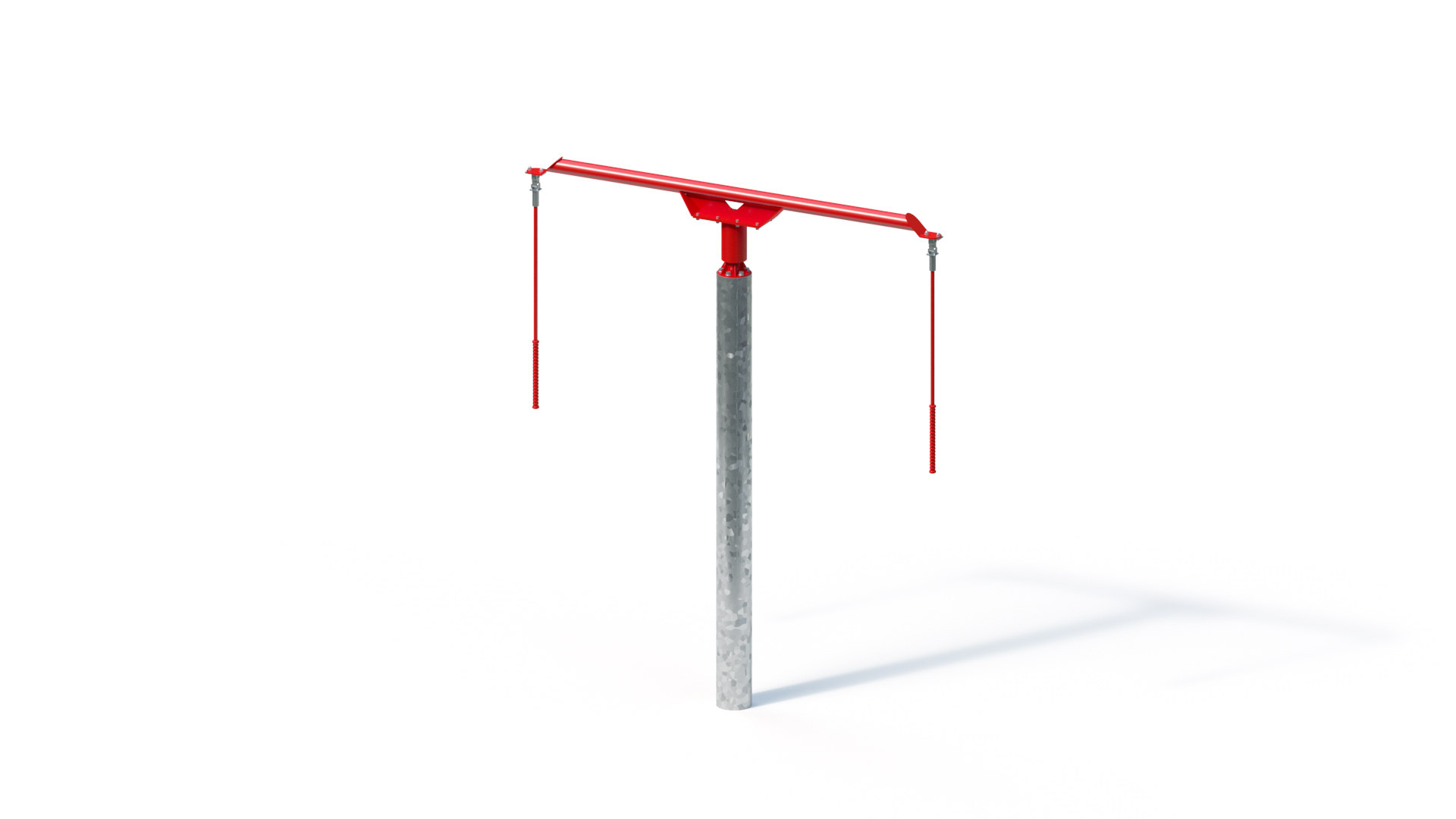

Rotating swing
The most important information
| Age group ? | 8+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 2 people |
| Activities ? | Physical activity, Swinging |
Technical data
| Minimum space length ? | 9,80 m |
|---|---|
| Minimum space width ? | 9,80 m |
| Minimum space height ? | 3,09 m |
| Equipment length ? | 2,50 m |
| Equipment width ? | 0,20 m |
| Equipment height ? | 3,09 m |
| Free-fall height ? | 1,75 m |
| Platform heights | - |
| Total weight ? | 210.00 kg |
| Heaviest single part ? | 150.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1x (1m x 1m x 0.8m) |
Product Downloads
Product description
Technical data

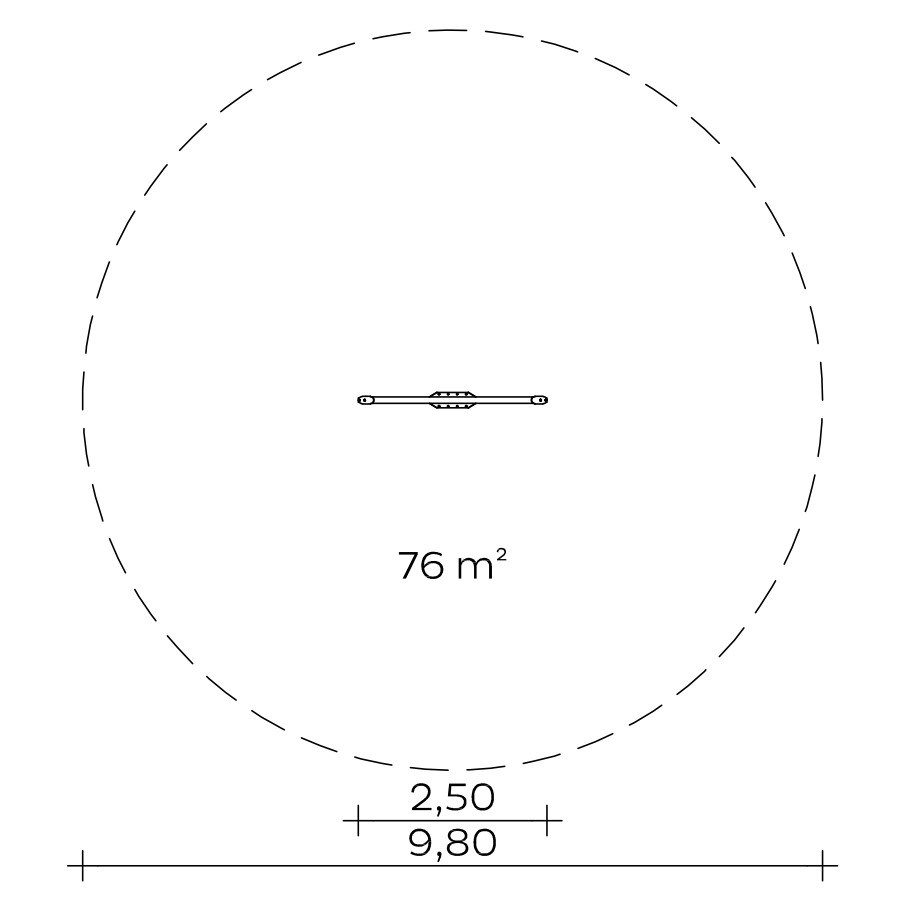

Base area: 0.20 x 2.50 m
Minimum space: Ø 9.80 m (76 m²)
Impact area: 76 m²
Total height: 3.09 m
Weight: 150 kg heaviest individual part
210 kg in total
- Tubular steel upright, hot-dip galvanised, with base plate
- Circular support, hot-dip galvanised steel, additionally powder-coated in colour and stove-enamelled
- Rotary mechanism: axle with multiple roller bearings in a dirt-protected, non-intrusive bearing housing
- Stainless steel universal joints with ball-bearing swivels
- Pendulum: Herkules rope Ø 22 mm, on stainless steel chain with thermally pressed-on, flexible rubber handle
Foundation (on site)
1 piece 1.00 x 1.00 x 0.80 m
Concrete volume: 0.80 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,75 m
Suitable for
Children aged 10 and over,
public playgrounds etc.,
Movement activities.
Item number: 044520002
