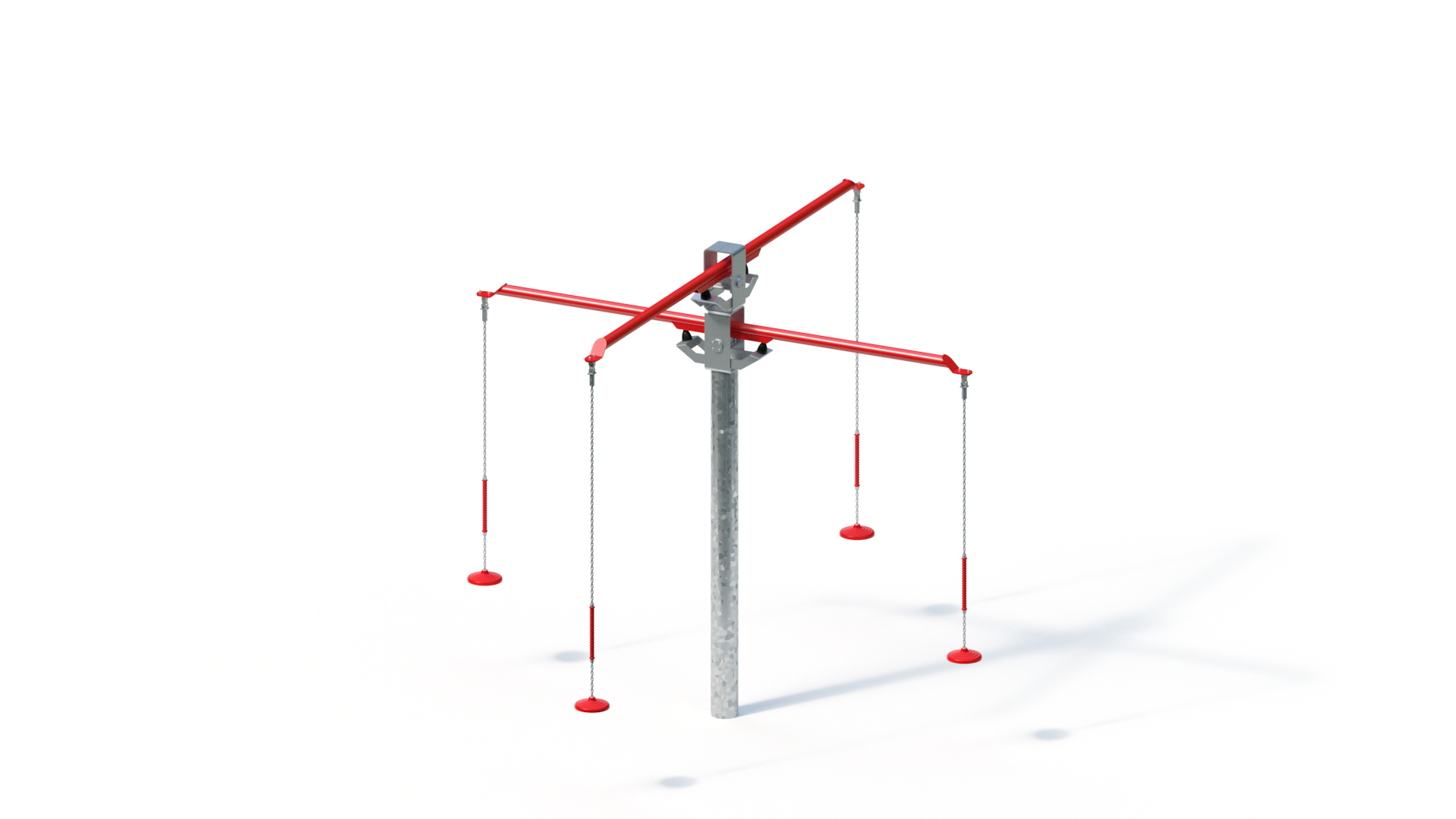

Cross scale teeter totter
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 5 persons |
| Activities ? | Physical activity, Swinging |
Technical data
| Device length ? | 4,30 m |
|---|---|
| Device width ? | 3,90 m |
| Device height ? | 3,50 m |
| Free fall height ? | 1,40 m |
| Platform heights | - |
| Total weight ? | 335.00 kg |
| Heaviest single item ? | 195.00 kg |
| Minimum room length ? | 9,05 m |
| Minimum room width ? | 8,35 m |
| Minimum room height ? | 3,50 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 100x100x080 |
Product Downloads
Product description
Technical data

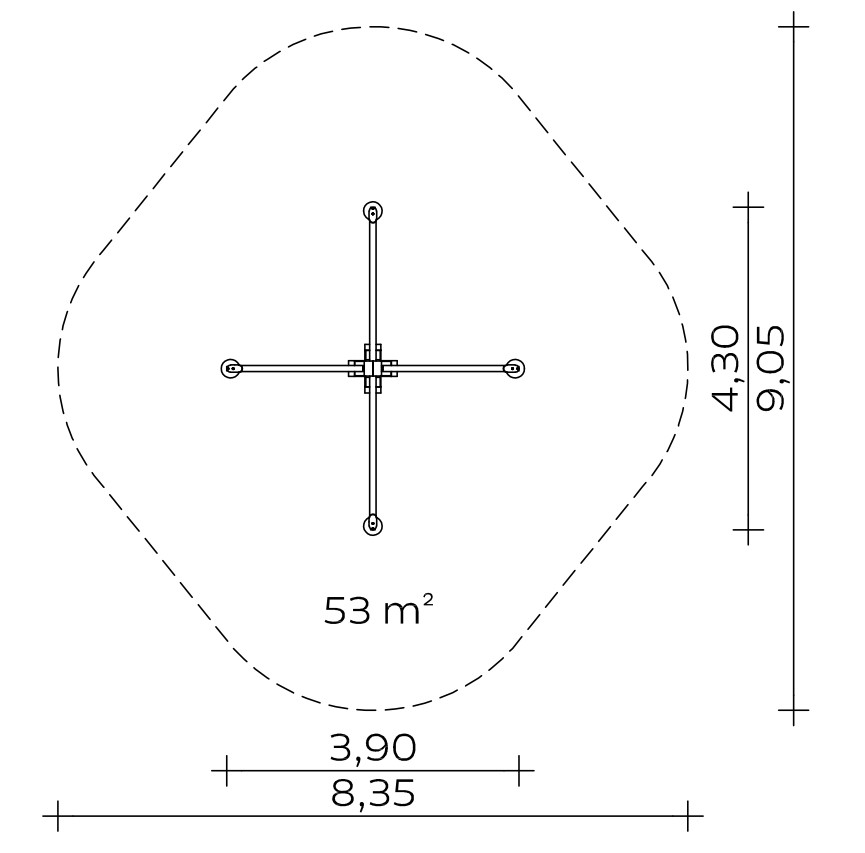

Floor area: 3.90 x 4.30 m
Minimum space: 8.35 x 9.05 m (53 m²)
Total height: 3.50 m
Weight: 195 kg heaviest individual part
355 kg in total
- Support post made of tubular steel Ø 193.7 x 5.6 mm, hot-dip galvanised, with base plate.
- Rocking mechanism with vibration-damping rubber spring bearing. Additionally shock-absorbed by parabolic rubber buffers.
- Pendulum scale support, hot-dip galvanised steel, additionally powder-coated
- Stainless steel universal joints with ball-bearing swivels.
- Safety pendulum seats with thermally moulded, flexible rubber handle on stainless steel chains.
Foundation (on site)
1 piece 1.00 x 1.00 x 0.80 m
Concrete volume: 0.80 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
1,40 m
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Movement activities.
Item number: 044384002
