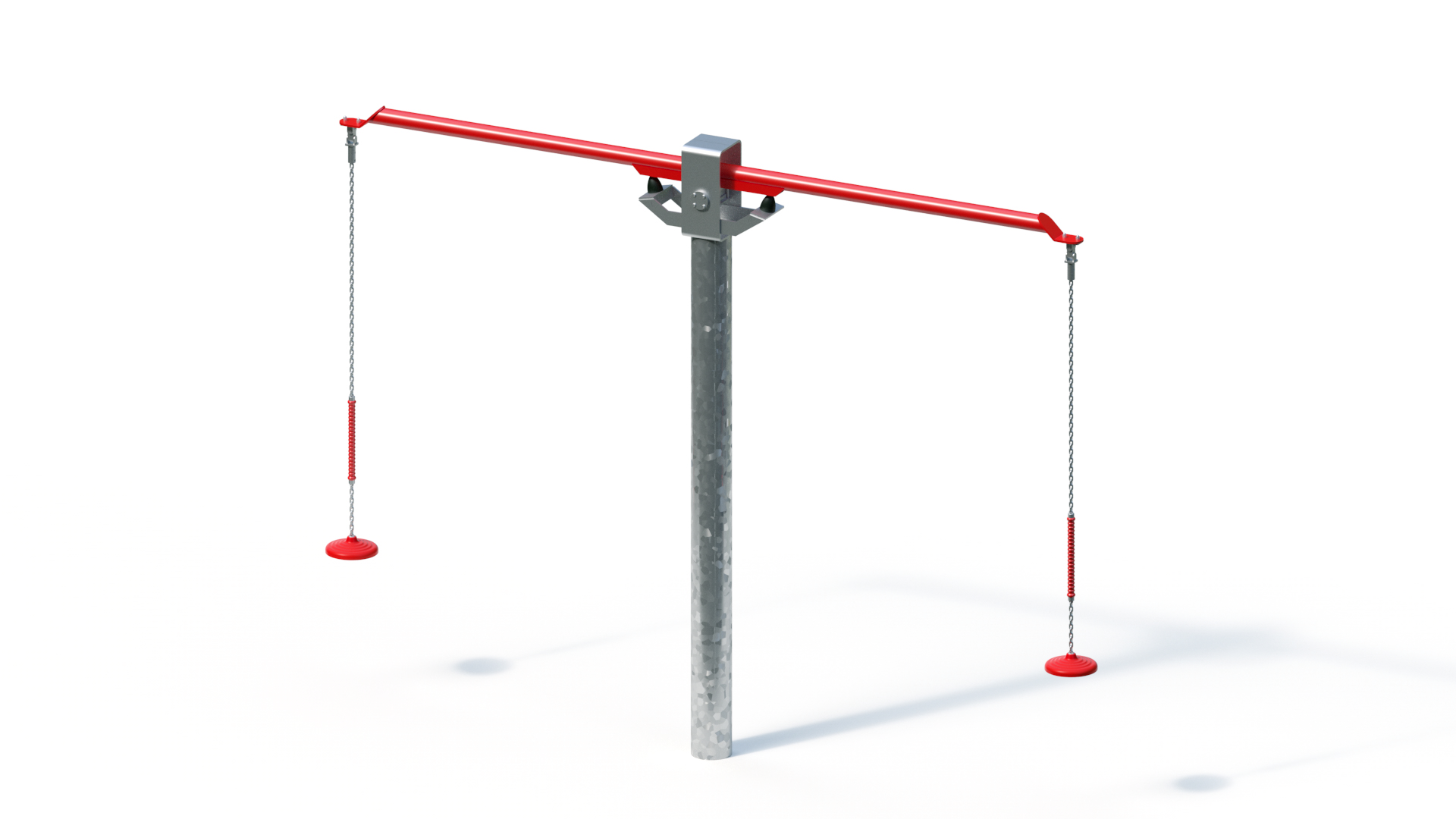

Scale teeter totter
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 3 people |
| Activities ? | Physical activity, Swinging |
Technical data
| Minimum space length ? | 8,35 m |
|---|---|
| Minimum space width ? | 4,70 m |
| Minimum space height ? | 3,05 m |
| Equipment length ? | 3,80 m |
| Equipment width ? | 0,25 m |
| Equipment height ? | 3,05 m |
| Free-fall height ? | 1,30 m |
| Platform heights | - |
| Total weight ? | 240.00 kg |
| Heaviest single part ? | 165.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1x (1m x 1m x 0.8m) |
Product Downloads
Product description
Technical data

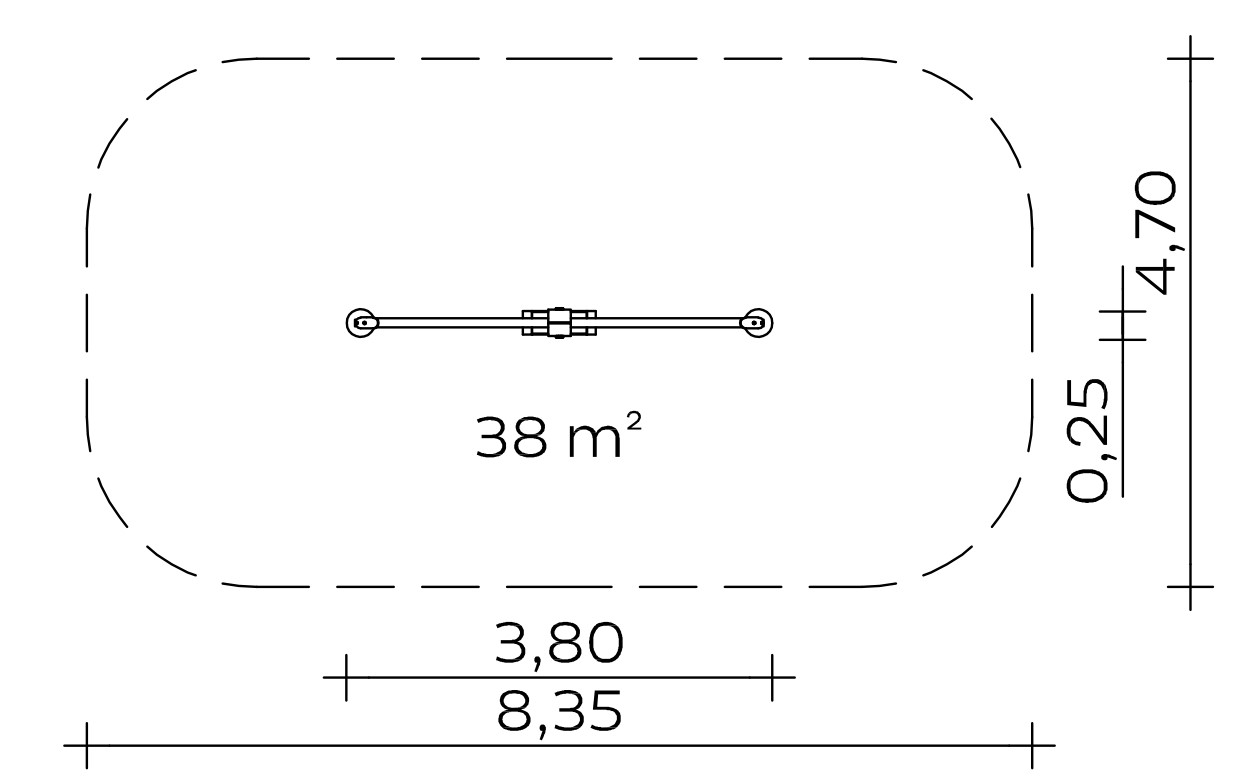

Base area: 0.25 x 3.80 m
Minimum space: 4.70 x 8.35 m (38 m²)
Total height: 3.05 m
Weight: 165 kg heaviest individual part
240 kg in total
- Support post made of tubular steel Ø 193.7 x 5.6 mm, hot-dip galvanised, with base plate.
- Rocking mechanism with vibration-damping rubber spring bearing. Additionally shock-absorbed by parabolic rubber buffers.
- Pendulum scale support, hot-dip galvanised steel, additionally powder-coated
- Stainless steel universal joints with ball-bearing swivels.
- Safety pendulum seats with thermally moulded, flexible rubber handle on stainless steel chains.
Foundation (on site)
1 piece 1.00 x 1.00 x 0.80 m
Concrete volume: 0.80 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,30 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Movement activities.
Item number: 044382002
