Spring see-saw

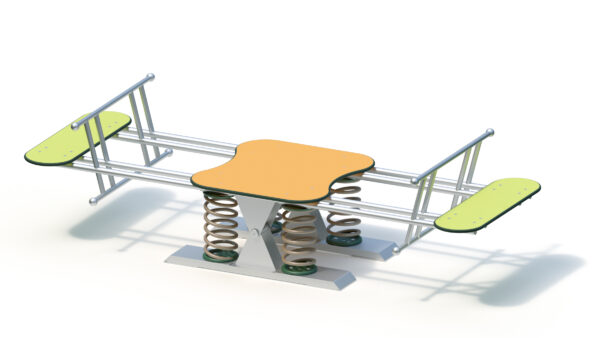

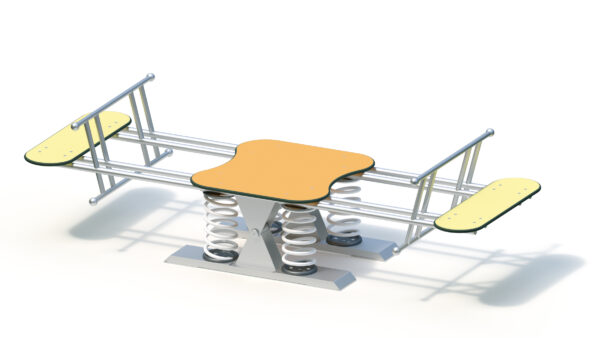

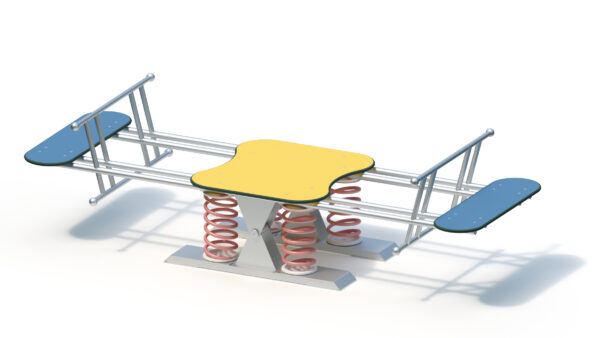

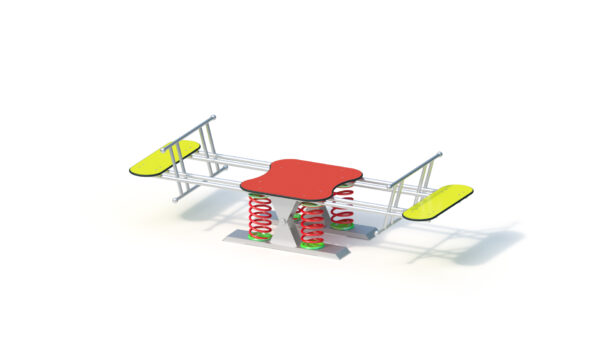

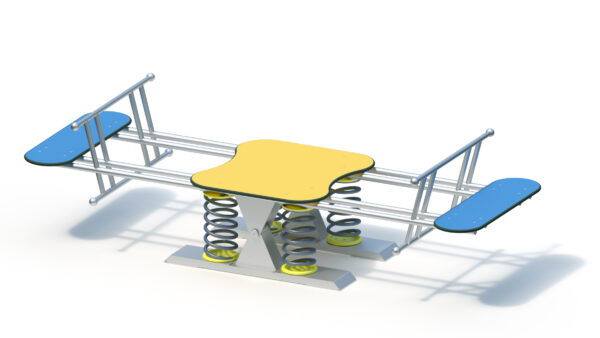

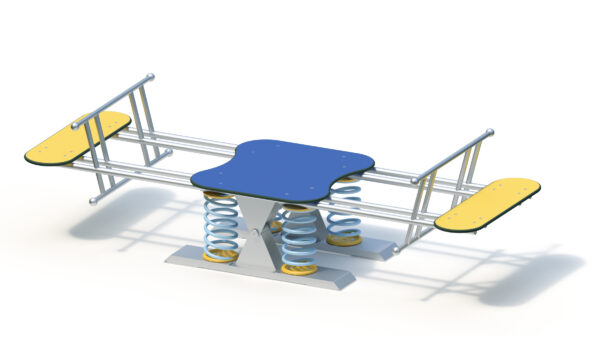

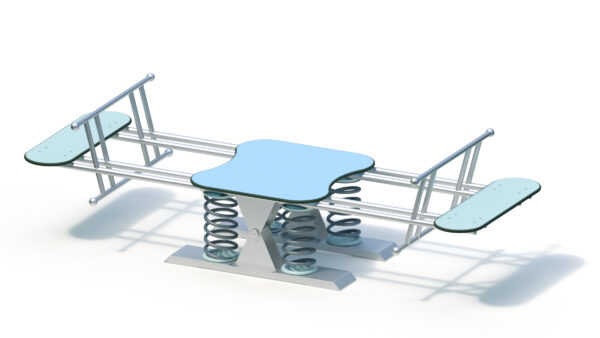

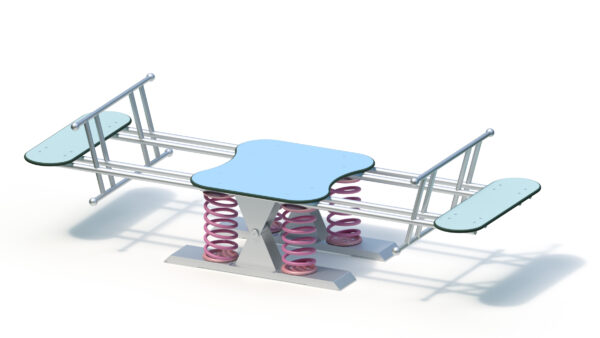

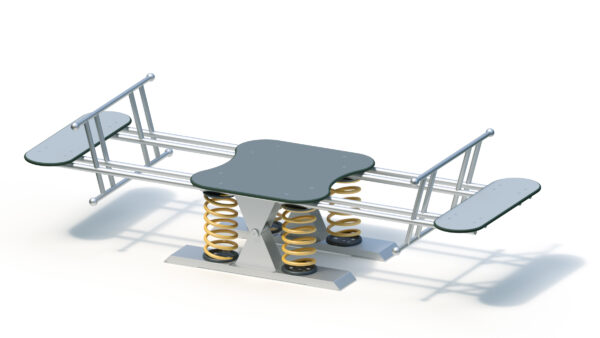

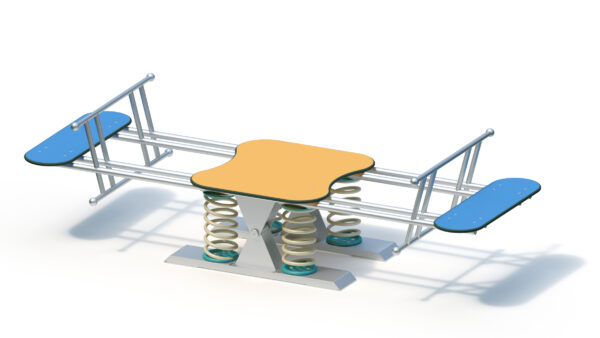

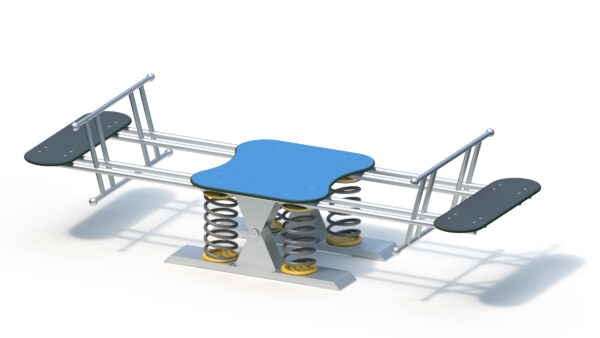

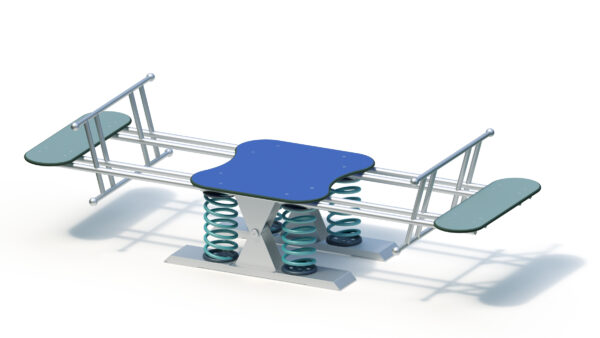

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 8 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 2,90 m |
|---|---|
| Gerätebreite ? | 1,05 m |
| Gerätehöhe ? | 0,80 m |
| Freie Fallhöhe ? | 0,80 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 275.00 kg |
| Schwerstes Einzelteil ? | 0.00 kg |
| Mindestraumlänge ? | 4,95 m |
| Mindestraumbreite ? | 3,05 m |
| Mindestraumhöhe ? | 0,80 m |
Assembly & Foundations
| Montagezeit ? | 0,0 h |
|---|---|
| Monteuranzahl ? | 0 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1x (1.7m x 1.08m x 0.1m) |
Product Downloads
Product description
Technical data
Floor area: 1.05 x 2.90 m
Minimum space: 3.05 x 4.95 m (15 m²)
Seat height: 0.52 m
Rocking frame: Stainless steel
Rocker spring: special spring wire Ø 20 mm
Seat top: made of coloured, highly weather-resistant HPL laminate, 20 mm; theft-proof screw connection.
Weight: 275 kg in total
Incl. ground anchor
Assembly time
Delivered pre-assembled in one piece
Foundation
If the ground is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (1.70 x 1.08 x 0.10 m).
Concrete volume: 0.18 m³
Free fall height
0,80 m
Suitable for
Children from 4 years,
public playgrounds etc.,
Movement activities.
Item number: 044280000
