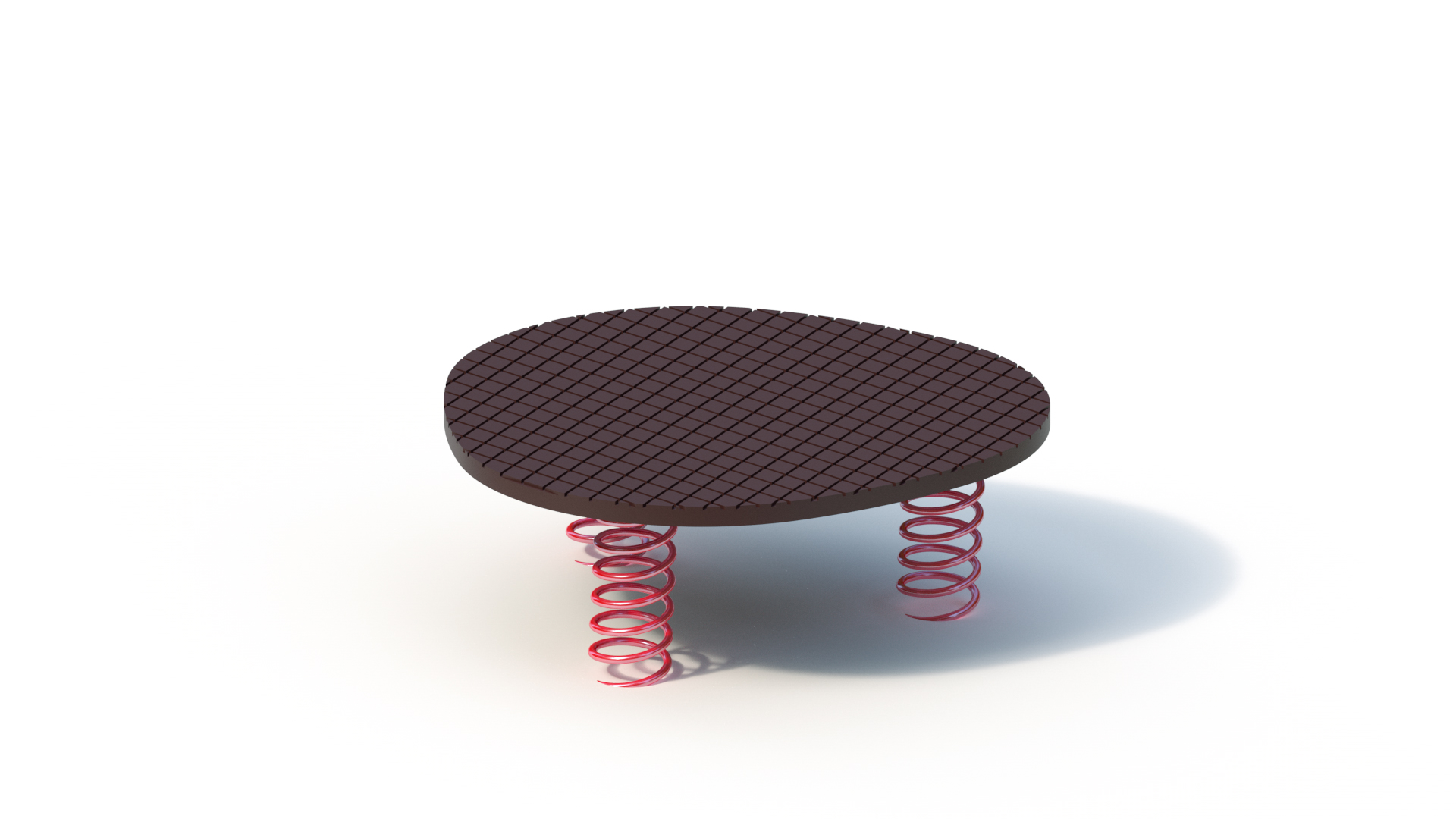

Jumping platform
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | - |
| Benutzeranzahl ? | 3 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Mindestraumlänge ? | 4,00 m |
|---|---|
| Mindestraumbreite ? | 4,00 m |
| Mindestraumhöhe ? | 0,30 m |
| Gerätelänge ? | 1,00 m |
| Gerätebreite ? | 1,00 m |
| Gerätehöhe ? | 0,30 m |
| Freie Fallhöhe ? | 0,30 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 140.00 kg |
| Schwerstes Einzelteil ? | 100.00 kg |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 1 Personen |
| Hebezeug erforderlich | - |
| Fundamente | - |
Product Downloads
Product description
Technical data

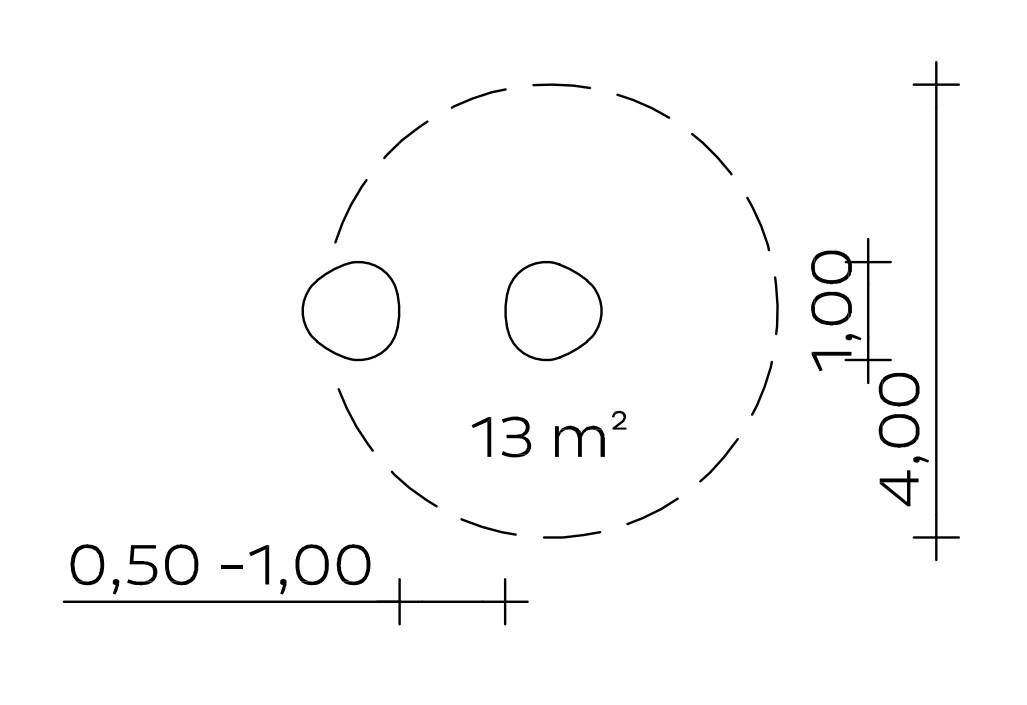

Base area: Ø 1.00 m
Minimum space: Ø 4.00 m (13 m²)
Height: 0.30 m
Weight: 100 kg heaviest individual part
140 kg in total
Top made of highly compressed synthetic resin moulded wood (PAGHOLZ), highly wear-resistant, weather and temperature resistant, UV stable, non-slip surface thanks to milled grooves, 20 mm thick.
Platform function-related, due to corresponding arrangement of the 3 spiral compression springs made of spring steel wire acc. DIN 17223 C, 280 x 120 x 12 mm, phosphated and coated with epoxy resin, colour red/RAL 2002.
Including prefabricated foundation (round).
Please note:
The prefabricated foundation is not suitable for installation in loose fall protection material. If loose fall protection material is to be used, a foundation frame to be set in concrete separately is available. In this case, please contact us for this alternative installation option.
Assembly time
1 fitter 1 hour
(when using the prefabricated foundation)
Free fall height
0,30 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-6).
Suitable for
Children aged 3 and over,
public playgrounds,
Physical activities
Item number: 044131000
