Rotation globe (0,40)
The most important information
:
;
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 2 people |
| Activities ? | Physical activity |
Technical data
:
;
| Minimum space length ? | 3,72 m |
|---|---|
| Minimum space width ? | 3,72 m |
| Minimum space height ? | 1,40 m |
| Equipment length ? | 0,42 m |
| Equipment width ? | 0,42 m |
| Equipment height ? | 1,40 m |
| Free-fall height ? | 0,60 m |
| Platform heights | - |
| Total weight ? | 48.00 kg |
| Heaviest single part ? | 43.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 person |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (0.5m x 0.5m x 0.5m) |
Product Downloads
:
;
Product description
:
;
Technical data
Base area: Ø 0.42 m

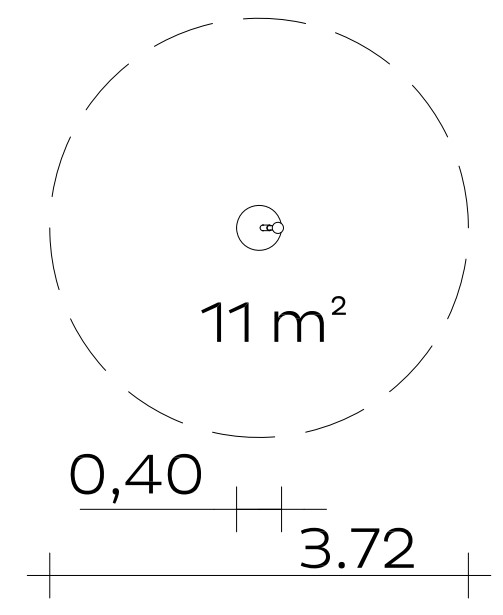

Minimum space: Ø 3.72 m (11 m²)
Height: 1.40 m
Weight: 43 kg heaviest individual part
48 kg in total
Rotating ball and body: stainless steel.
Anti-friction bearing: protected against dirt and interference.
Anchoring with flange ring.
Foundation (on site)
1 piece 0.50 x 0.50 x 0.50 m
Concrete volume: 0.13 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
0,60 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).
Suitable for
Children aged 3 and over,
public playgrounds etc.
Physical activities
Item number: 043180001
This Kaiser & Kühne product enables:
