Rotating plate (0,45)
Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 1 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 0,49 m |
|---|---|
| Device width ? | 0,49 m |
| Device height ? | 0,53 m |
| Free fall height ? | 0,53 m |
| Platform heights | - |
| Total weight ? | 40.00 kg |
| Heaviest single item ? | 35.00 kg |
| Minimum room length ? | 3,49 m |
| Minimum room width ? | 3,49 m |
| Minimum room height ? | 0,53 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 persons |
| Lifting gear required | - |
| Foundations | 050x050x050 |
Product Downloads
Product description
Technical data

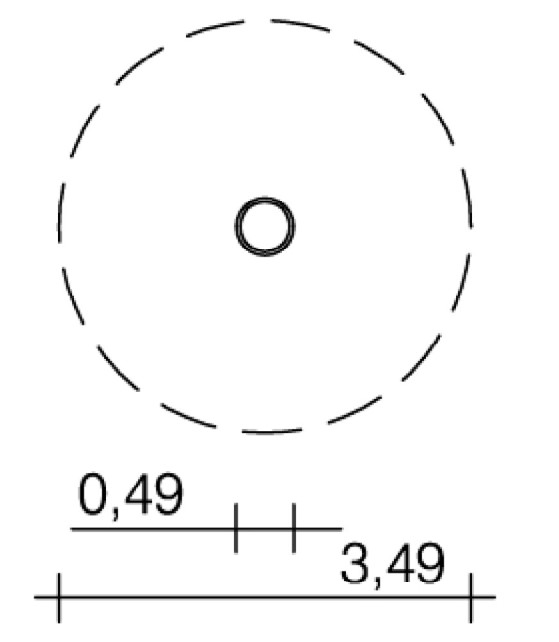

Base area: Ø 0.49 m
Minimum space: Ø 3.49 m (10 m²)
Height: 0.54 m
Weight: 35 kg heaviest individual part
40 kg in total

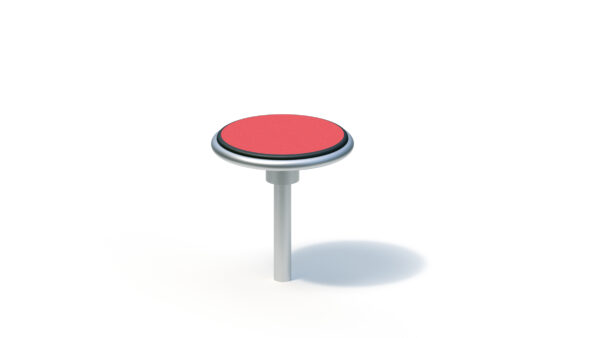

Rotating plate: Stainless steel/high-pressure laminate 15 mm (poppy). Anti-friction bearings: protected against interference and dirt. Anchoring with flange ring.
Foundation (on site)
1 piece 0.50 x 0.50 x 0.50 m
Concrete volume: 0.13 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
0,53 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).
Suitable for
Children aged 3 and over,
public playgrounds etc.
Physical activities
Item number: 043125001
