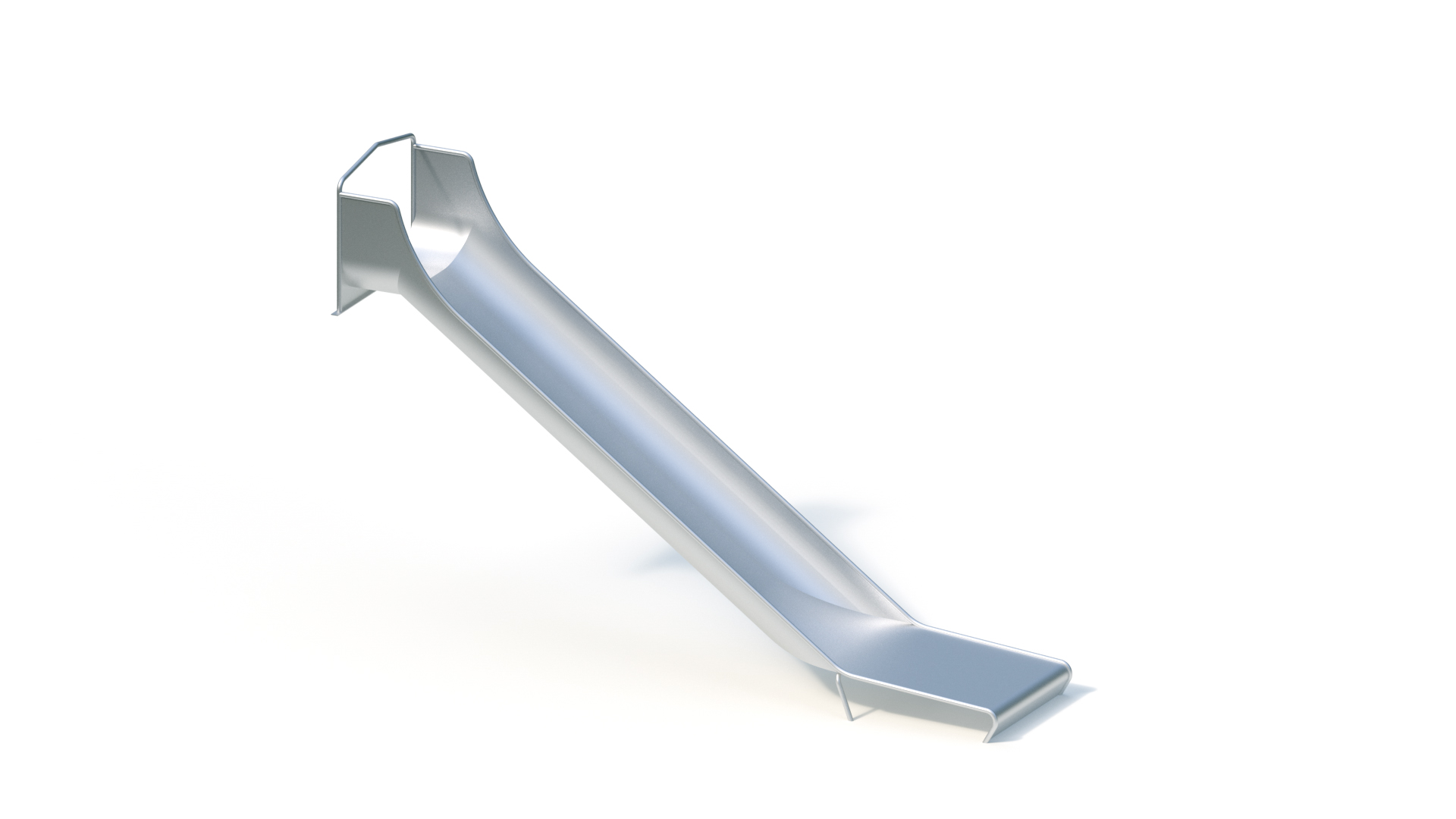

Wide slide (2,20 m) flange fastening
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 4 people |
| Activities ? | Physical activity, Slide |
Technical data
| Minimum space length ? | 8,95 m |
|---|---|
| Minimum space width ? | 5,16 m |
| Minimum space height ? | 3,80 m |
| Equipment length ? | 4,75 m |
| Equipment width ? | 1,10 m |
| Equipment height ? | 3,20 m |
| Free-fall height ? | 2,30 m |
| Platform heights | - |
| Total weight ? | 195.00 kg |
| Heaviest single part ? | 195.00 kg |
Assembly & Foundations
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1x (1.25m x 0.9m x 0.4m) |
Product Downloads
Product description
Technical data

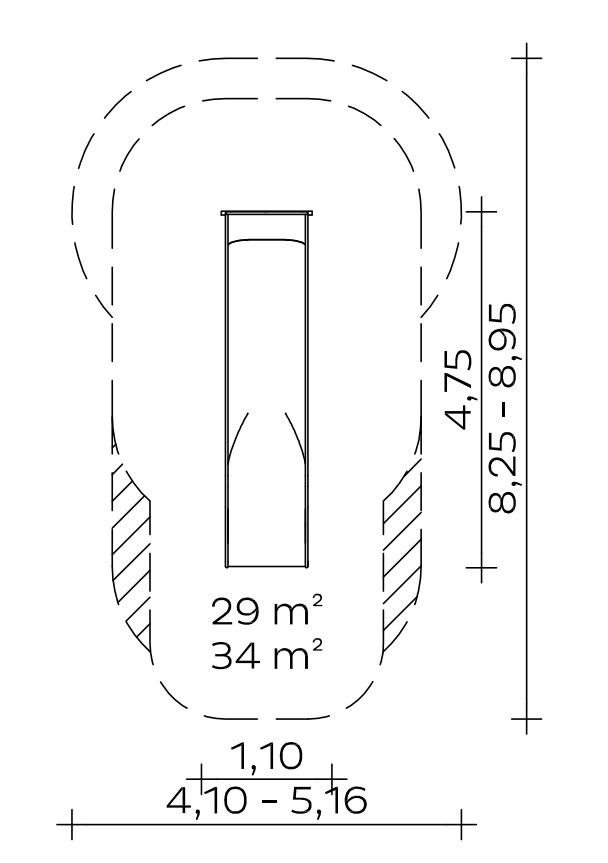

Floor area: 1.10 x 4.75 m
Minimum space: 5.16 x 8.95 m
Mounting height: 2.20 m
Seat height: 2.30 m
Slide inclination: 36°
Sliding plate thickness: 2.5 mm
Slide width: 1.10 m
Weight: 195 kg in total
One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the trough shape.
Please note that in the area of the flange on the slide seat, a surface suitable for screwing on (wooden platform or planks, concrete foundation or similar) must be available on site.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Foundation (on site)
1 piece 0.90 x 1.25 x 0.40 m
Concrete volume: 0.45 m³
Assembly time
is delivered in one piece
(without foundation)
Free fall height
max. 2.30 m
Suitable for
Children aged 5 and over,
Public playgrounds
Physical activities
Item number: 041454001
