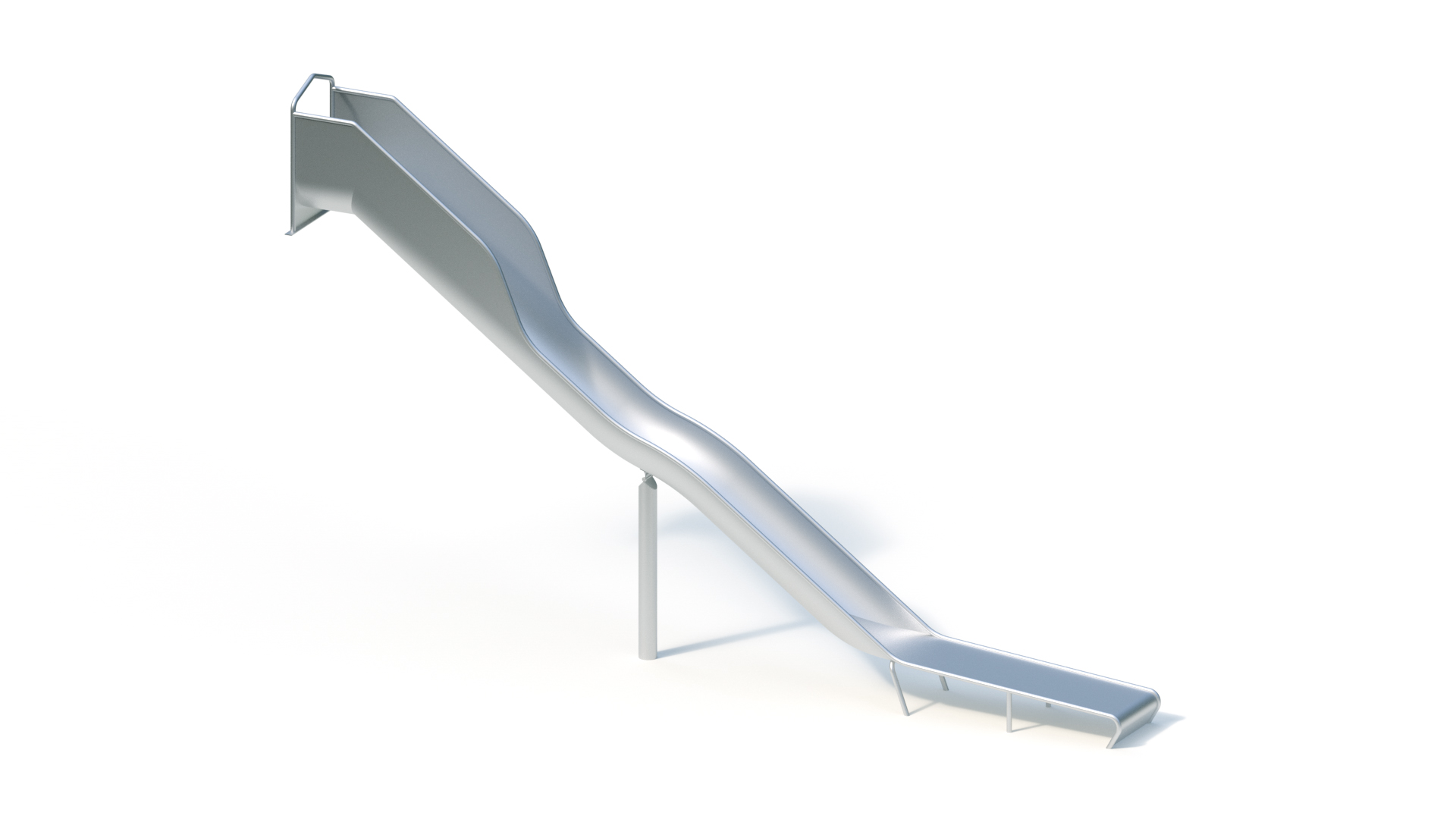

Slide bedway (2,60 m) flange fastening
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 3 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data
| Mindestraumlänge ? | 10,25 m |
|---|---|
| Mindestraumbreite ? | 4,30 m |
| Mindestraumhöhe ? | 4,20 m |
| Gerätelänge ? | 6,00 m |
| Gerätebreite ? | 0,60 m |
| Gerätehöhe ? | 3,60 m |
| Freie Fallhöhe ? | 2,70 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 190.00 kg |
| Schwerstes Einzelteil ? | 190.00 kg |
Assembly & Foundations
| Montagezeit ? | 0,0 h |
|---|---|
| Monteuranzahl ? | 0 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1 (1.4m x 0.75m x 0.4m) Quantity: 1 (0.4m x 0.4m x 0.6m) |
Product Downloads
Product description
Technical data
Base area: 0.60 x 5.25 m

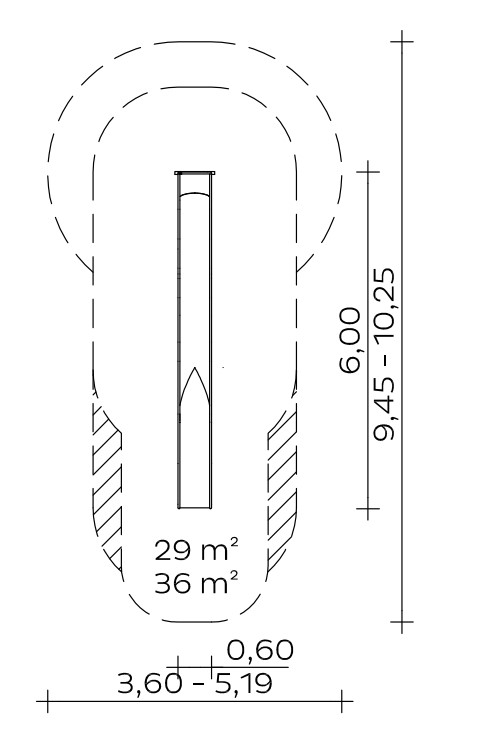

Minimum space: 4.95 x 10.25 m
Mounting height: 2.60 m
Seat height: 2.70 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Weight: 190 kg in total
One-piece stainless steel construction, with additional support in the outlet area. Speed regulation via shaft. Particularly quiet due to trough shape. Slide must be dowelled onto a strip foundation or other suitable surface.
Please note that a suitable base (wooden platform or planks, concrete foundation or similar) must be available on site in the area of the flange on the slide seat.
Including K&K slide support posts for the wave area and mounting flange. Each made of stainless steel.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Foundations (client-provided)
1 piece 1.40 x 0.75 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
Concrete volume: 0.52 m³
Assembly time
is delivered in one piece
(without foundation)
Free fall height
max. 2.70 m
Suitable for
Children aged 5 and over,
Public playgrounds
Physical activities
Item number: 041426001
