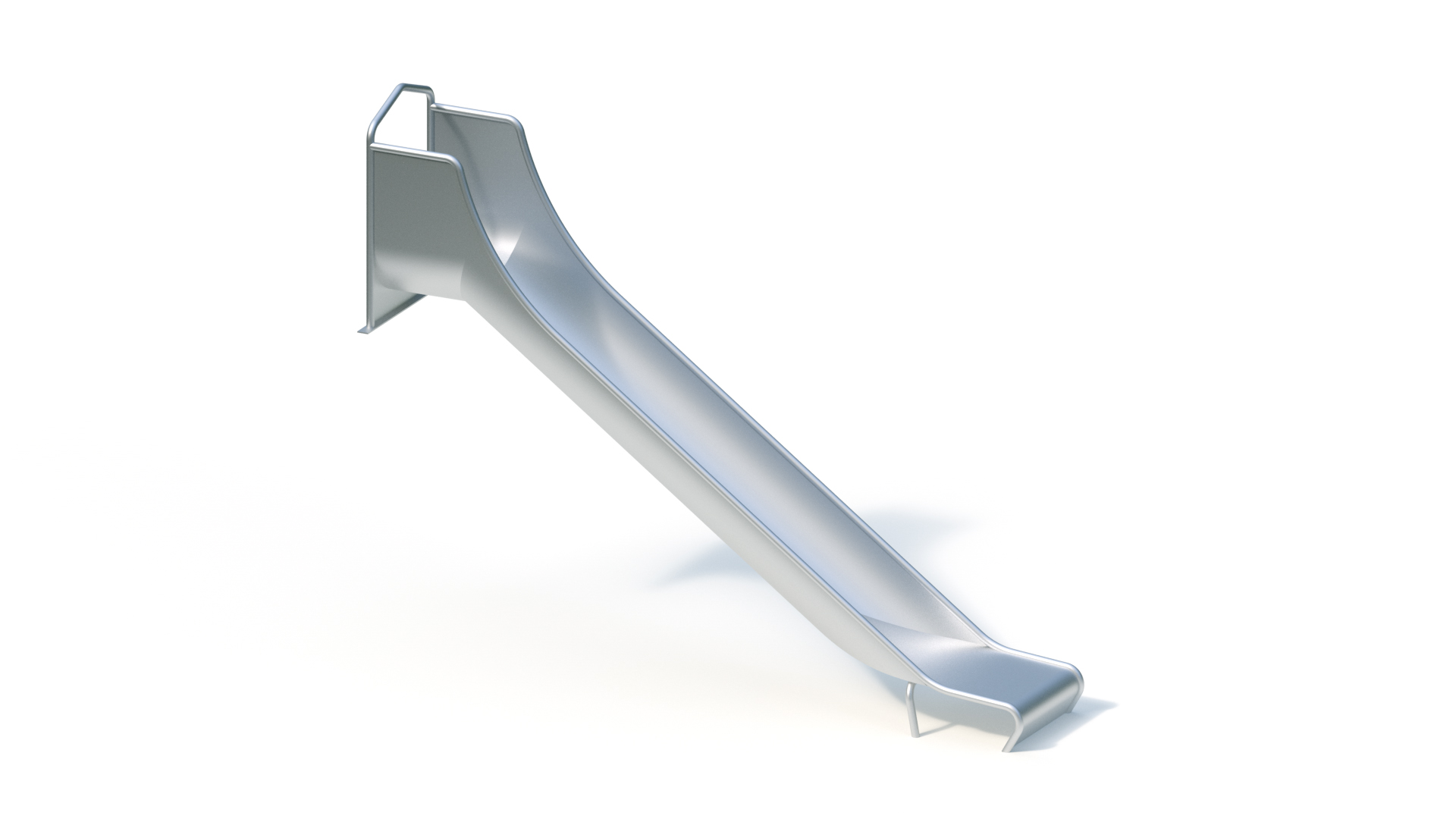

Slide bedway (1,40 m) flange fastening
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 3 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data
| Mindestraumlänge ? | 6,55 m |
|---|---|
| Mindestraumbreite ? | 3,60 m |
| Mindestraumhöhe ? | 3,00 m |
| Gerätelänge ? | 3,05 m |
| Gerätebreite ? | 0,60 m |
| Gerätehöhe ? | 2,40 m |
| Freie Fallhöhe ? | 1,50 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 90.00 kg |
| Schwerstes Einzelteil ? | 90.00 kg |
Assembly & Foundations
| Montagezeit ? | 0,0 h |
|---|---|
| Monteuranzahl ? | 0 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

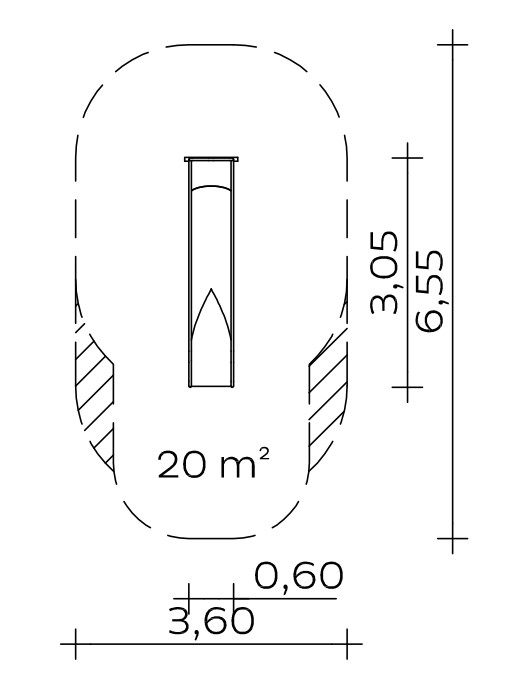

Base area: 0.60 x 3.05 m
Minimum space: 3.60 x 6.55 m
Mounting height: 1.40 m
Seat height: 1.50 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Weight: 90 kg in total
One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the trough shape.
Please note that a suitable base (wooden platform or planks, concrete foundation or similar) must be available on site in the area of the flange on the slide seat.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Foundation (on site)
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.12 m³
Assembly time
is delivered in one piece
(without foundation)
Free fall height
max. 1.50 m
Suitable for
Children aged 3 and over,
Public playgrounds
Physical activities
Item number: 041414001
