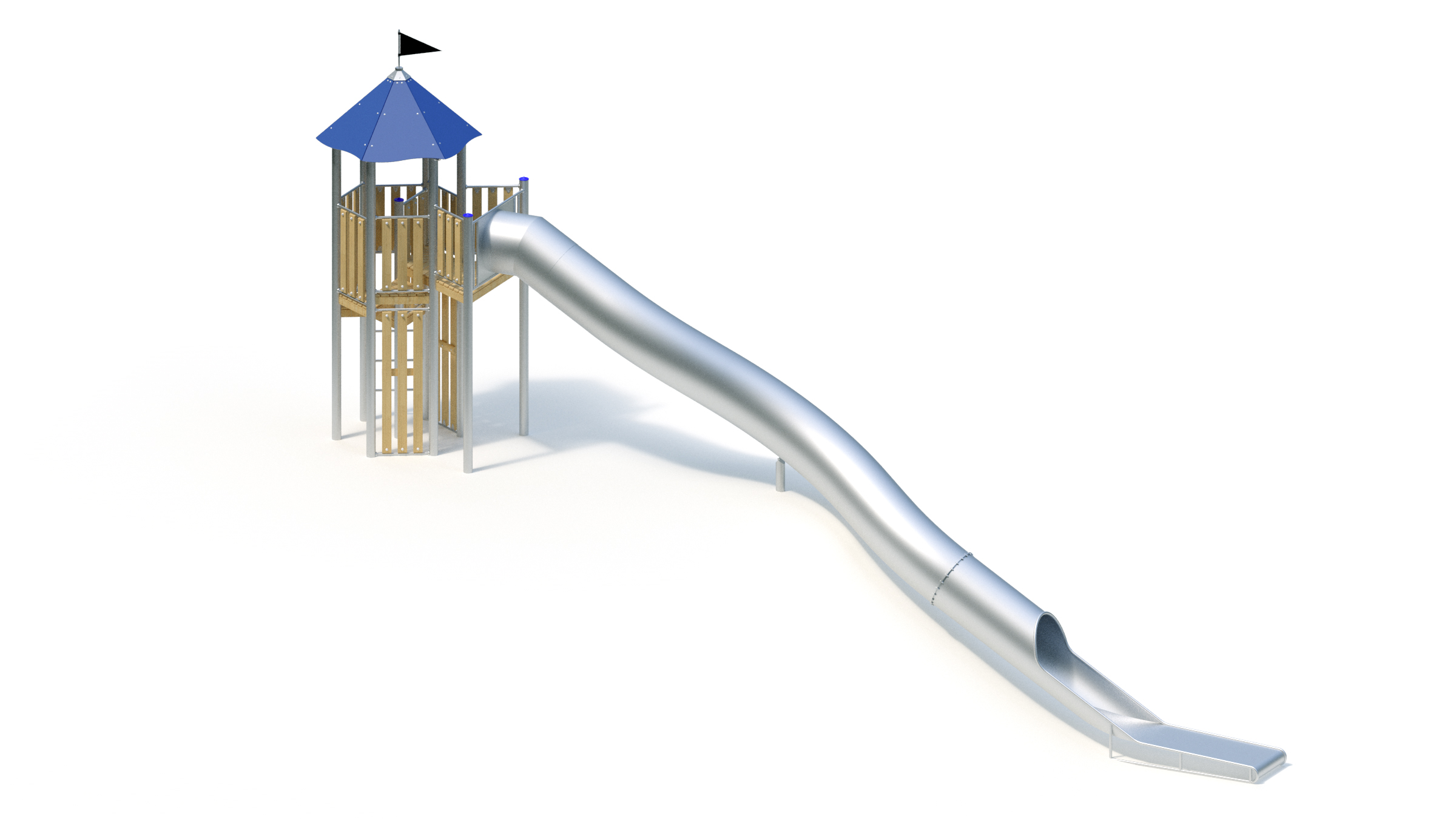

Slide tower (5,00)
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | - |
| Number of users ? | 12 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 17,06 m |
|---|---|
| Minimum space width ? | 5,92 m |
| Minimum space height ? | 5,55 m |
| Equipment length ? | 13,42 m |
| Equipment width ? | 2,14 m |
| Equipment height ? | 5,55 m |
| Free-fall height ? | 2,40 m |
| Platform heights | - |
| Total weight ? | 1334.00 kg |
| Heaviest single part ? | 570.00 kg |
Assembly & Foundations
| Assembly time ? | 10,0 h |
|---|---|
| Number of fitters ? | 3 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 1 (0.4m x 0.4m x 0.6m) Quantity: 3 (1m x 0.4m x 0.4m) Quantity: 9 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

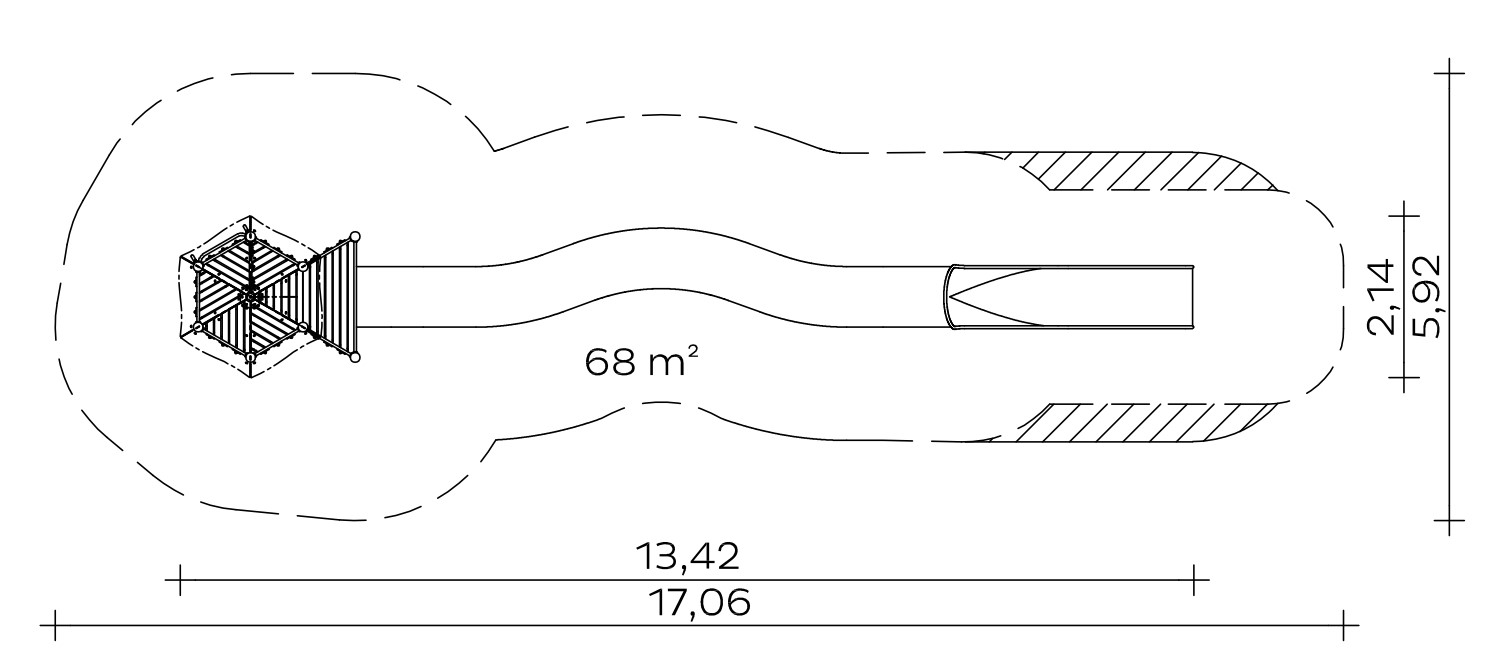

Floor area: 13.42 x 2.14 m
Impact area: 17.06 x 5.92 m (68 m²)
Total height: 5.55 m (excluding the slide)
Free fall height: 2.40 m
Platform height: 1.60/1.80/2.00/2.20/2.40 m
Slide attachment height: 2.40 m
Seat height: 2.50 m
Slide mounting height above
Zero slide run-out: 5.00 m
(for hill height 2.60 m)
Slide inclination: 30°
Slide width: 0.80 m
Sliding plate thickness: 2.5 mm
Total weight: 1,334.00 kg
Heaviest individual part: 570.00 kg
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Stainless steel hood with a corrugated flange made from stainless steel sheet
Tunnel slide, 30°, installation height 5.00 m
Route: 20° left-hand bend, 40° right-hand bend, 20° left-hand bend
Stainless steel slide sections; their tunnel shape ensures they are particularly quiet; welded together to form a two-part slide for ease of transport; including flange connections at the join to allow for straightforward on-site assembly using bolts. Includes support posts made from stainless steel tubing (Ø 120 x 3 mm) and a stainless steel mounting flange.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations
9 pcs. 0.40 x 0.40 x 0.40 m
1 piece, 0.40 x 0.40 x 0.60 m
3 pieces, 1.00 x 0.40 x 0.40 m
Assembly time
3 fitters, 10 hours each, plus lifting equipment
(without foundation)
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 041320500
