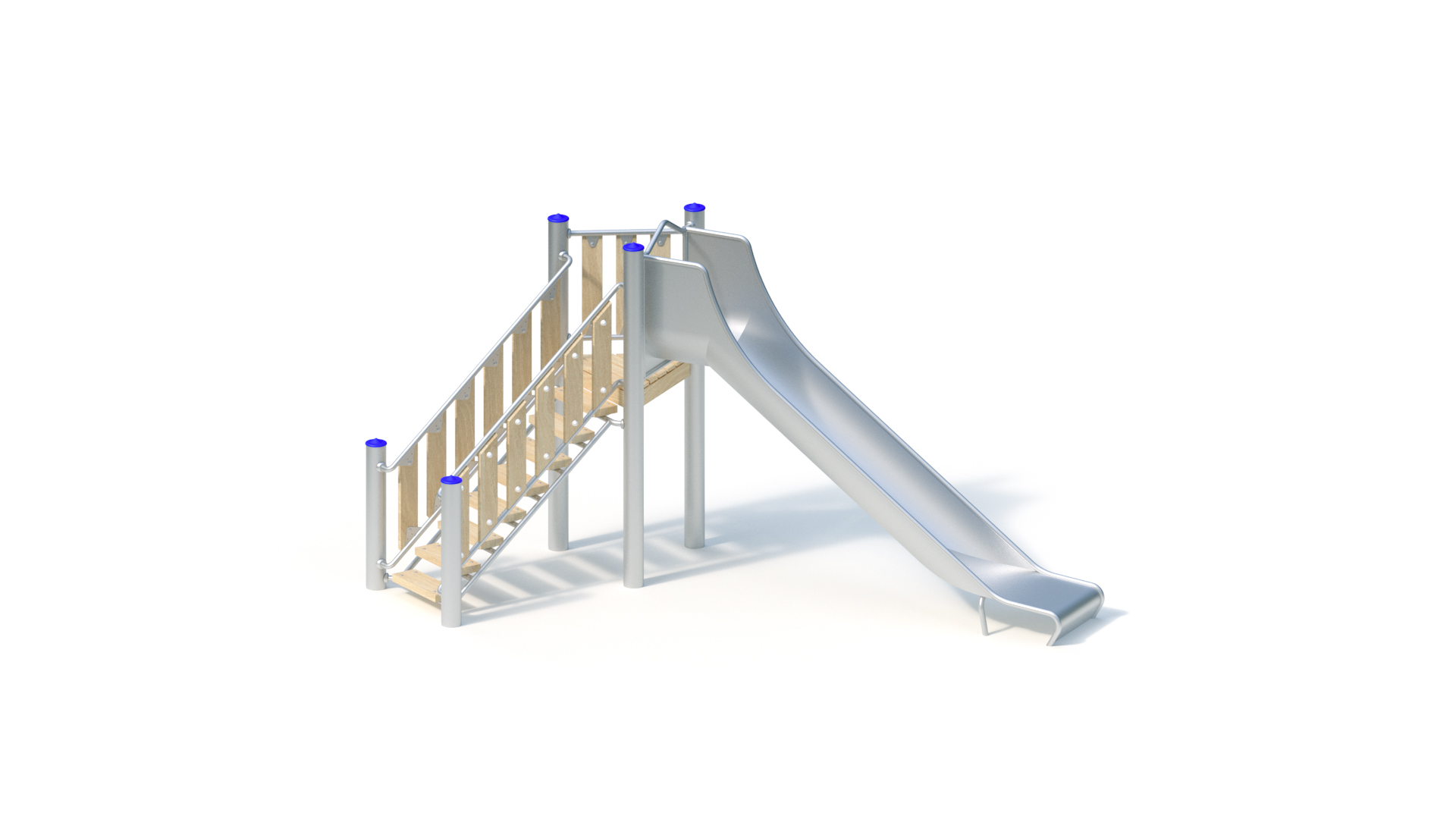

Combi slide (1,20)
Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 5 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data
| Gerätelänge ? | 4,15 m |
|---|---|
| Gerätebreite ? | 2,05 m |
| Gerätehöhe ? | 2,15 m |
| Freie Fallhöhe ? | 1,30 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 370.00 kg |
| Schwerstes Einzelteil ? | 90.00 kg |
| Mindestraumlänge ? | 7,65 m |
| Mindestraumbreite ? | 5,05 m |
| Mindestraumhöhe ? | 2,20 m |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 5 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 2.15 m
Floor area: 2.05 x 4.15 m

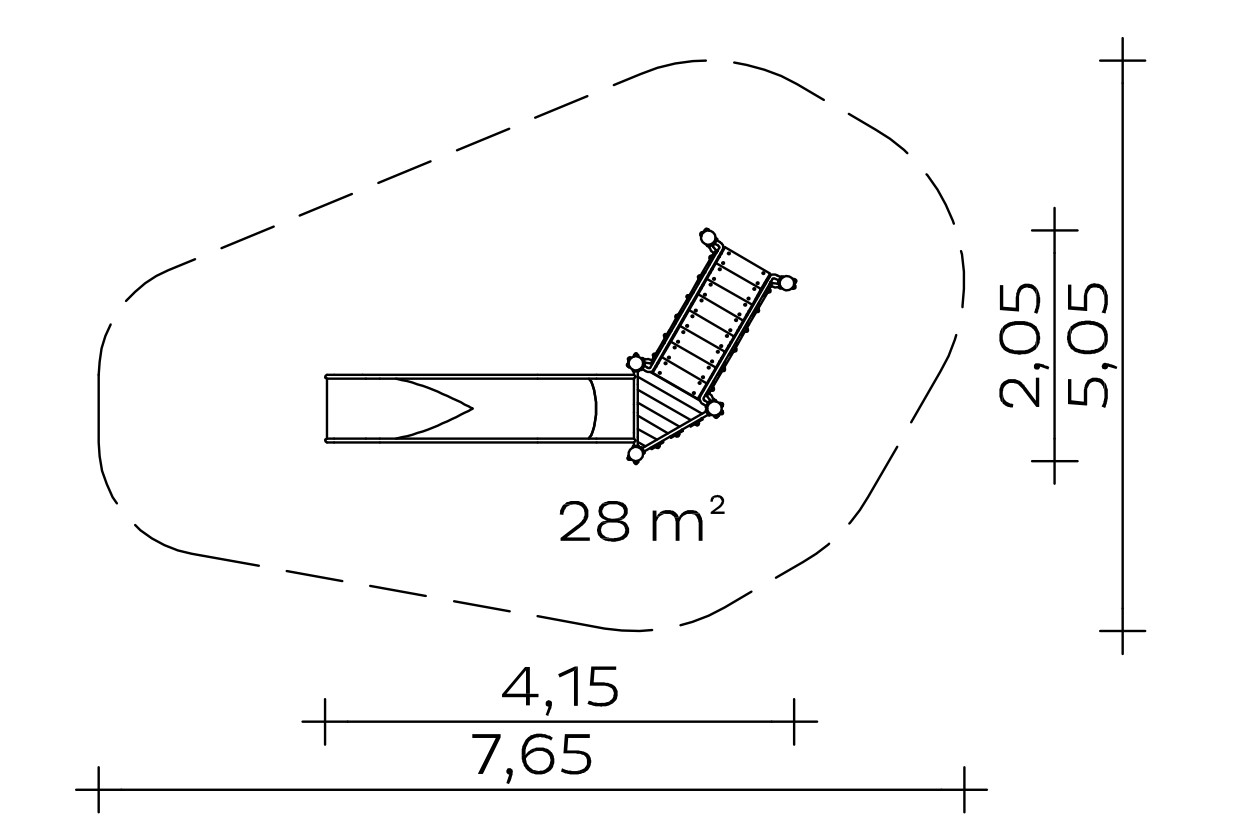

Minimum space: 5.05 x 7.65 m (28 m²)
Platform height: 1.20 m
Slide attachment height: 1.20 m
Seat height: 1.30 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Support post
Stainless steel posts, Ø 12 cm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Wooden balustrade made of robinia, 120 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of robinia wood, fixed between stainless steel tubes Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
5 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.44 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
1,30 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 041148500
