Pendulum Swing
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 5 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 9,30 m |
|---|---|
| Minimum space width ? | 9,30 m |
| Minimum space height ? | 3,26 m |
| Equipment length ? | 6,45 m |
| Equipment width ? | 6,45 m |
| Equipment height ? | 3,26 m |
| Free-fall height ? | 2,25 m |
| Platform heights | - |
| Total weight ? | 300.00 kg |
| Heaviest single part ? | 60.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.75m x 0.75m x 0.7m) |
Product Downloads
Product description
Technical data

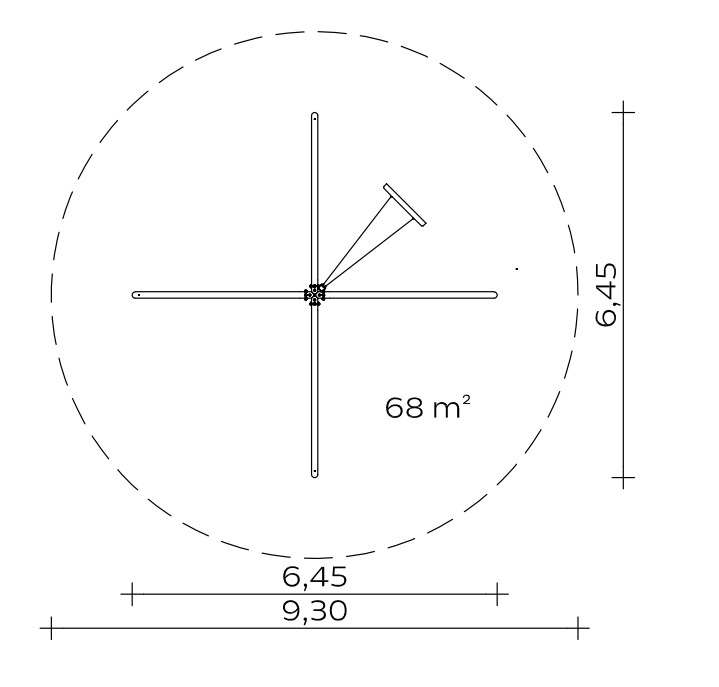

Floor area: 6.45 x 6.45 m
Minimum space: Ø 9.30 m (68 m²)
Swing height: 3.26 m
Weight: 60 kg heaviest individual part
300 kg in total
- Swing frame made of hot-dip galvanised round steel tubes, Ø 114.3 x 3.6 mm
- Special universal joint (Kaiser & Kühne)
- Rubber swing platform Ø 1.00 m, shock-absorbing, with shape-stabilising polyethylene core plate and chain suspension consisting of stainless steel chains Ø 7 mm
Foundations (client-provided)
4 units 0.75 x 0.75 x 0.70 m
Concrete volume: 1.58 m³
Assembly time
2 fitters 3 hours each, plus lifting gear
(without foundation)
Free fall height
2,25 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
Physical activities
Item number: 040720001
This Kaiser & Kühne product enables:
