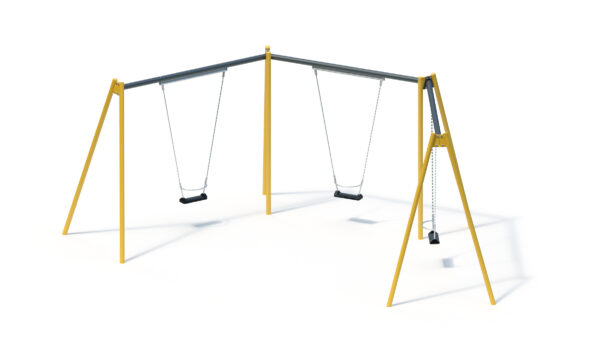

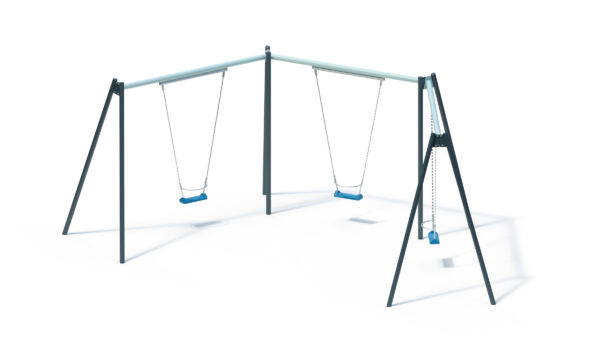

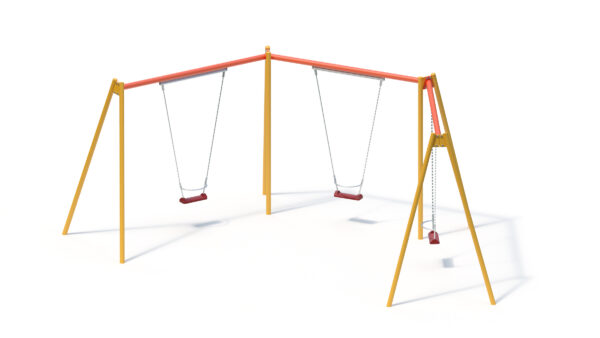

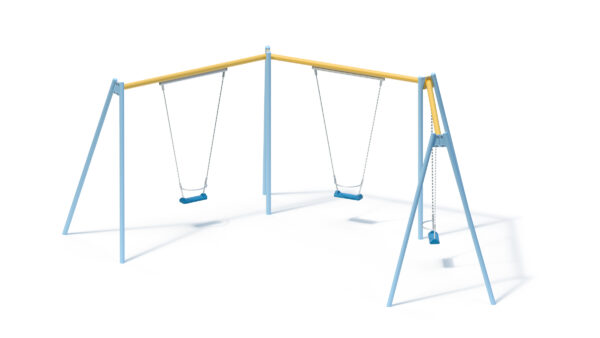

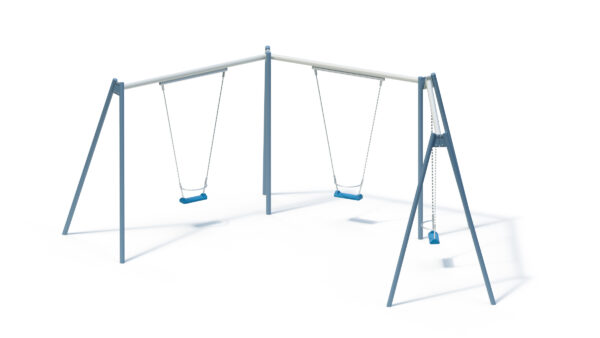

Sixfold contact swing (2,50) stainless steel

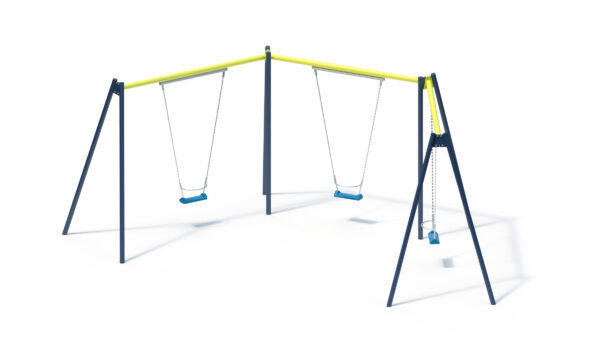

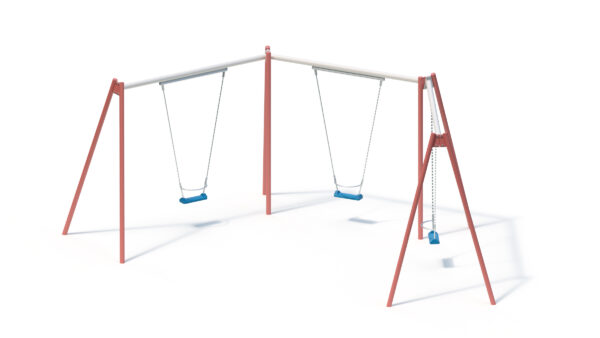

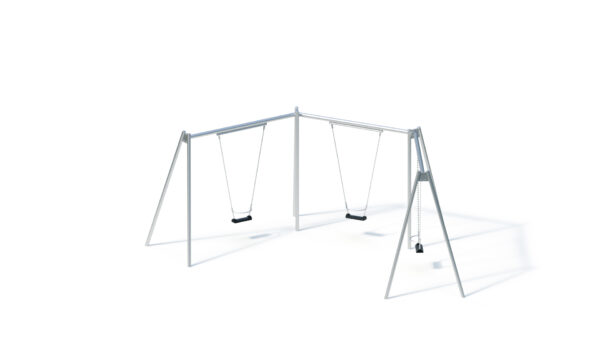

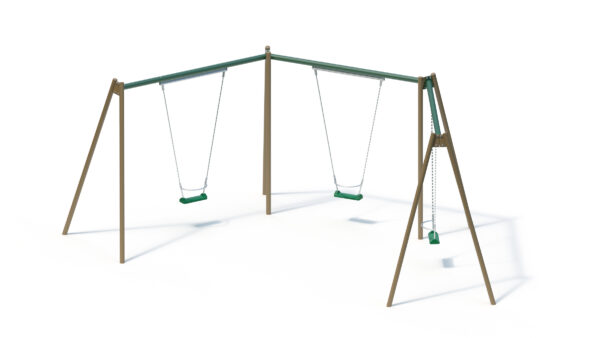

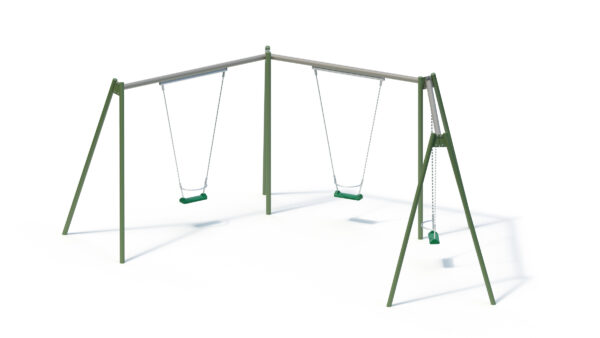

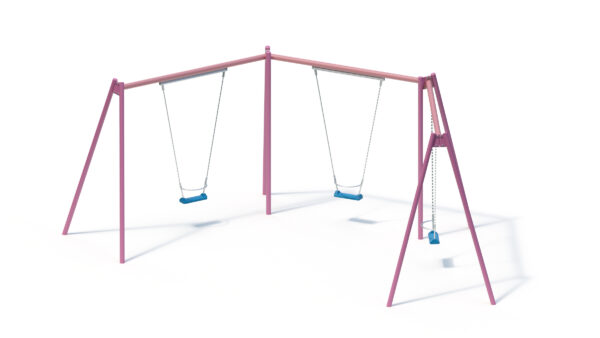

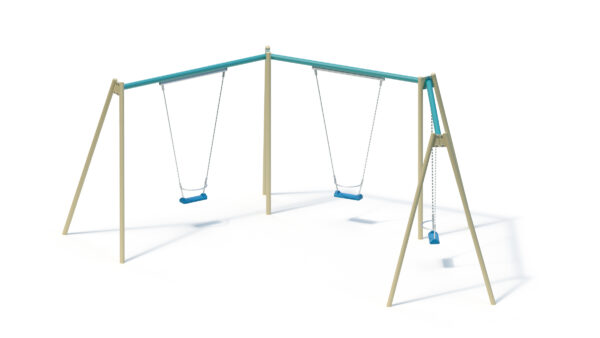

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 3 people |
| Activities ? | Physical activity, Swinging |
Technical data
| Minimum space length ? | 12,80 m |
|---|---|
| Minimum space width ? | 8,20 m |
| Minimum space height ? | 2,71 m |
| Equipment length ? | 7,65 m |
| Equipment width ? | 4,05 m |
| Equipment height ? | 2,71 m |
| Free-fall height ? | 1,50 m |
| Platform heights | - |
| Total weight ? | 300.00 kg |
| Heaviest single part ? | 36.00 kg |
Assembly & Foundations
| Assembly time ? | 5,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.7m x 0.5m x 0.5m) Quantity: 2 (1.6m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data

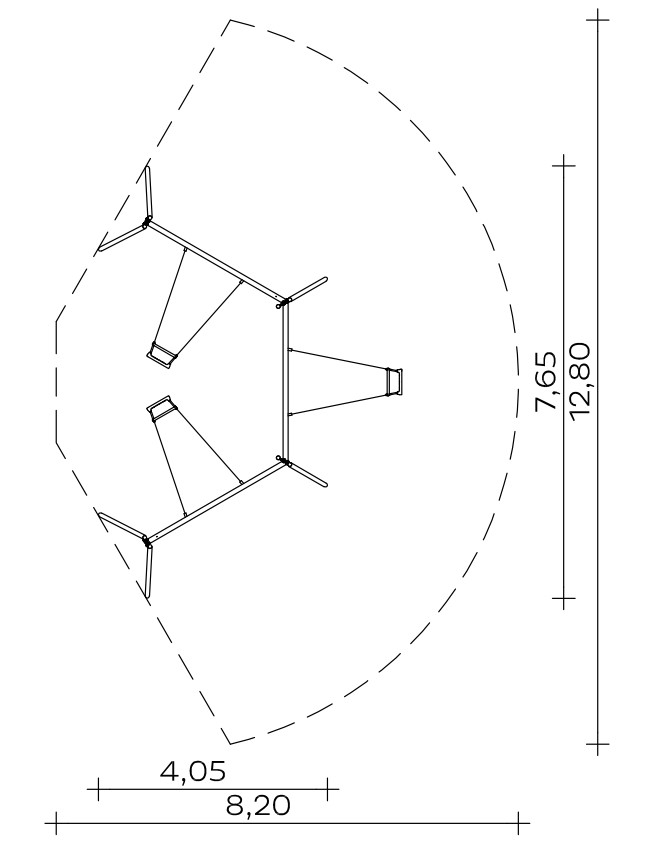

Floor area: 4.05 x 7.65 m
Minimum space: 8.20 x 12.80 m (35 m²)
Swing height: 2.50 m
Weight: 36 kg heaviest individual part
300 kg in total
- Swing supports made of stainless steel tube Ø 76 mm, wall thickness 2.9 mm; connection to swing support via connection plates
- Swing support made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm
- Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings
- Trapezoidal chain suspension Ø 7 mm with integrated, ball-bearing swivels to prevent the chains from knotting
- Safety swing seats made of rubber with dimensionally stable aluminium inlay with anti-jump device, integrated chain adapters on slide-mounted joints and gapless single-point suspension,
- Chain mount with stainless steel clamping adapter.
Foundations (client-provided)
4 units 0.50 x 0.70 x 0.50 m
2 units 0.50 x 1.60 x 0.50 m
Concrete volume: 1.60 m³
Assembly time
2 fitters 5 hours each
(without foundation)
Free fall height
1,50 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities
Item number: 040563000
