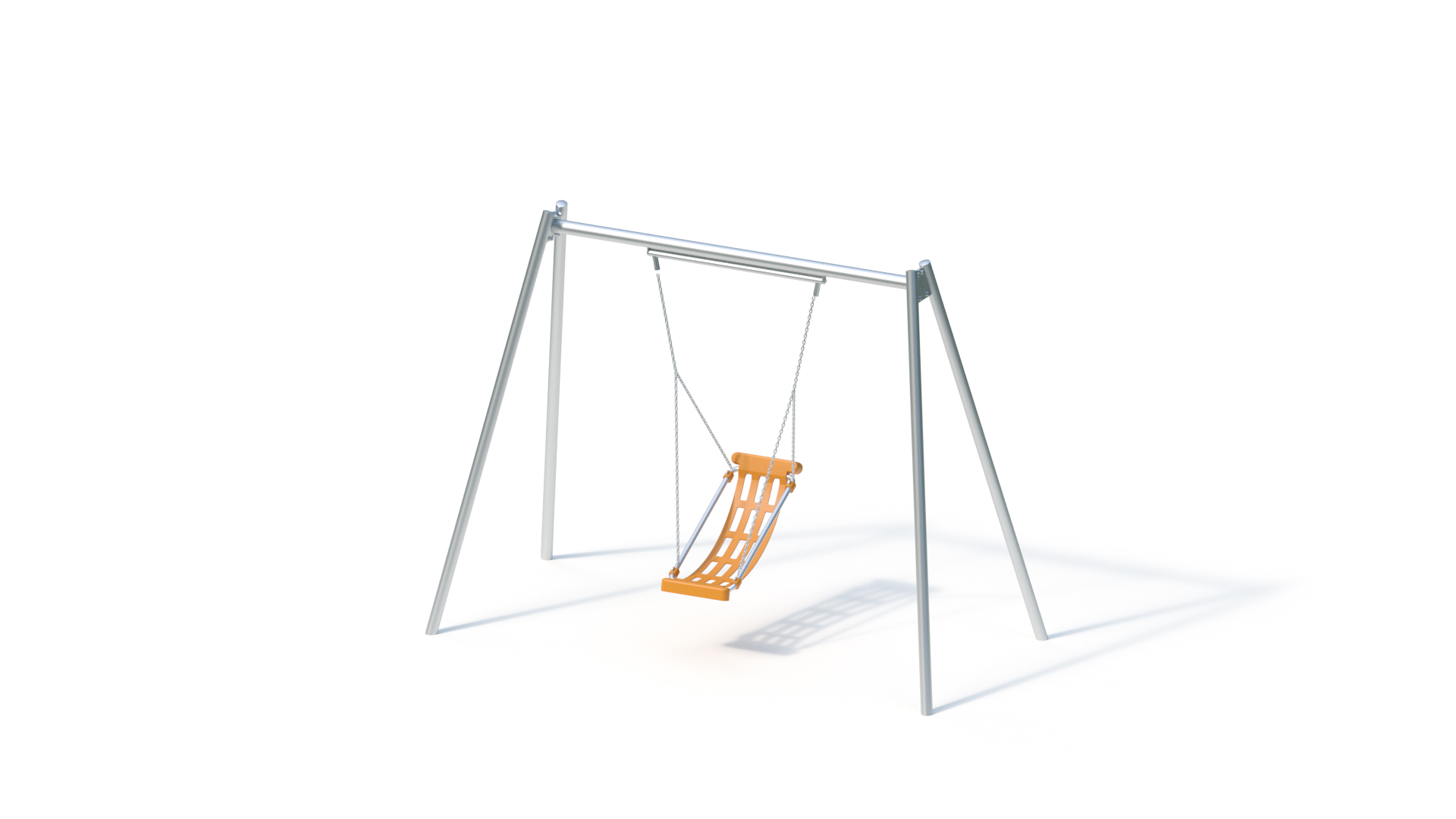

All Abilities Swing (2,50) stainless steel
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | - |

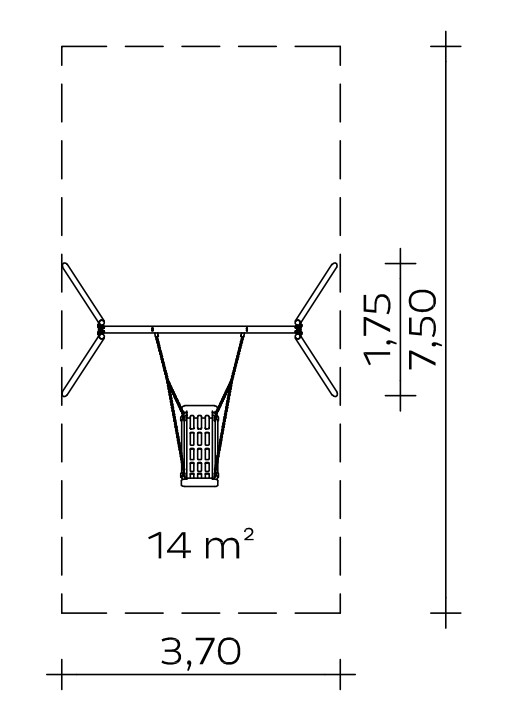

Technical data
| Minimum space length ? | 7,51 m |
|---|---|
| Minimum space width ? | 3,70 m |
| Minimum space height ? | 2,71 m |
| Equipment length ? | 1,75 m |
| Equipment width ? | 3,70 m |
| Equipment height ? | 2,71 m |
| Free-fall height ? | 1,66 m |
| Platform heights | - |
| Total weight ? | 195.00 kg |
| Heaviest single part ? | 32.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.6m x 0.6m x 0.47m) |
Product Downloads
Product description
Technical data
Floor area: 1.73 x 3.70 m
Minimum space: 7.51 x 3.70 m
Swing height: 2.50 m
Weight: 32 kg heaviest individual part
135 kg total
- Swing supports made of stainless steel tube Ø 76 mm, wall thickness 2.9 mm; connection to swing support via connection plates
- Swing support made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm; connection to swing supports via connection plates
- Stainless steel swing axle, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings, chain fastening with stainless steel clamping adapter
- trapezoidal chain suspension, adjusted for an upright sitting position, consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- Boat swing seat (orange), tested in accordance with EN 1176-1/-2, with body support for people with limited balance, gripping ability or coordination, consisting of synthetic rubber moulded part in cradle shape with impact energy absorbing vapour zones and steel wire insert Ø 4 mm to reinforce and prevent cracks, circumferential seat frame made of corrosion-resistant stainless steel tube Ø 35 mm, wall thickness 1.5 mm, with 4 connections for 7 mm chain
Foundations (client-provided)
4 units 0.60 x 0.60 x 0.47 m
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
1,66 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040366000
