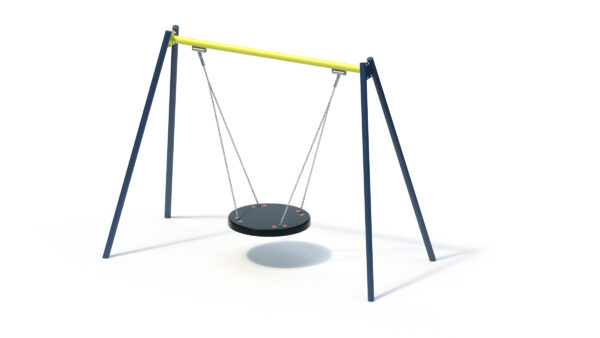

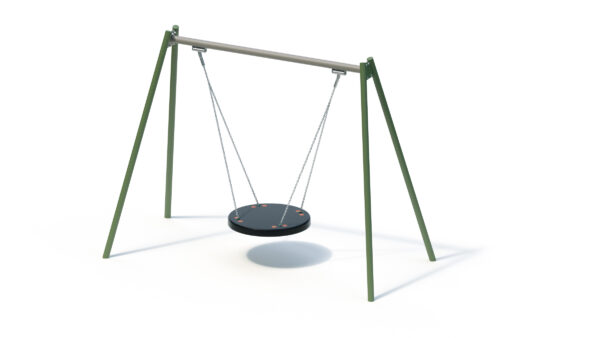

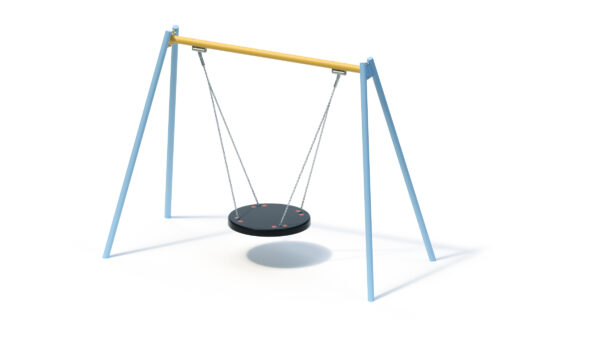

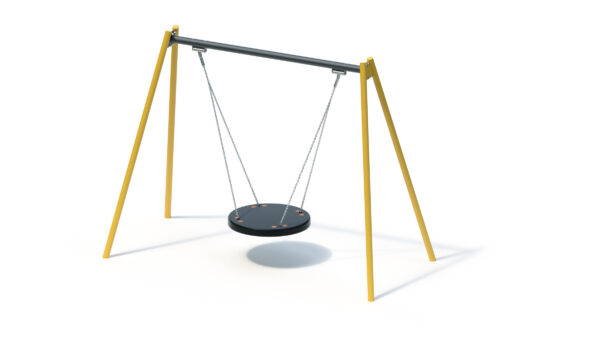

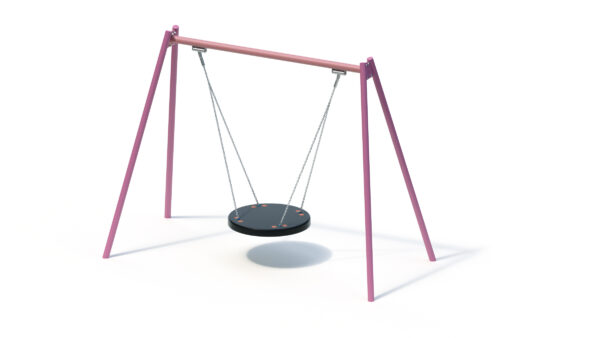

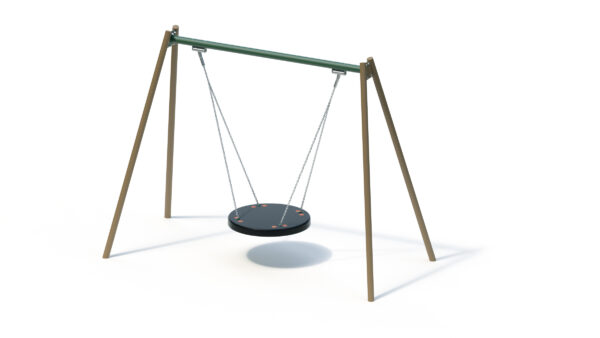

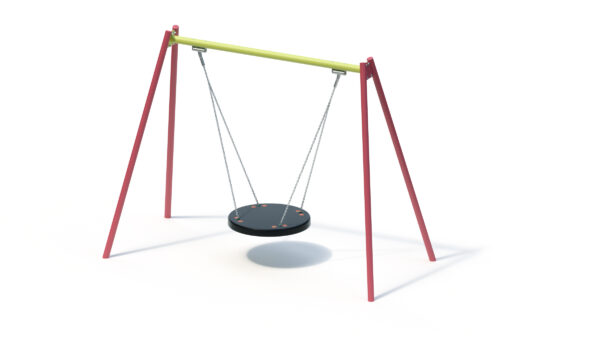

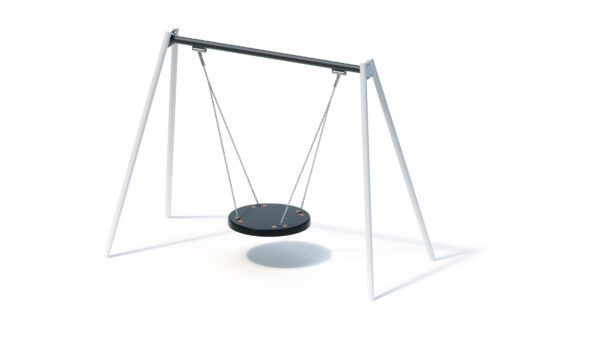

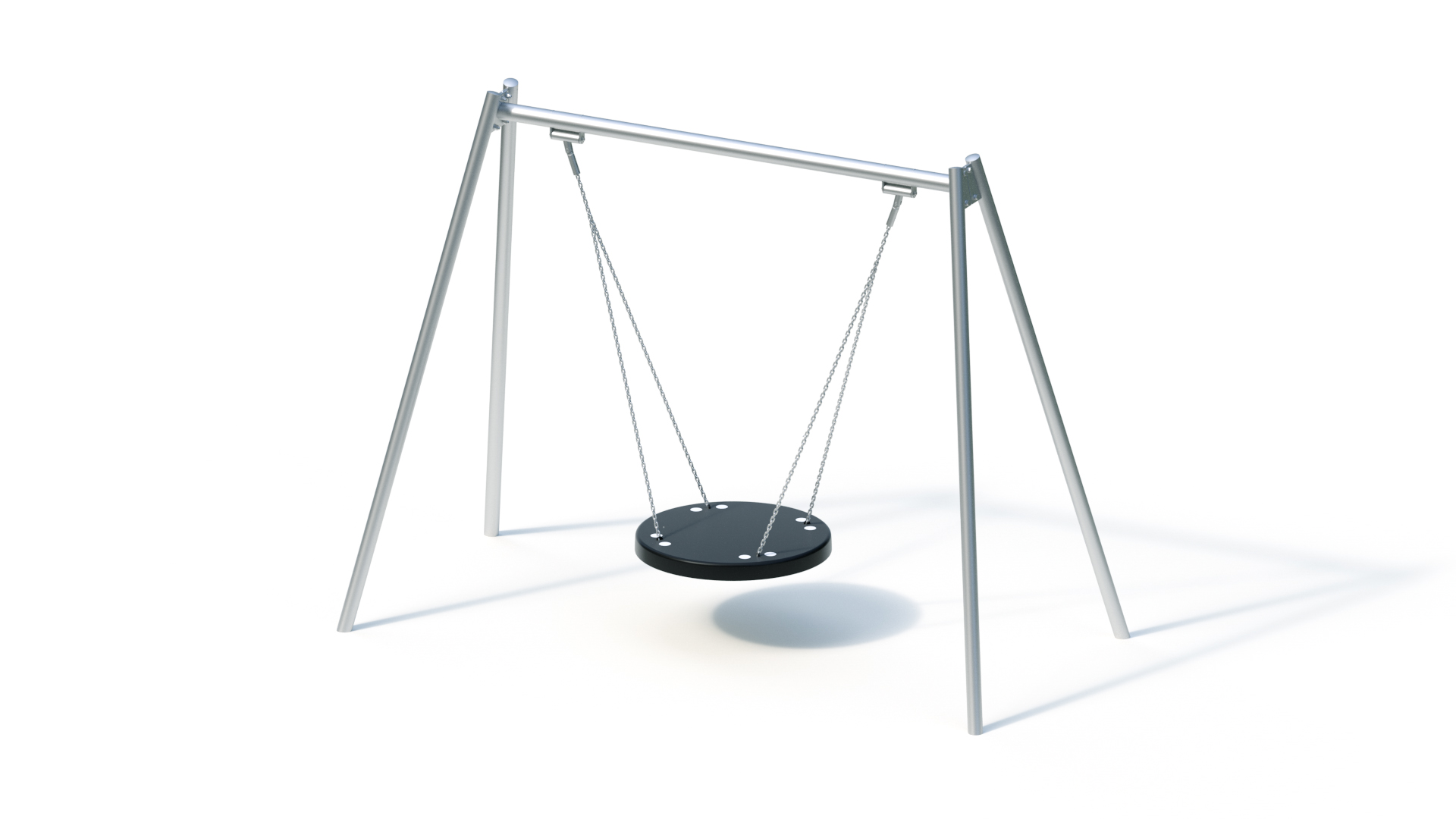

K&K Platform swing (2,50) stainless steel
Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | - |
| Benutzeranzahl ? | 5 Personen |
| Aktivitäten ? | - |
Technical data
| Mindestraumlänge ? | 7,89 m |
|---|---|
| Mindestraumbreite ? | 3,65 m |
| Mindestraumhöhe ? | 2,71 m |
| Gerätelänge ? | 1,75 m |
| Gerätebreite ? | 3,65 m |
| Gerätehöhe ? | 2,71 m |
| Freie Fallhöhe ? | 1,52 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 160.00 kg |
| Schwerstes Einzelteil ? | 40.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.7m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data

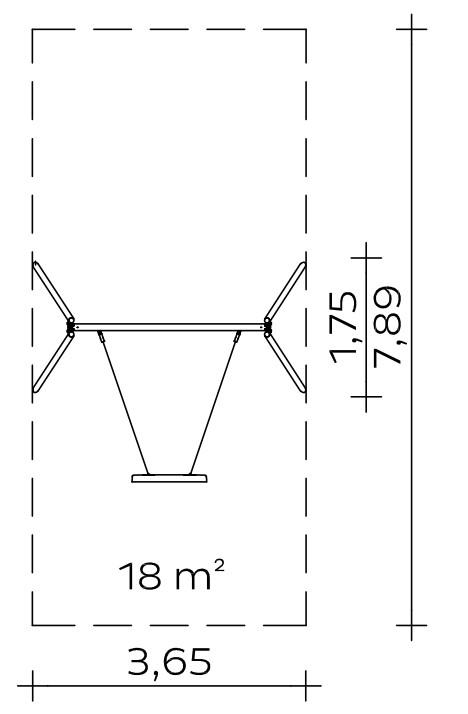

Floor area: 1.75 x 3.65 m
Minimum space: 3.65 x 7.89 m (18 m²)
Swing height: 2.50 m
Weight: 40 kg heaviest individual part
160 kg in total
- Swing supports made of stainless steel tube Ø 76.1 mm, wall thickness 3 mm; connection to swing support via connection plates
- Swing support made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm; connection to swing supports via connection plates
- Two-part swing axle made of stainless steel with roller bearings, including a second device for securing the swing seat to prevent it from falling down if the main attachment fails.
- Chain mount with plain bearing-mounted equalising transverse joint
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- on swing axles: chain attachment with stainless steel clamping adapter
- Large round rubber single-point swing seat Ø 100 cm, shock-absorbing, with shape-stabilising polyethylene core plate
- specially designed swivel and universal joints, designed for the high dynamic requirements of this platform swing, therefore no additional safety elements are required for the suspension system (in accordance with DIN EN 1176-2:2008)
Foundations (client-provided)
4 units 0.50 x 0.70 x 0.50 m
Concrete volume: 0.70 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,52 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 040328001
