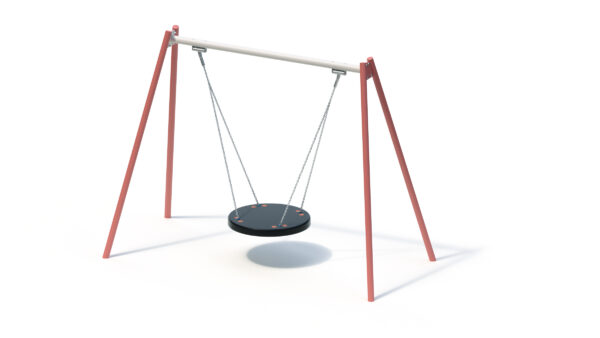

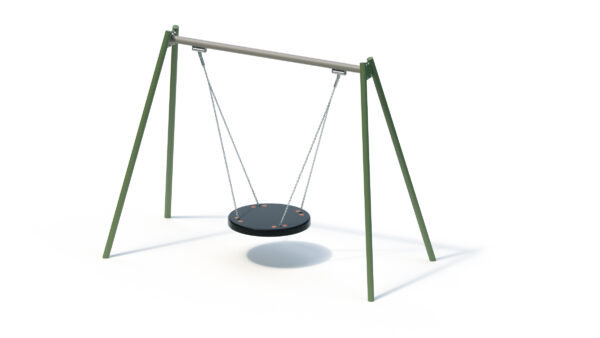

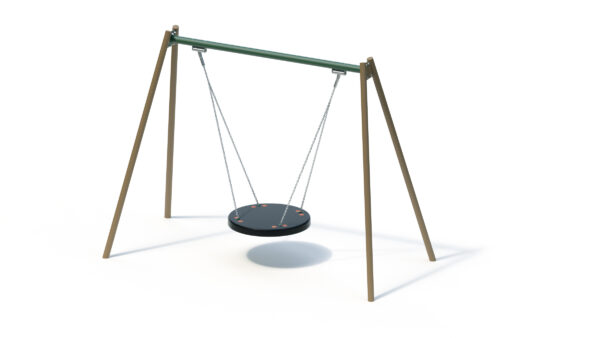

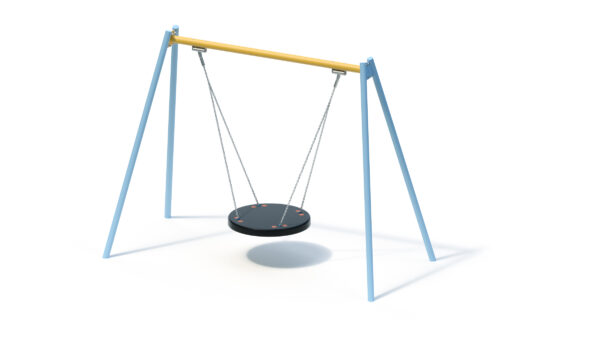

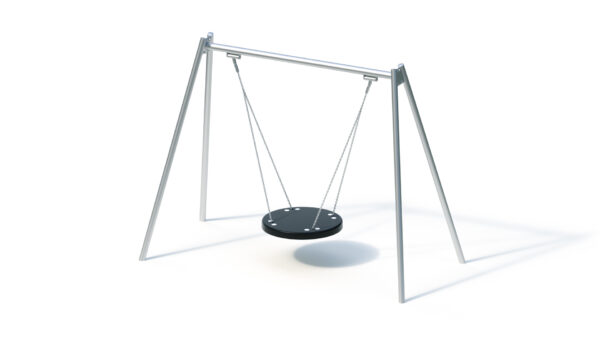

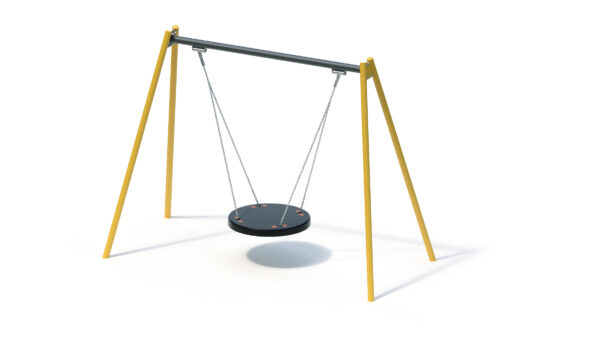

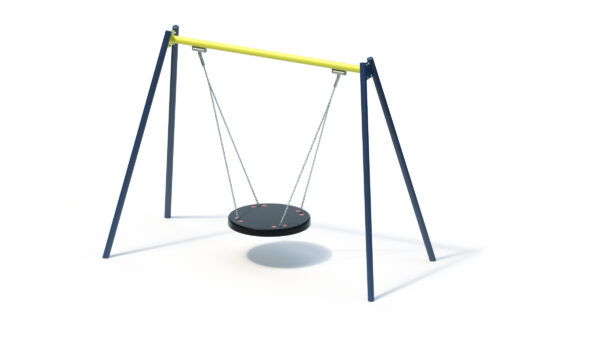

Platform swing (2.50) steel - hot-dip galvanised
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | - |
| Number of users ? | 5 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 7,89 m |
|---|---|
| Minimum space width ? | 3,65 m |
| Minimum space height ? | 2,71 m |
| Equipment length ? | 1,75 m |
| Equipment width ? | 3,65 m |
| Equipment height ? | 2,71 m |
| Free-fall height ? | 1,52 m |
| Platform heights | - |
| Total weight ? | 160.00 kg |
| Heaviest single part ? | 40.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.7m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data

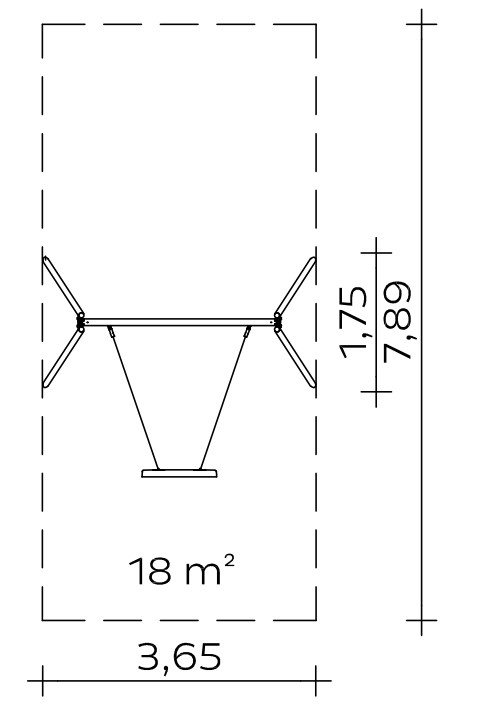

Floor area: 1.75 x 3.65 m
Minimum space: 3.65 x 7.89 m (18 m²)
Swing height: 2.50 m
Weight: 40 kg heaviest individual part
160 kg in total
- Swing supports made of steel tube Ø 76.1 mm, wall thickness 2.9 mm; hot-dip galvanised; connection to swing support via connecting plates
- Swing support made of tubular steel Ø 88.9 mm, wall thickness 3.2 mm; hot-dip galvanised; connection to swing supports via connecting plates
- Specially designed swivel and universal joints, designed for the high dynamic requirements of this platform swing
- Two-part swing axle made of stainless steel with roller bearings, including a second device for securing the swing seat to prevent it from falling down if the main attachment fails.
- Chain mount with plain bearing-mounted equalising transverse joint
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- on swing axles: chain attachment with stainless steel clamping adapter
- Large round rubber single-point swing seat Ø 100 cm, shock-absorbing, with shape-stabilising polyethylene core plate
Foundations (client-provided)
4 units 0.50 x 0.70 x 0.50 m
Concrete volume: 0.70 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,52 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 040325001
