Products
Non-Coil-Swing
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 3 people |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 7,85 m |
|---|---|
| Minimum space width ? | 6,30 m |
| Minimum space height ? | 2,54 m |
| Equipment length ? | 6,30 m |
| Equipment width ? | 0,20 m |
| Equipment height ? | 2,54 m |
| Free-fall height ? | 1,45 m |
| Platform heights | - |
| Total weight ? | 255.00 kg |
| Heaviest single part ? | 90.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (1m x 0.8m x 0.5m) |
Product Downloads
Product description
Technical data

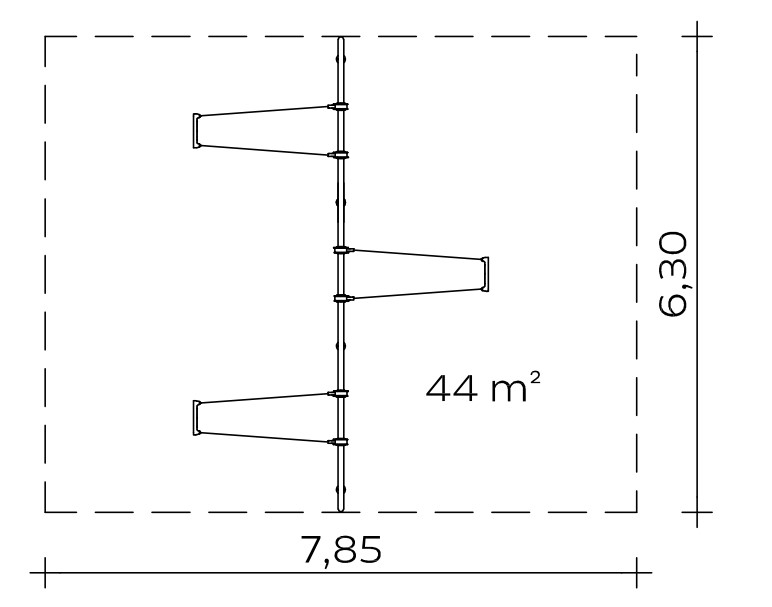

Minimum space: 6.30 x 7.85 m (44 m²)
Swing height: 2.40 m
Weight: 90 kg heaviest individual part
225 kg in total
- Support post made of stainless steel tube, Ø 120 mm, material 1.4301
- Swing support: stainless steel tube, Ø 76.1 mm, material 1.4301
- Swivel bearing: roller bearing including swivel, stainless steel bearing cover on the front side
- Swing chain Ø 7mm: stainless steel
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- on swing axle and swing seat: chain attachment with stainless steel clamping adapter
Foundations (client-provided)
4 units 0.80 x 1.00 x 0.50 m
Concrete volume: 1.6 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,45 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 040234001
This Kaiser & Kühne product enables:
