The 3D model is for spatial reference only. The colours may not match the selected variant.

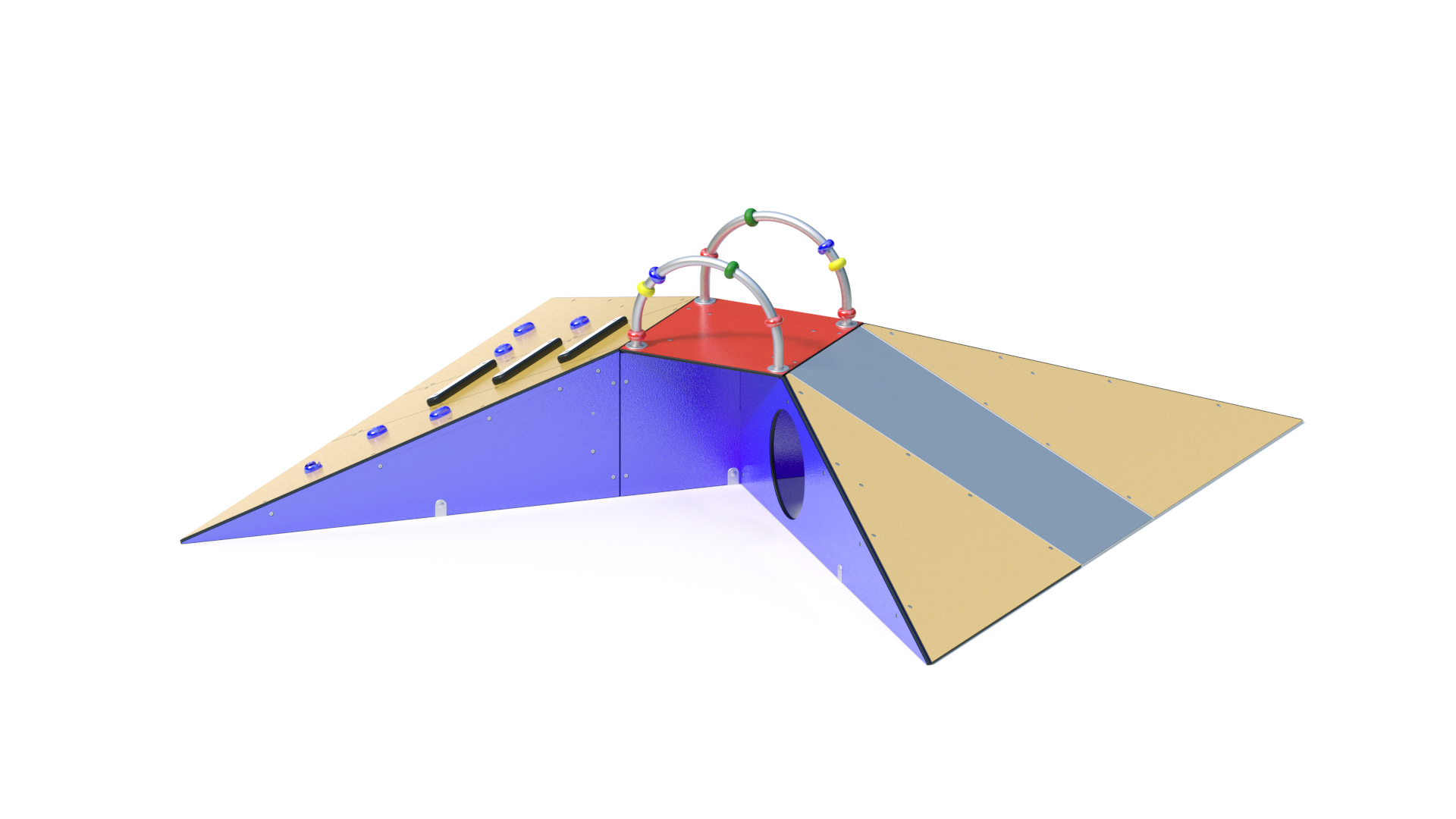

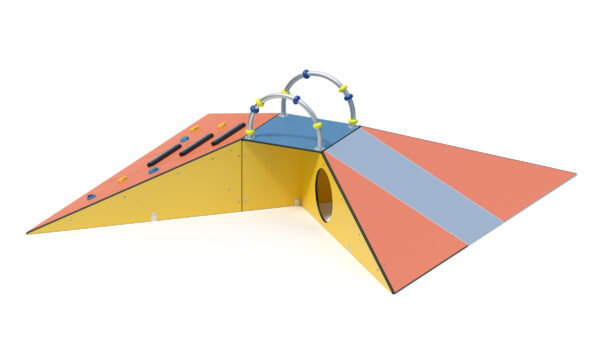

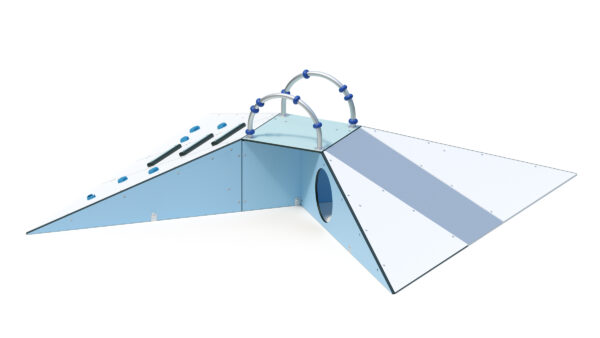

Play hill

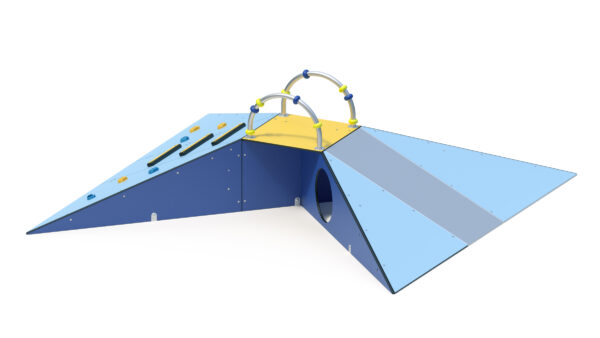

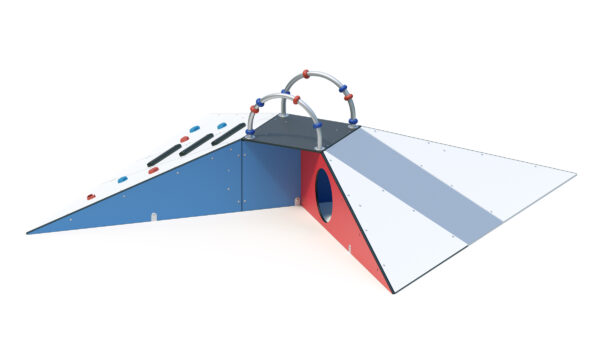

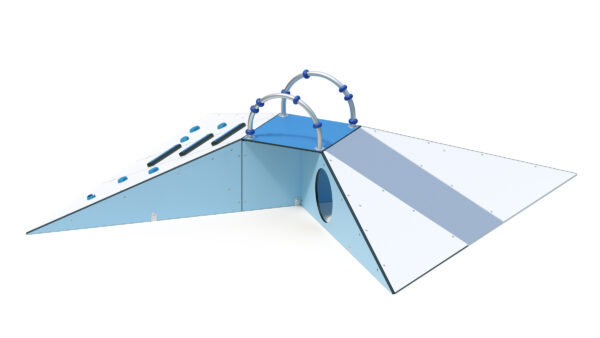

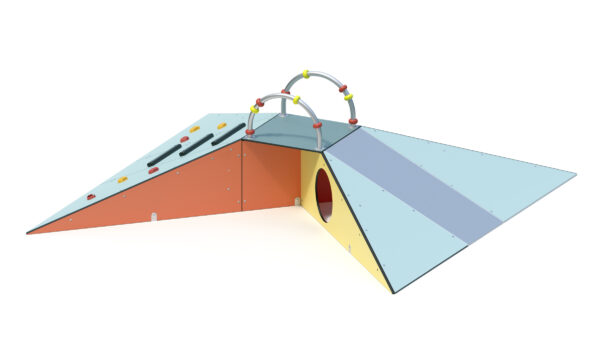

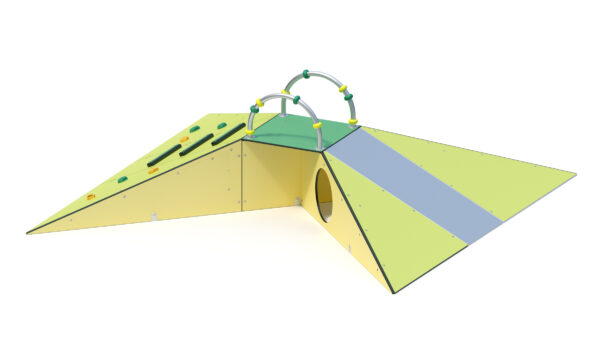

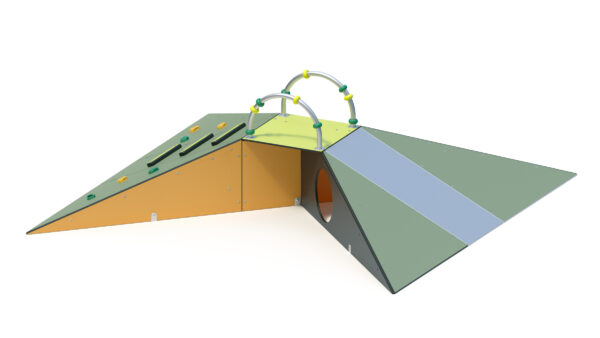

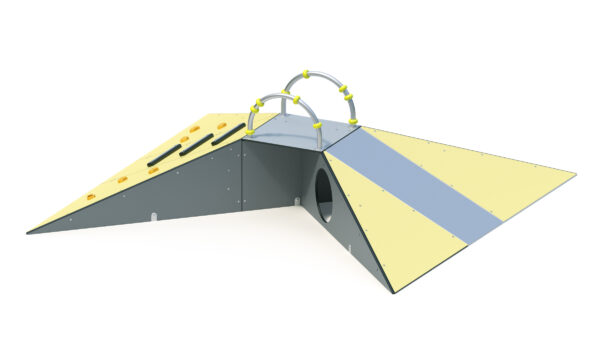

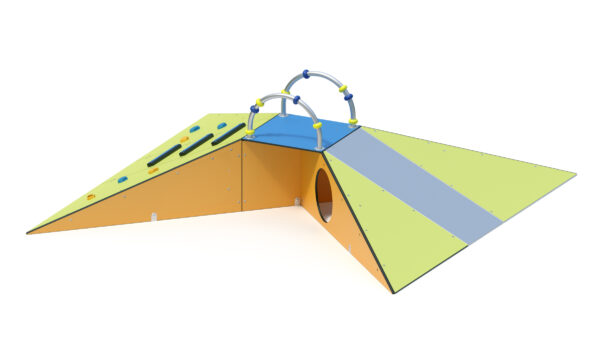

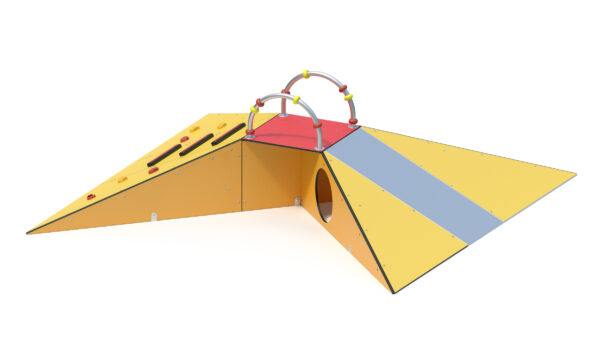

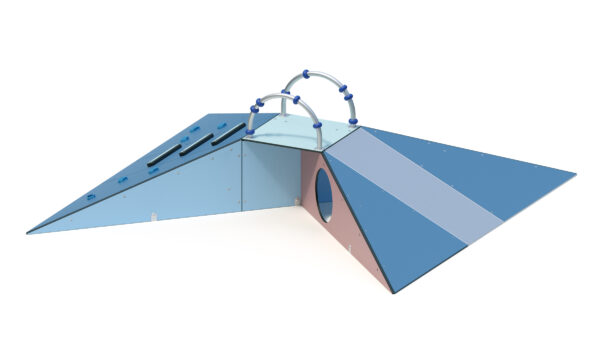

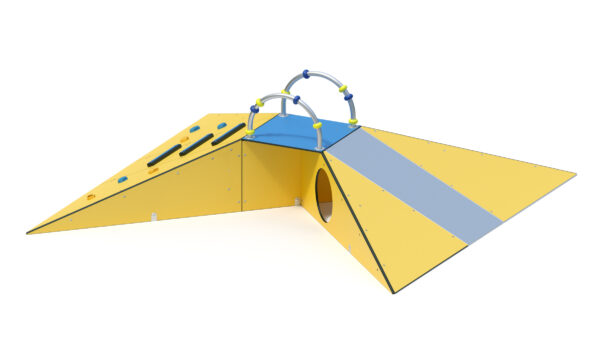

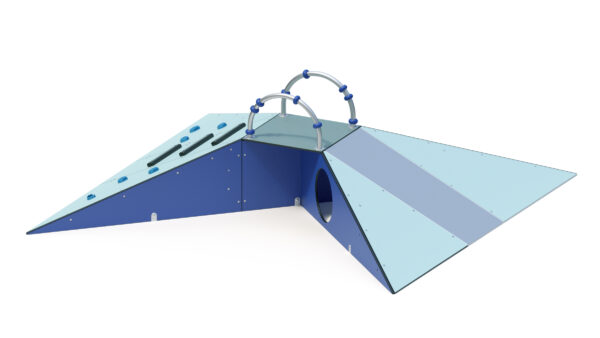

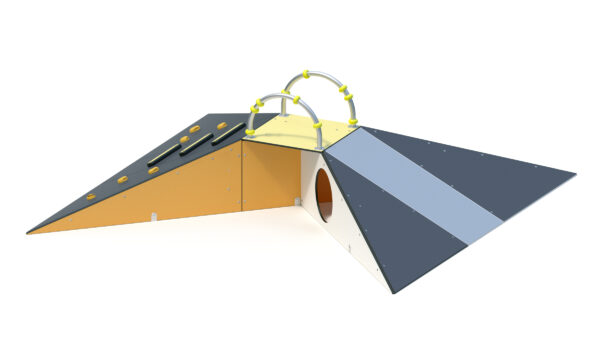

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 8 people |
| Activities ? | Physical activity, Climbing, Manual activity, Slide, Social activity |
Technical data
| Minimum space length ? | 6,15 m |
|---|---|
| Minimum space width ? | 6,15 m |
| Minimum space height ? | 1,00 m |
| Equipment length ? | 3,15 m |
| Equipment width ? | 3,15 m |
| Equipment height ? | 1,00 m |
| Free-fall height ? | 0,58 m |
| Platform heights | - |
| Total weight ? | 215.00 kg |
| Heaviest single part ? | 20.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 5 (1m x 0.2m x 0.1m) |
Product Downloads
Product description
Technical data

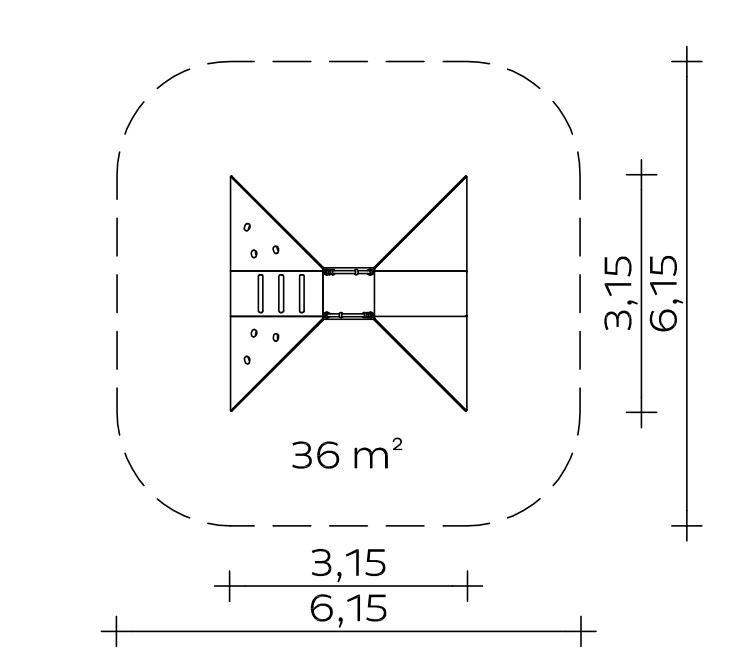

Floor area: 3.15 x 3.15 m
Minimum space: 6.15 x 6.15 m (36 m²)
Total height: 1.00 m
Platform height: 0.58 m
Weight: 20 kg heaviest individual part
215 kg in total
Attachments
- Platform floor, ramp and side panels (some with crawl opening Ø 410 mm) made of coloured, highly weather-resistant HPL laminate panels 10/13 mm.
- Sliding surface made of stainless steel sheet 1362.1 x 615.1 x 3 mm
- School climbing holds made of polyurethane (PU) with steel insert for fastening with countersunk screws, in accordance with DIN EN 1176-1 (playground standard) and DIN EN 12572-3 (climbing wall standard)
- Ball railing made of stainless steel tube 38 x 2mm, with ABACUS rings Ø 72 x Ø 40 x 34 made of polypropylene (red, blue, green and yellow)
- Climbing rungs made of weather-resistant HPL laminate 30 mm (white),
- Foundation anchor made of stainless steel tube 38 x 2 mm for setting in concrete
Metal components: Stainless steel.
- As an option, we can offer you various interchangeable play functions for an extra charge and to increase the play value: Cockpit, gear wheels, mirror, sliding game, worm wheel, effect disc or sliding balls.
Please note that the play hill is supplied prepared for two of the above-mentioned play functions. When ordering, please clarify which play functions the play hill is to be equipped with.
Foundations (client-provided)
Tamping or
for light soils: 5 pieces 1.00 x 0.20 x 0.20 m = 0.04 m³
Concrete quantity: 0.20 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
0,58 m
Suitable for
Children from 1 - 6 years,
public playgrounds etc.
Movement activities/social activities
Item number: 039010000
