Mini zoo

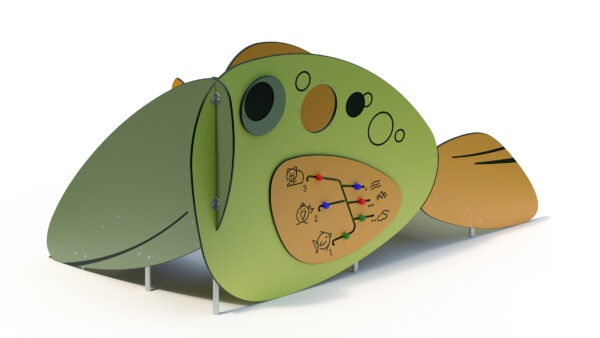

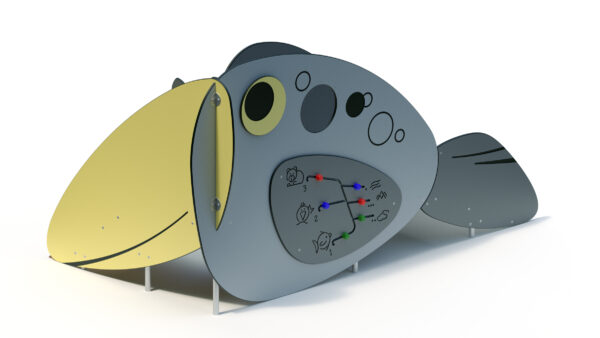

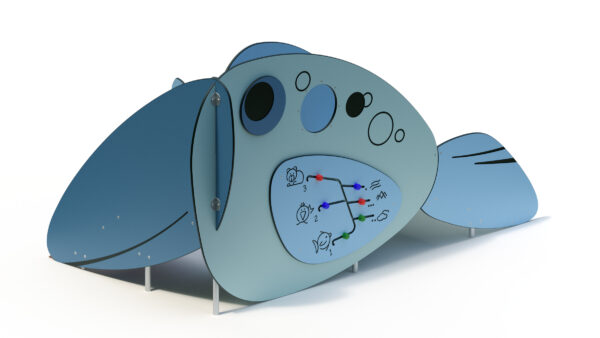

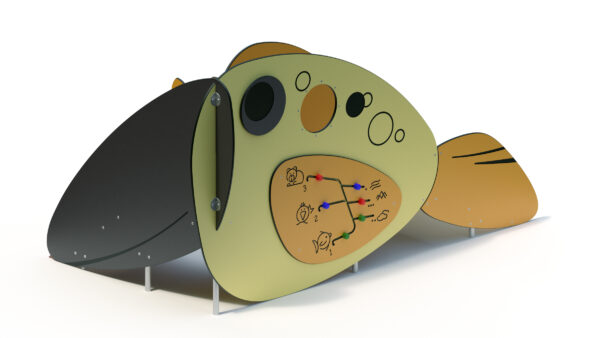

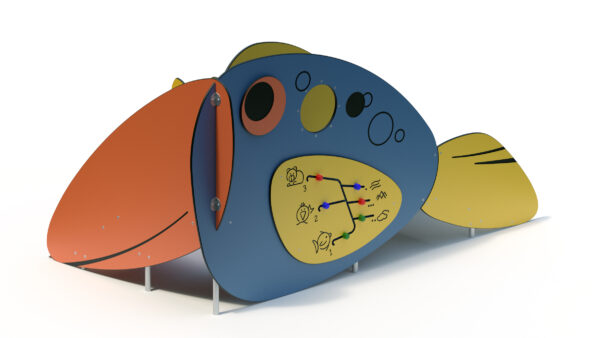

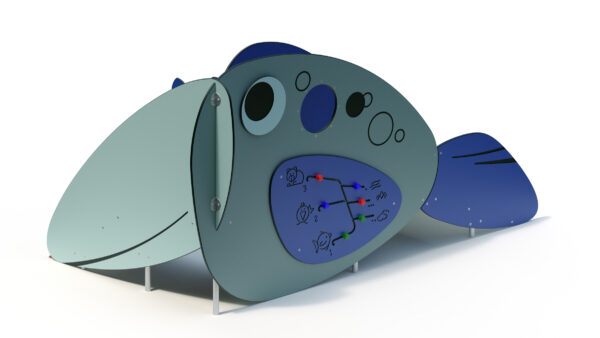

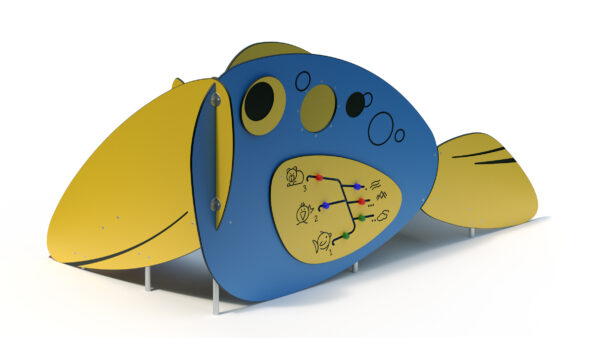

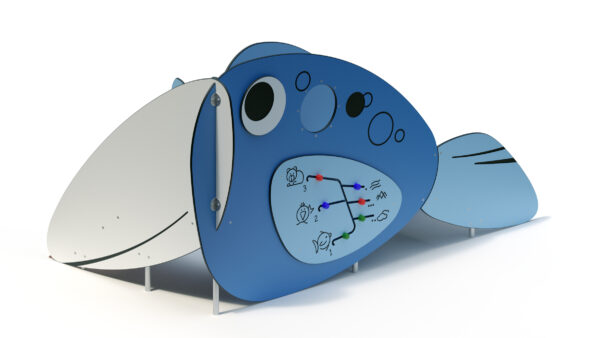

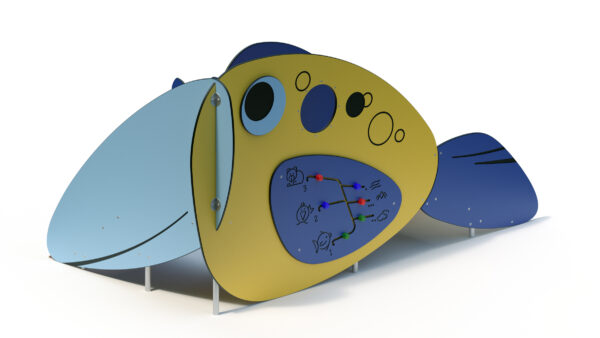

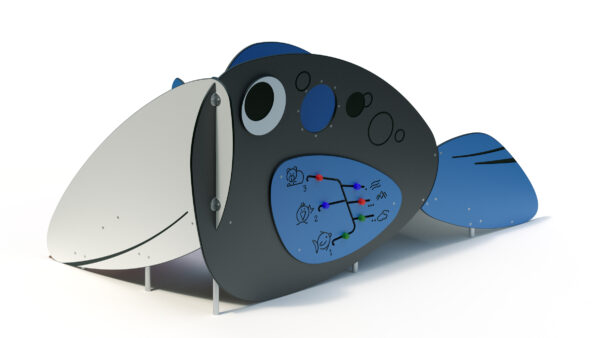

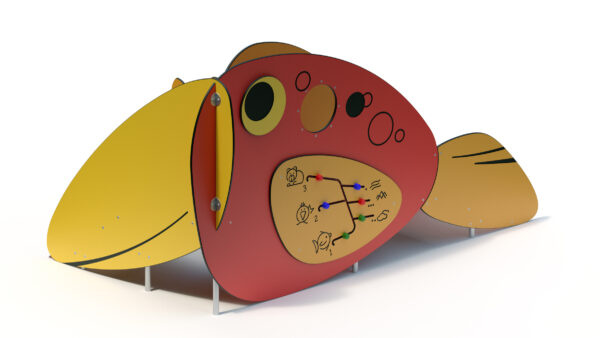

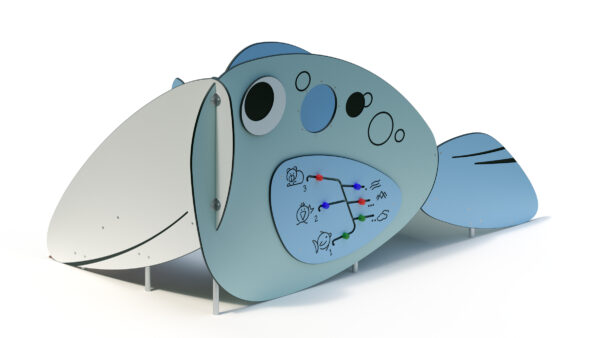

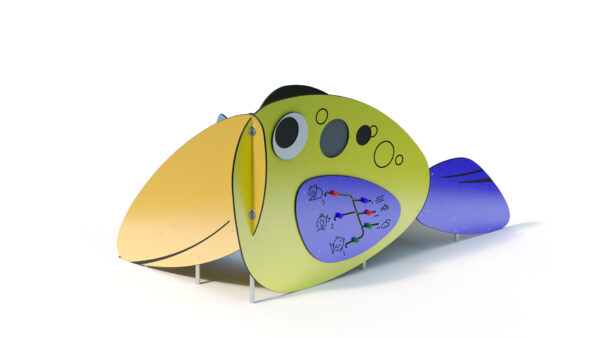

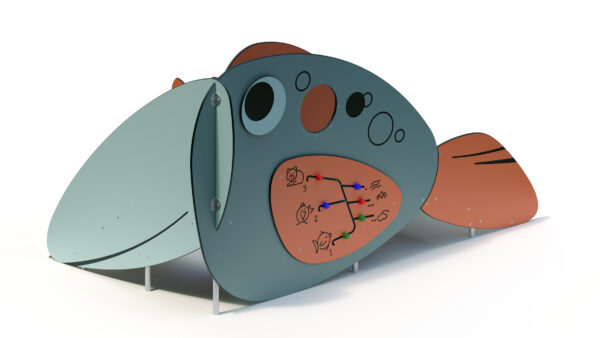

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 6 persons |
| Activities ? | Climbing, Manual activity, Slide, Social activity |
Technical data
| Device length ? | 2,70 m |
|---|---|
| Device width ? | 1,60 m |
| Device height ? | 1,50 m |
| Free fall height ? | 0,58 m |
| Platform heights | - |
| Total weight ? | 210.00 kg |
| Heaviest single item ? | 40.00 kg |
| Minimum room length ? | 5,70 m |
| Minimum room width ? | 4,60 m |
| Minimum room height ? | 1,50 m |
Assembly & Foundations
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 persons |
| Lifting gear required | - |
| Foundations | 100x020x010 |
Product Downloads
Product description
Technical data

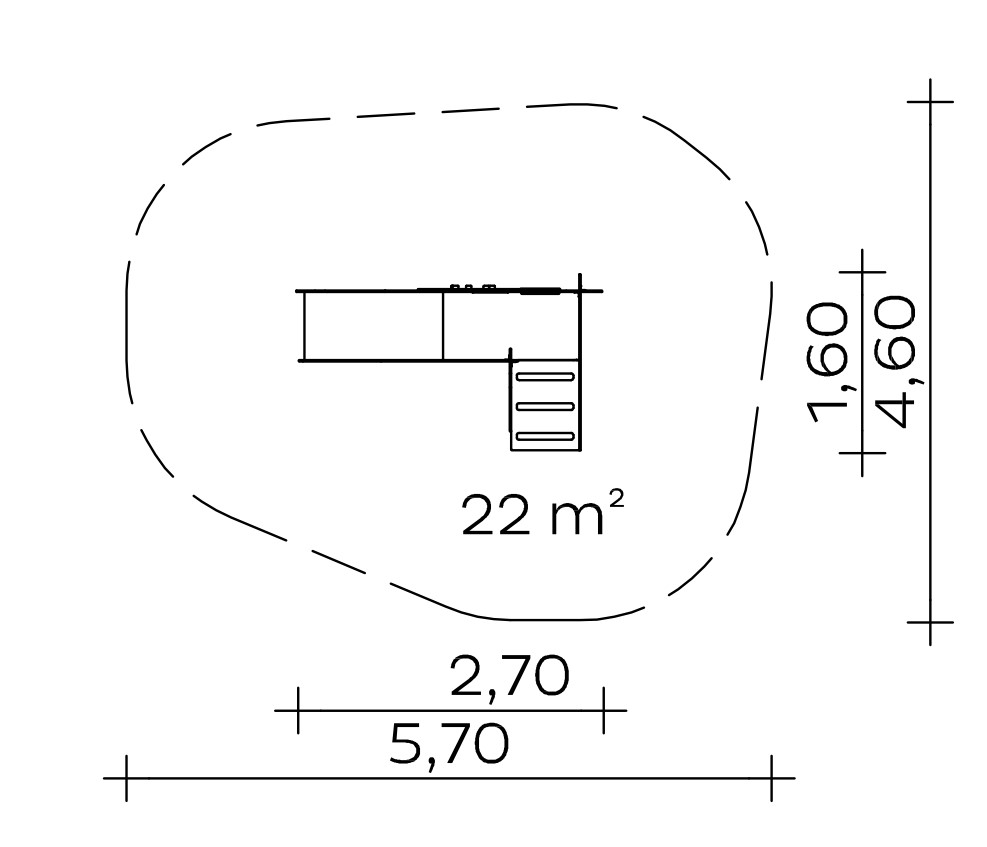

Base area: 1.60 x 2.70 m
Minimum space: 4.60 x 5.70 m (22 m²)
Total height: 1.50 m
Platform height: 0.58 m
Weight: 40 kg heaviest individual part
210 kg in total
Attachments
- Supports made of stainless steel tube Ø 33.7 x 2 mm
- Platform floor, ramp and side panels made of coloured, highly weather-resistant HPL laminate panels 13 mm
- Georgian bars made of coloured, highly weather-resistant HPL laminate panels 25 mm
- Sliding surface made of 3 mm stainless steel sheet
- Bear head panel made of highly weather-resistant HPL laminate 13 mm
- Bear body panel made of highly weather-resistant 13 mm HPL laminate
- Iceberg panel made of highly weather-resistant 13 mm HPL laminate
- Schnabel Vogel panel made of highly weather-resistant 13 mm HPL laminate
- Top body Vogel made of highly weather-resistant HPL laminate 13 mm
- Sash with sliding play: Sash sliding play panel made of highly weather-resistant HPL laminate 13 mm, disc for sliding play
- Sliding balls: Stainless steel tube Ø 38 x 2 mm with 3 polypropylene rings
- Tail fish panel made of highly weather-resistant HPL laminate 13 mm
- Polycarbonate viewing window
- Eye and flower made of highly weather-resistant HPL laminate 13 mm, fastening with bearing disc made of POM
- Sash made of highly weather-resistant HPL laminate 13 mm, with stainless steel sliding blocks
- Polycarbonate viewing window
- Sliding balls: Stainless steel tube Ø 38 x 2 mm with 3 polypropylene rings
As an option, we offer you various interchangeable play functions for an additional charge and to increase the play value: Cockpit, cogwheels, mirror, sliding game, worm wheel or effect disc.
Please note that the K&K Minizoo is delivered prepared for the inclusion of one of the above-mentioned play functions. Please clarify which play functions the K&K Minizoo is to be equipped with when placing your order.
Metal components: Stainless steel
Foundations (client-provided)
Tamping
(For light soils: 5 pieces 1.00 x 0.20 x 0.10 m = 0.02 m³)
Concrete quantity: 0.1 m³
Assembly time
- is delivered pre-assembled in one piece
Free fall height
0,58 m
Suitable for
Children from 1-6 years,
public playgrounds etc.
Movement activities/social activities
Item number: 039005000
