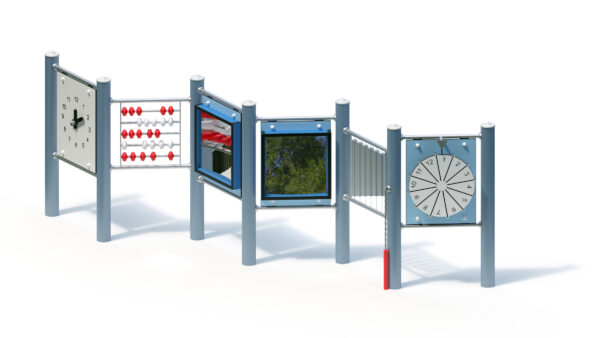

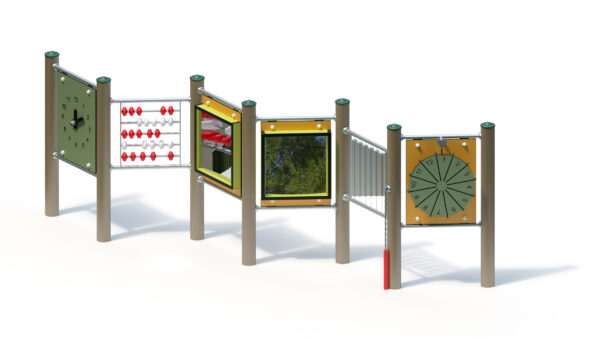

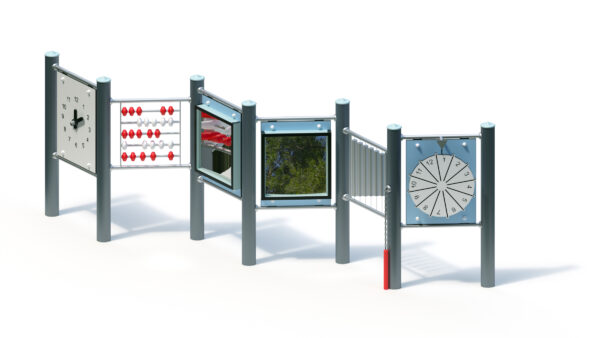

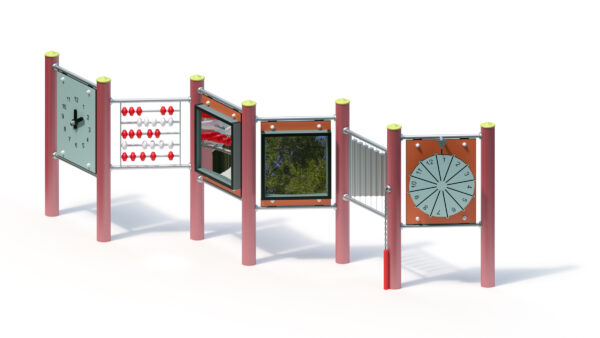

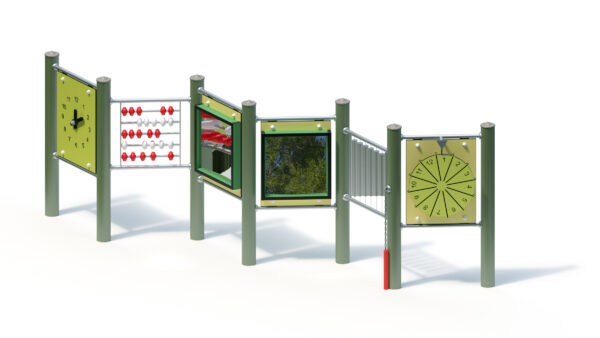

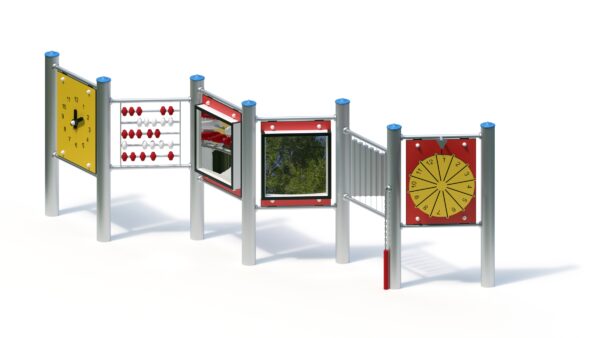

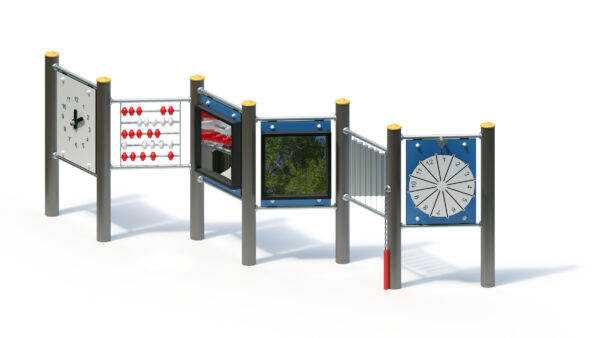

The 3D model is for spatial reference only. The colours may not match the selected variant.

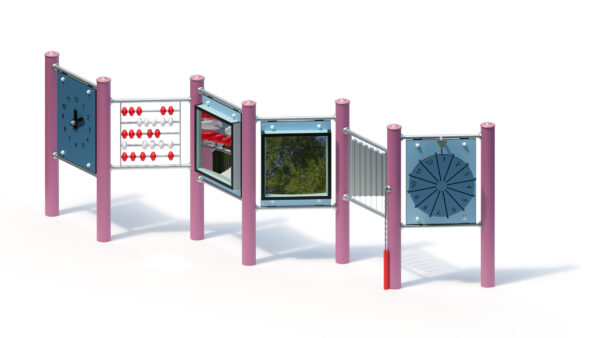

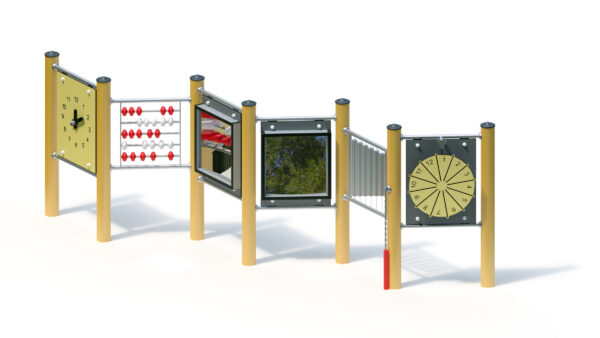

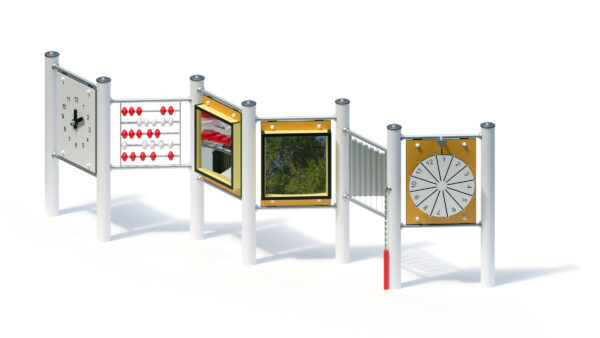

Leporello
Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 12 people |
| Activities ? | Manual activity |
Technical data
| Minimum space length ? | 7,30 m |
|---|---|
| Minimum space width ? | 3,55 m |
| Minimum space height ? | 1,50 m |
| Equipment length ? | 4,15 m |
| Equipment width ? | 0,50 m |
| Equipment height ? | 1,50 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 310.00 kg |
| Heaviest single part ? | 40.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 7 (0.4m x 0.4m x 0.6m) |
Product Downloads
Product description
,Technical data

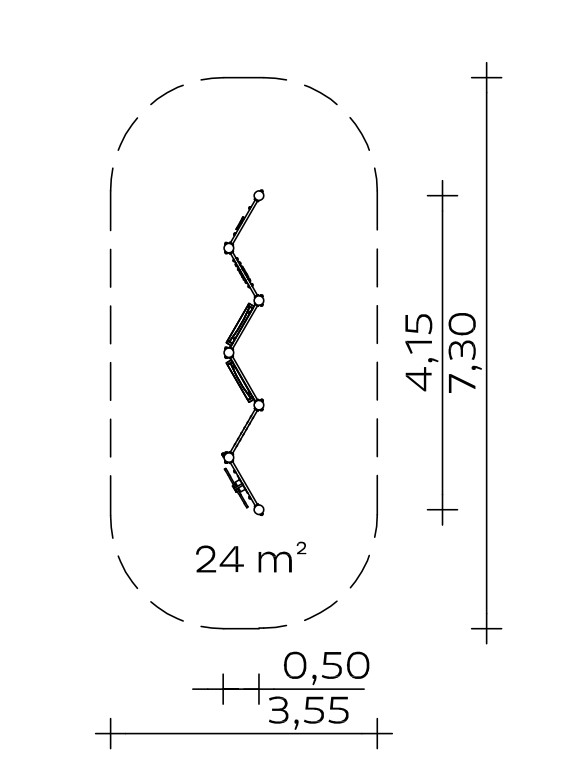

Total height: 1.50 m
Base area: 0.50 x 4.15 m
Impact area: 3.55 x 7.30 m (24 m²)
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Panelled balustrade made of highly weather-resistant HPL laminate. Fastened between stainless steel tubes Ø 33.7×2 mm. Clock hands made of HPL laminate for manually setting the time
- Concave/convex mirror made of highly polished stainless steel in HPL frame
- Wheel of fortune wall made of HPL laminate, 15 mm
- Slide rule: elements made of polyamide or PVC, Ø 80 mm
- Stainless steel sound tubes, suspended on wire ropes. Attached between stainless steel tubes Ø 33.7 x 2 mm. Incl. PVC sound mallet, attached to a stand post with a stainless steel chain
Foundations (client-provided)
7 units 0.40 x 0.40 x 0.60 m
Concrete volume: 0.67 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Suitable for
all age groups,
public playgrounds etc.
Item number: 037214500
This Kaiser & Kühne product enables:
