Clock
Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 2 people |
| Activities ? | Manual activity |
Technical data
| Minimum space length ? | 3,95 m |
|---|---|
| Minimum space width ? | 3,15 m |
| Minimum space height ? | 1,50 m |
| Equipment length ? | 0,95 m |
| Equipment width ? | 0,12 m |
| Equipment height ? | 1,50 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 40.00 kg |
| Heaviest single part ? | 15.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.4m x 0.4m x 0.6m) |
Product Downloads
Product description
Technical data

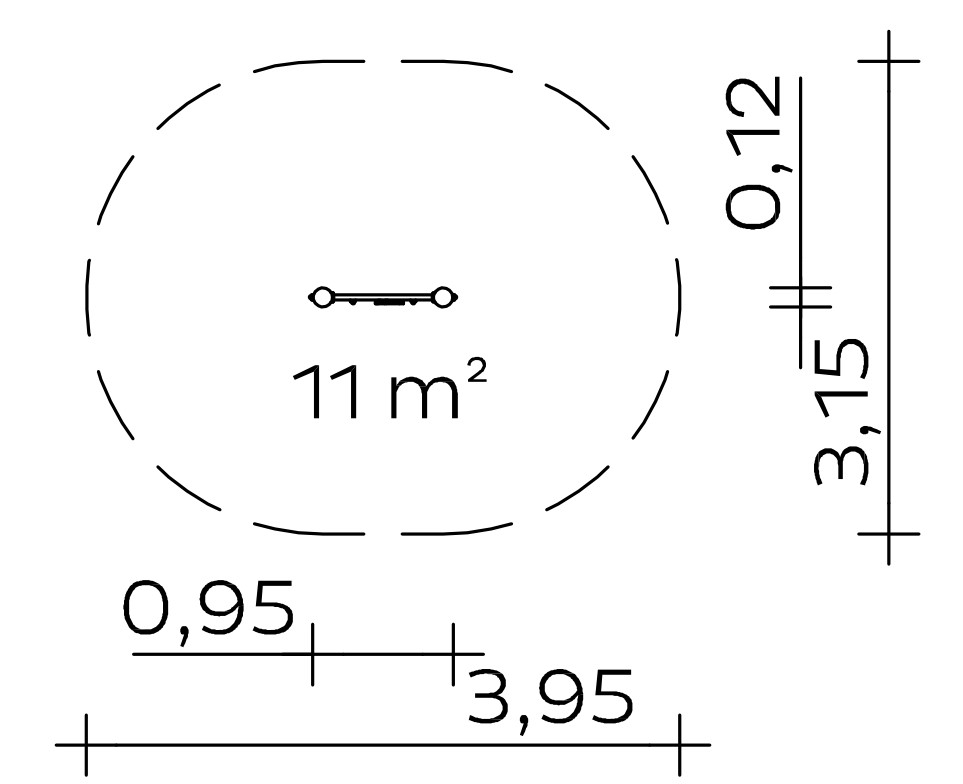

Base area: 0.12 x 0.95 m
Minimum space: 3.15 x 3.95 m (11 m²)
Total height: 1.50 m
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Panel balustrade made of coloured, highly weather-resistant HPL laminate (yellow). Fastening between stainless steel tubes Ø 33.7x 2 mm
- Clock hands made of blue HPL laminate for manually setting the time
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
2 units 0.40 x 0.40 x 0.60 m
Concrete volume: 0.19 m³
Assembly time
2 fitters 0.5 hours each
(without foundation)
Suitable for
all age groups,
public playgrounds etc.
Manual activities
Item number: 037203700
This Kaiser & Kühne product enables:
