Clock

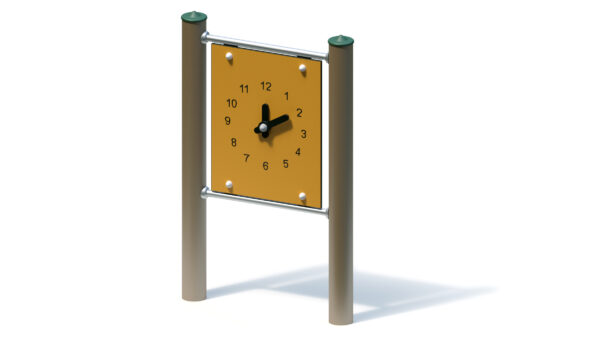

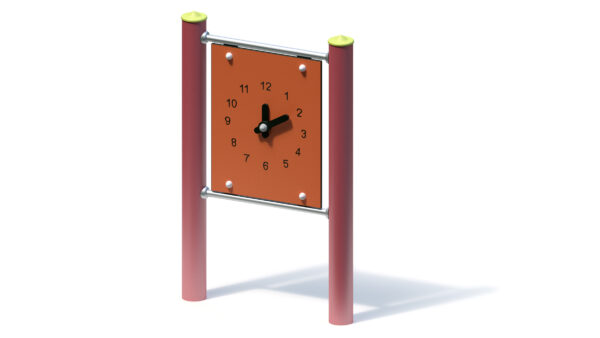

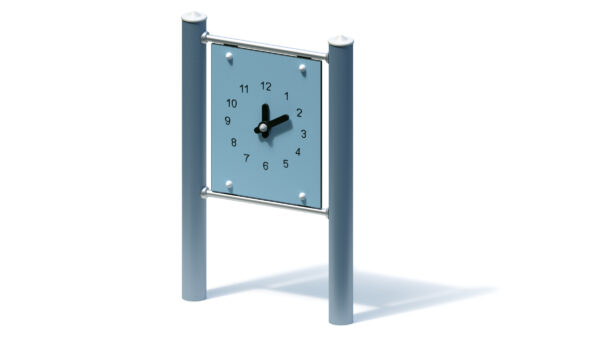

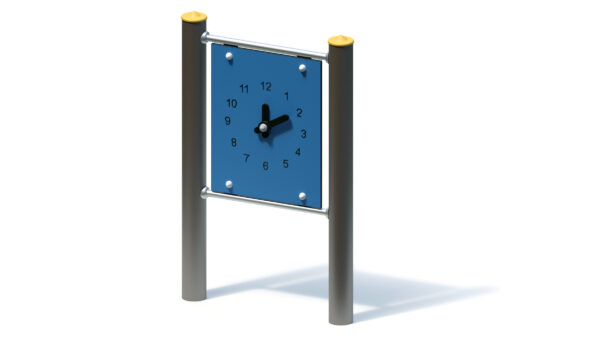

Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 1 Personen |
| Aktivitäten ? | Manual activity |
Technical data
| Mindestraumlänge ? | 3,95 m |
|---|---|
| Mindestraumbreite ? | 3,15 m |
| Mindestraumhöhe ? | 1,50 m |
| Gerätelänge ? | 0,95 m |
| Gerätebreite ? | 0,12 m |
| Gerätehöhe ? | 1,50 m |
| Freie Fallhöhe ? | 0,00 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 40.00 kg |
| Schwerstes Einzelteil ? | 15.00 kg |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (0.4m x 0.4m x 0.6m) |
Product Downloads

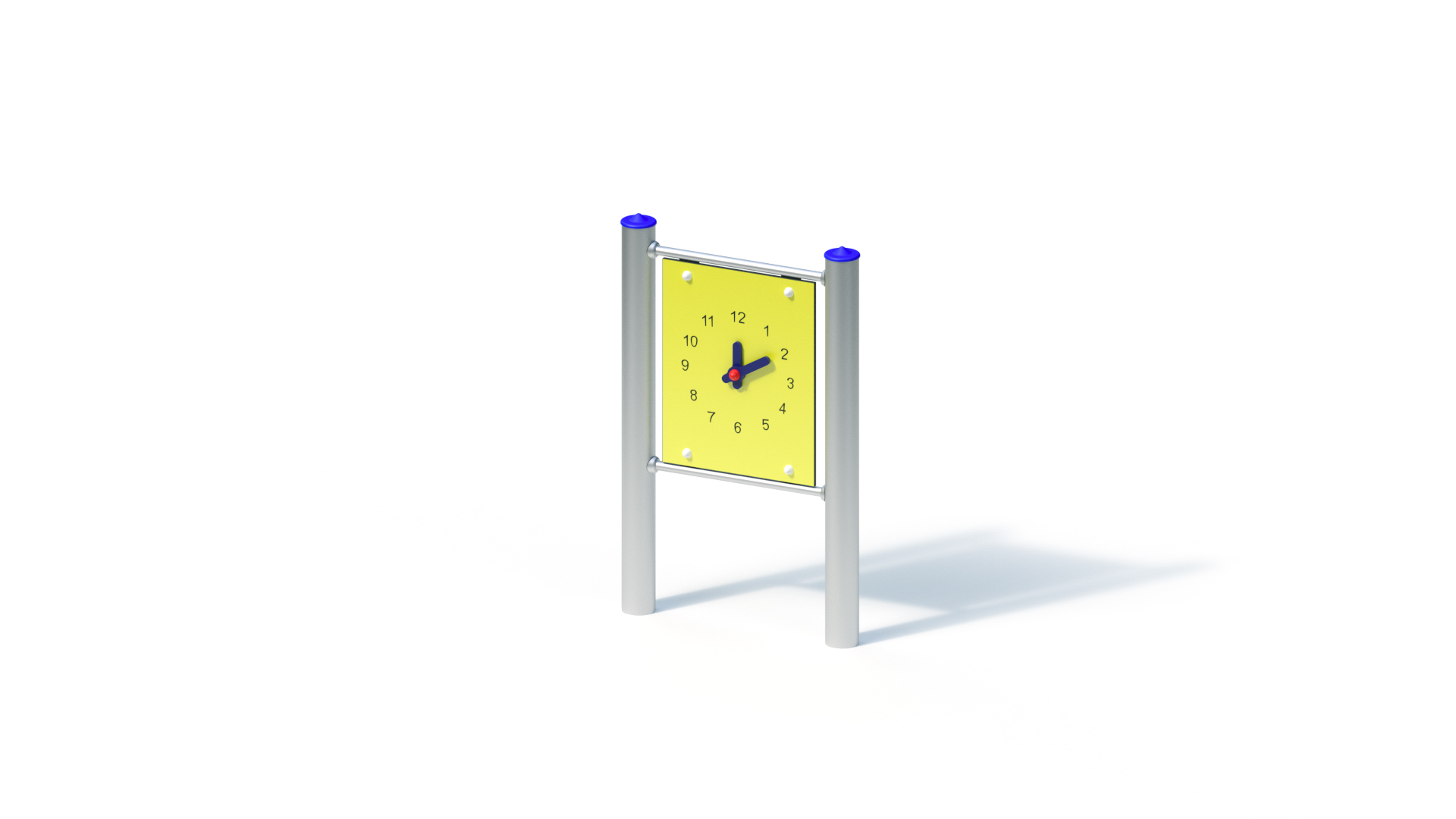

Product description
Technical data

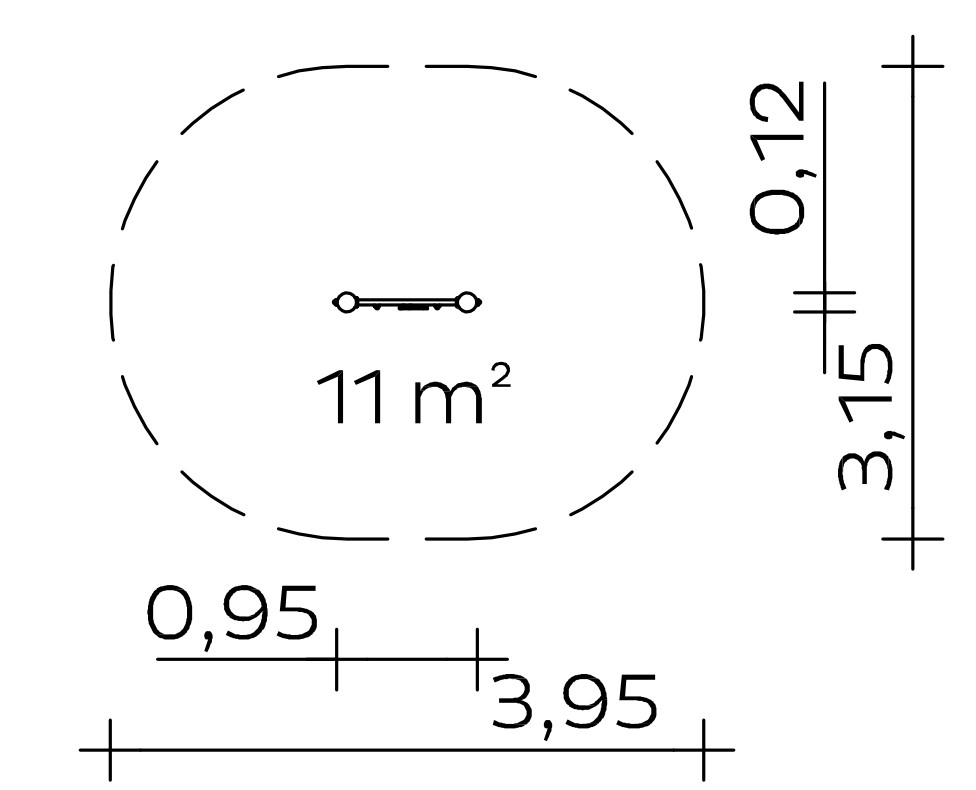

Base area: 0.12 x 0.95 m
Minimum space: 3.15 x 3.95 m (11 m²)
Total height: 1.50 m
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Panel balustrade made of highly weather-resistant HPL laminate (yellow), fastened between stainless steel tubes Ø 33.7×2 mm
- Clock hands made of HPL laminate (blue) for manually setting the time
Metal components: Stainless steel. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
2 units 0.40 x 0.40 x 0.60 m
Concrete volume: 0.19 m³
Assembly time
2 fitters 0.5 hours each
(without foundation)
Suitable for
all age groups,
public playgrounds etc.
Manual activities
Item number: 037203500
