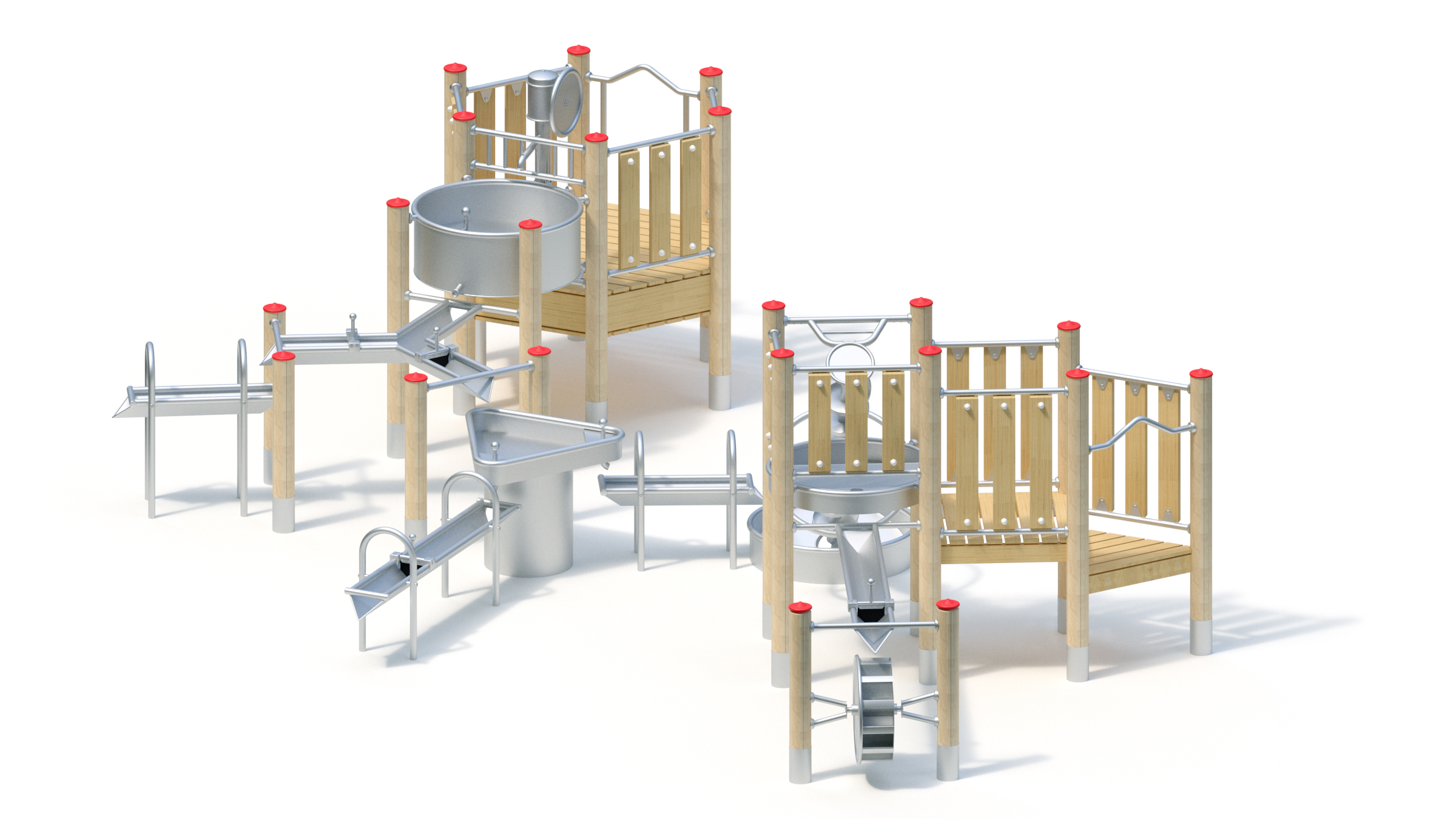

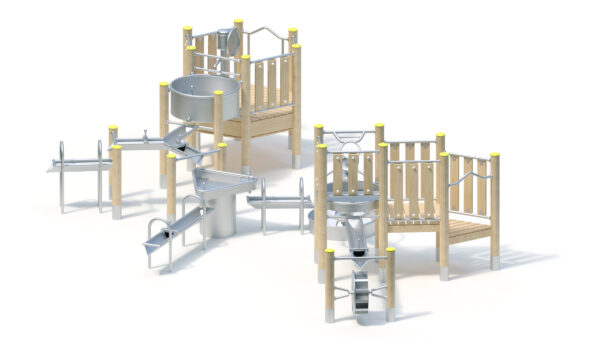

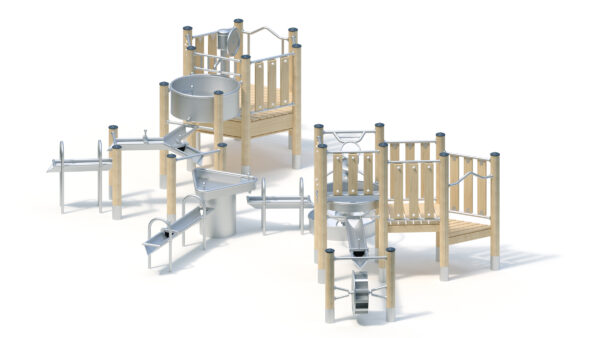

Technical data

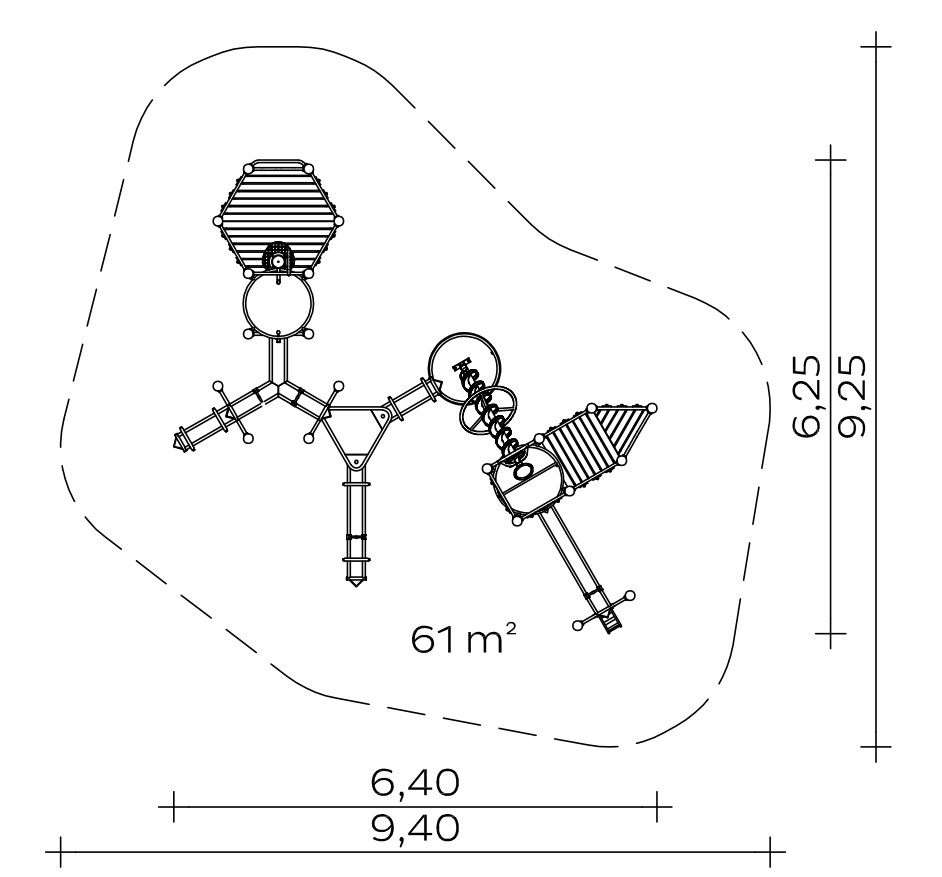

Floor area: 6.25 x 6.40 m
Minimum space: 9.25 x 9.40 m
Platform heights: 0.60/0.80 m

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Pump pedestal also with profiled stainless steel sheet and prepared for installation of the valve combination included in this water feature. The valve combination will be located directly below the pump platform. An additional shaft for the valve combination is therefore not required.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube and balustrade tubes arranged vertically on both sides
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 mm
- Climbing rung made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof

Water pump with handwheel Article no. 0-33131-001
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with handwheel must be removed, e.g. during the frost period.
Cover („winterisation plate“) for the remaining pump base is supplied.

Valve combination 1 1/4″ with hygienic flush (installed below the platform floor)
Device for direct connection of the water pump to a pressurised water pipe with fine filter for cleaning the water of suspended matter, dirt particles, etc., in order to prevent the diaphragm valves from becoming contaminated and thus prevent malfunctions.
Including K&K hygienic flushing: Device for automatic flushing of the pipework between the valve combination and K&K water pump with timer and non-return valve, designed for flushing a maximum of 30 m DN 40. Control unit consisting of control module, waterproof welded-in 6 V battery. Hygiene flush set to a 12-hour cycle at the factory.
The valve combination should be connected by a specialised installation company.

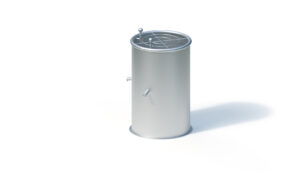

Water reservoir
Base area: Ø 0.86 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Connection to post.

Y-channel
Y-shaped water channel with one inlet area and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm.
Including 2 storage flaps, freely positionable, stainless steel handle, rubber blade with fabric insert.

Water channel 0.80 m, 2 pieces
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Bevelled spout.
Stepless inclination for installation for the required gradient for the water inlet and outlet through additional elevation.

Water channel 1.60 m
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Bevelled spout.
Stepless inclination for installation for the required gradient for the water inlet and outlet through additional elevation.
Including storage flap, freely positionable, stainless steel handle, rubber blade with fabric insert.

Water distribution table (0.75) Article no. 0-33481-000
Total height: 0.90 m
Welded stainless steel construction with 2 water drain pipes. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Matching ring foundation (15166) for anchoring to the flange ring and moulded stones (15167) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Conveyor basin solitary
Welded stainless steel construction with mounting device for the base bearing of the water spiral. Water inlet directly below or above the pipe ring. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Water outlet opening closed by cylinder screw. Matching ring foundation (15168) for anchoring to the flange ring and moulded stones (15169) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Water spiral (2.00) Handwheel drive and top turntable
Spiral length: 2.00 m
Outer diameter: 0.25 m
Welded stainless steel construction with roller bearings, screw-on foot bearing.

Modular catch basin
Welded stainless steel construction for water absorption with drain pipe. Sheet thickness: min. 2 mm / pipe Ø 38 mm. For connection to posts.

Water channel type 1.60 m / water wheel 0.60 m
Welded stainless steel construction with elevation and water channel. Sheet thickness: min. 2 mm. Water wheel consisting of 12 blades, folded flat at the front and enclosed by side walls. Wheel bearings with maintenance-free roller bearings.

Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
21 units 0.40 x 0.40 x 0.40 m
6 pcs. 0.50 x 0.50 x 0.50 m

Assembly time
2 fitters 8 hours each.
(without foundation, without water connection)

Free fall height
1,15 m

Suitable for
Children aged 3 and over,
public playgrounds etc.,
Manual activities

Item number: 034370700
