Water play structure
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | supervised playgrounds |
| Benutzeranzahl ? | 19 Personen |
| Aktivitäten ? | Manual activity |
Technical data
| Mindestraumlänge ? | 8,00 m |
|---|---|
| Mindestraumbreite ? | 6,60 m |
| Mindestraumhöhe ? | 1,70 m |
| Gerätelänge ? | 5,00 m |
| Gerätebreite ? | 3,60 m |
| Gerätehöhe ? | 1,70 m |
| Freie Fallhöhe ? | 1,25 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 405.00 kg |
| Schwerstes Einzelteil ? | 60.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 12 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: approx. 1.70 m

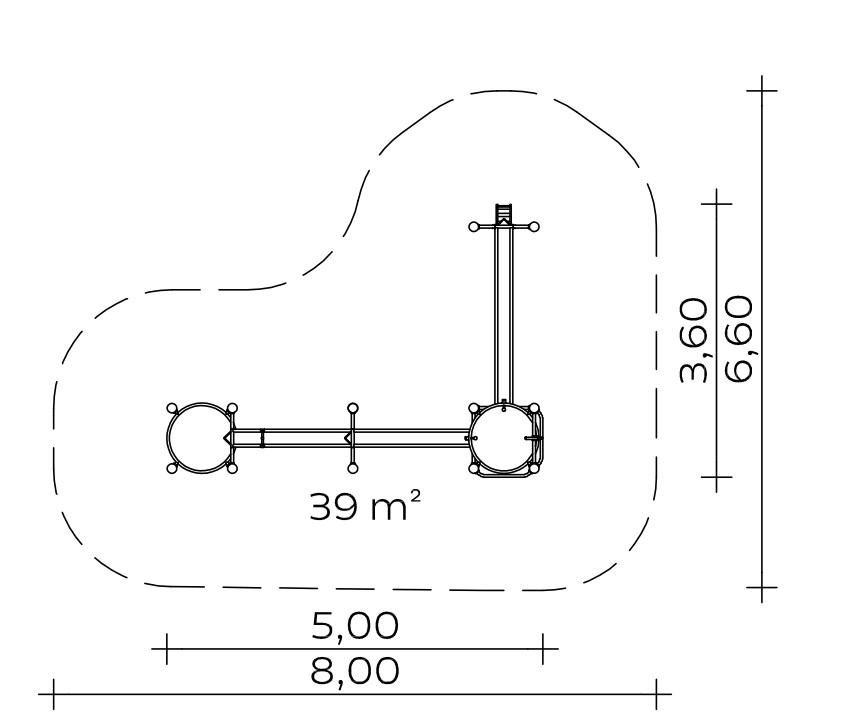

Floor area: approx. 3.60 x 5.00 m
Minimum space: approx. 6.60 x 8.00 m (39 m²)
Weight: 60 kg heaviest individual part
405 kg in total
Support post
Stainless steel posts Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Stainless steel retaining tube, Ø 38 x 2.5 mm, torsion-proof
- Climbing rungs (cranked) made of stainless steel, Ø 33.7 x 2 mm
Water spout article no. 0-33125-000
Welded stainless steel construction, clamping part for attaching to pipe Ø 38 mm, with connection element suitable for connecting a garden hose with 1/2″ or 3/4″ hose section. (e.g. Gardena® or comparable).
Water reservoir
Base area: Ø 0.86 m
Welded stainless steel construction with 2 water drain pipes. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness: min. 2 mm/pipe Ø 33.7 mm. Connection to posts.
Water channel 2.40 m
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm. For connection to support posts, with stepless inclination for installation for the required gradient for the water inlet and outlet.
Water wheel Ø 0.60 m
Welded stainless steel construction, 12 blades, folded flat at the front and enclosed by side walls. Sheet thickness min. 2 mm. Wheel bearings with roller bearings.
Water channel 1.60 m, 2 pieces
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm. For connection to support posts, with stepless inclination for installation for the required gradient for the water inlet and outlet.
Stowage flap
Storage flap for K&K water channels, freely positionable, stainless steel handle, rubber blade with fabric insert.
Patio tray with 1 drain
Base area: Ø 0.90 m
Total height: 0.14 m
Welded stainless steel construction with water drainage opening. Sheet thickness: min. 2 mm / tube Ø 38 mm. Anchoring through post connection.
Metal components: Stainless steel. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations
12 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.8 m³
Assembly time
2 fitters 3 hours each
(without foundation, without water connection)
Free fall height
1,25 m
Suitable for
Children from 2 years,
supervised playgrounds etc.,
Manual activities
Item number: 034075502
