Water basin (0,25)
The most important information
:
;
| Age group ? | - |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 0 people |
| Activities ? | - |
Technical data
:
;
| Minimum space length ? | 3,84 m |
|---|---|
| Minimum space width ? | 3,84 m |
| Minimum space height ? | 0,40 m |
| Equipment length ? | 0,84 m |
| Equipment width ? | 0,84 m |
| Equipment height ? | 0,40 m |
| Free-fall height ? | 0,25 m |
| Platform heights | - |
| Total weight ? | 45.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | - |
Product Downloads
:
;
Product description
:
;
Technical data

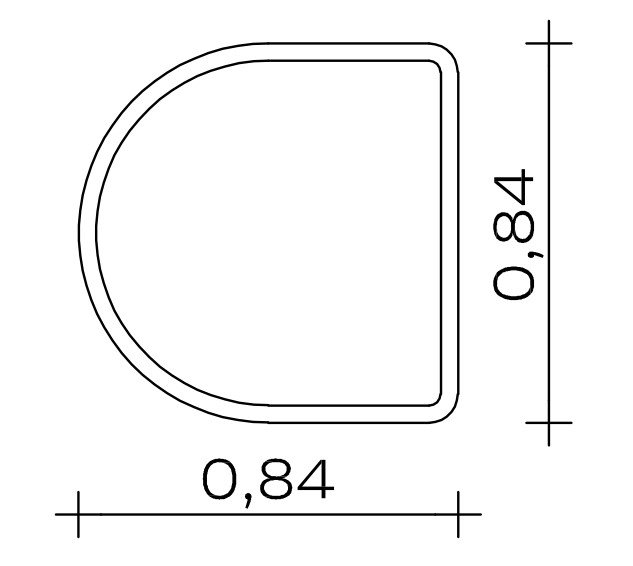

Base area: 0.84 x 0.84 m
Total height: 0.40 m
Weight: 45 kg in total
Welded stainless steel construction with 2 water drainage openings. Sheet thickness: min. 2 mm/pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Free fall height
0,25 m
Item number: 033435000
