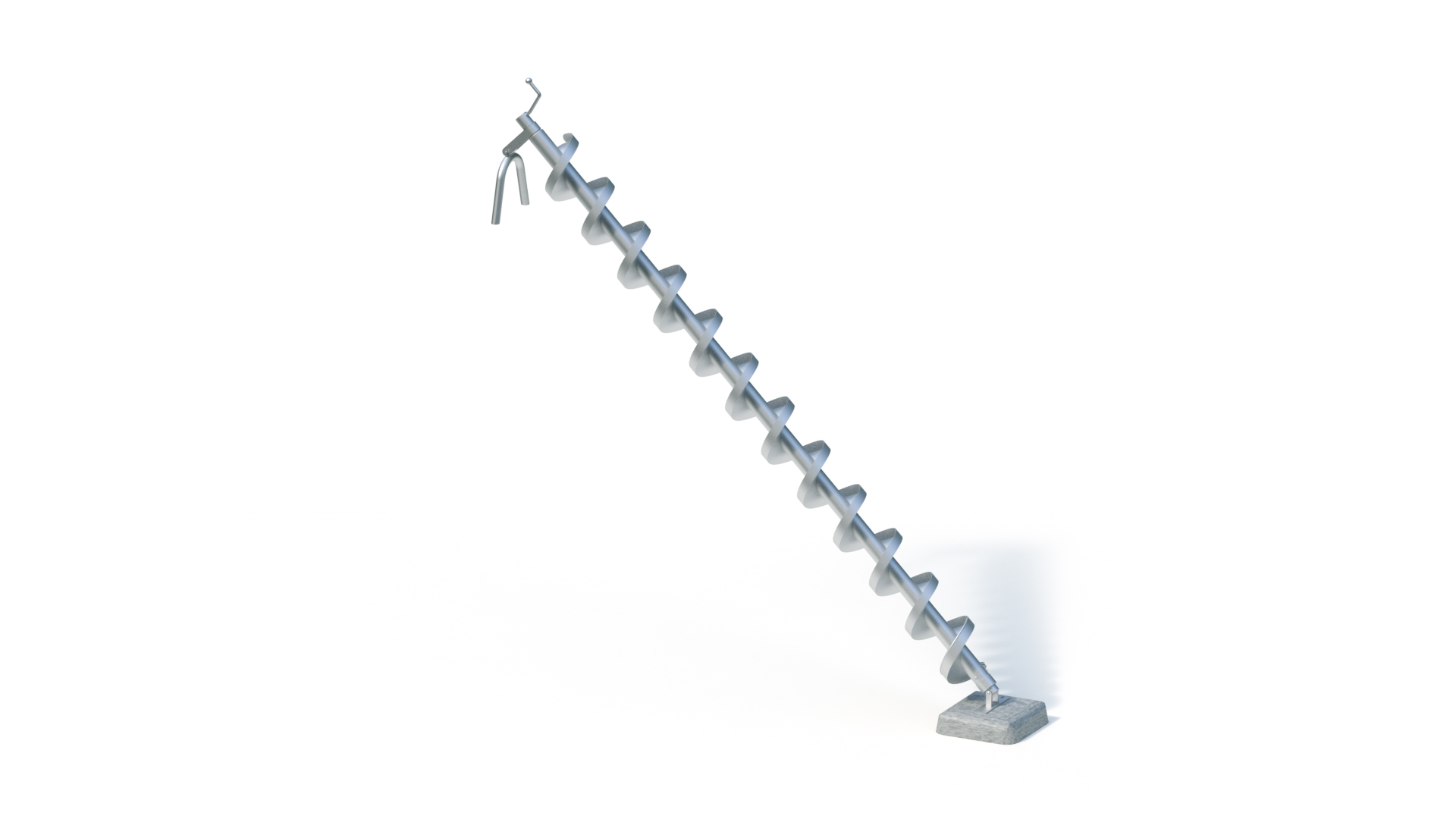

Screw pump (3,00)
The most important information
:
;
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 1 Personen |
| Aktivitäten ? | Manual activity |
Technical data
:
;
| Mindestraumlänge ? | 6,00 m |
|---|---|
| Mindestraumbreite ? | 3,25 m |
| Mindestraumhöhe ? | 2,59 m |
| Gerätelänge ? | 3,00 m |
| Gerätebreite ? | 0,25 m |
| Gerätehöhe ? | 2,59 m |
| Freie Fallhöhe ? | 0,00 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 56.00 kg |
| Schwerstes Einzelteil ? | 52.00 kg |
Assembly & Foundations
:
;
| Montagezeit ? | 0,0 h |
|---|---|
| Monteuranzahl ? | 0 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1 (0.7m x 0.3m x 0.3m) |
Product Downloads
:
;
Product description
:
;
Technical data

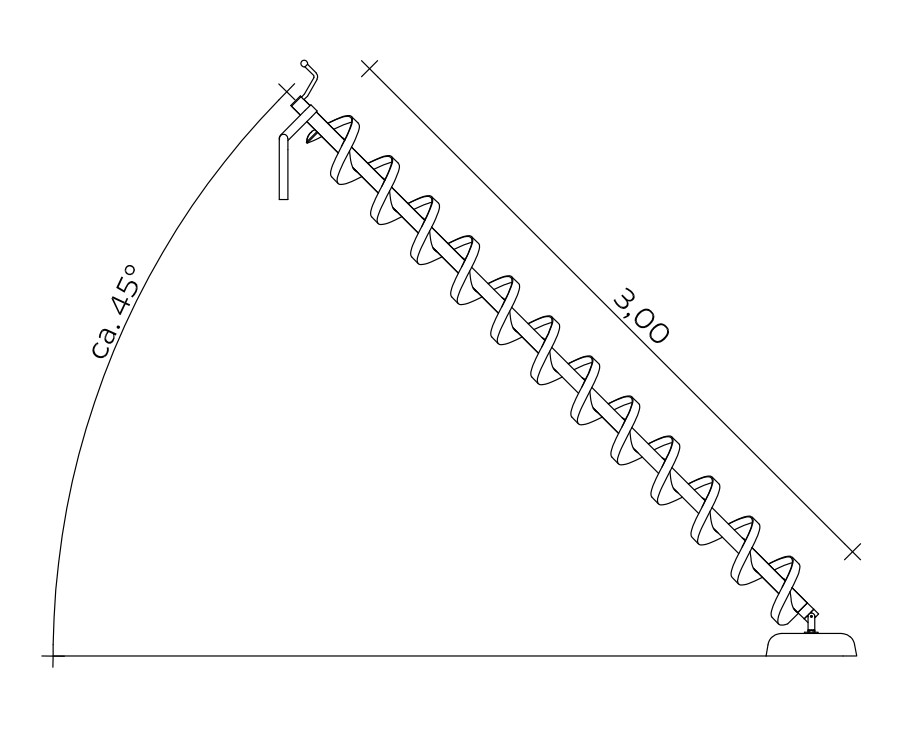

Spiral length: 3.00 m
Outer diameter: 250 mm
Weight: 52 kg heaviest individual part
56 kg in total
Welded stainless steel construction with roller bearings, hand crank stand for setting in concrete, base bearing for screwing on. Suitable prefabricated foundation can be supplied at an extra charge.
Foundation (on site)
1 piece 0.30 x 0.70 x 0.30 m
Assembly time:
is delivered in one piece
Item number: 033208001
