Water spiral (2,00)
The most important information
:
;
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | Manual activity |
Technical data
:
;
| Minimum space length ? | 5,00 m |
|---|---|
| Minimum space width ? | 3,25 m |
| Minimum space height ? | 1,88 m |
| Equipment length ? | 2,00 m |
| Equipment width ? | 0,25 m |
| Equipment height ? | 1,88 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 42.00 kg |
| Heaviest single part ? | 38.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (0.7m x 0.3m x 0.3m) |
Product Downloads
:
;
Product description
:
;
Technical data

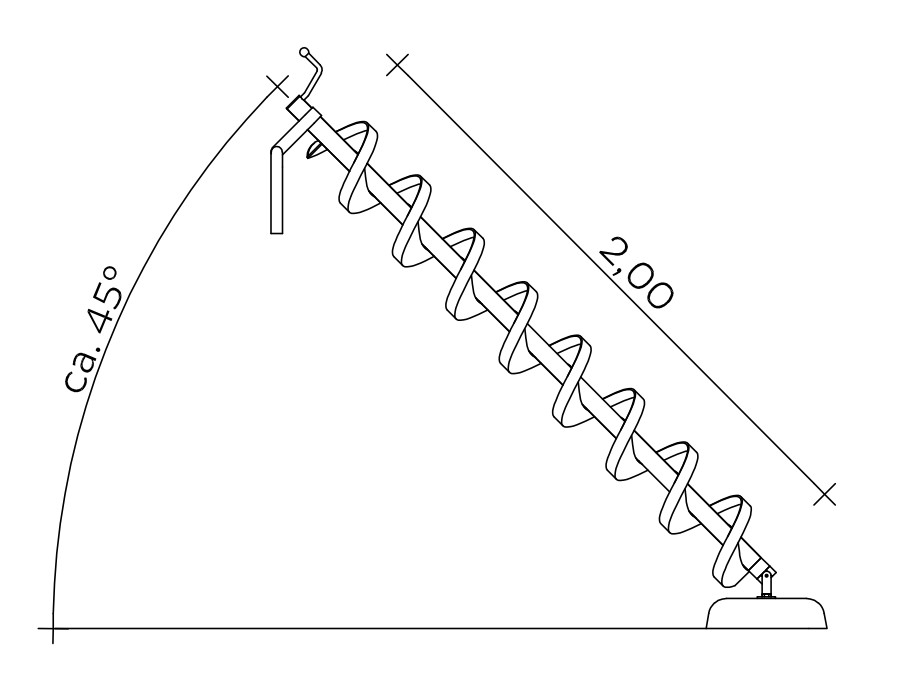

Spiral length: 2.00 m
Outer diameter: 250 mm
Weight: 38 kg heaviest individual part
42 kg in total
Welded stainless steel construction with roller bearings and hand crank. Screw-on base bearing. Suitable prefabricated foundation can be supplied at an extra charge.
Foundation (on site)
1 piece 0.30 x 0.70 x 0.30 m
Assembly time
is delivered in one piece
Item number: 033204001
