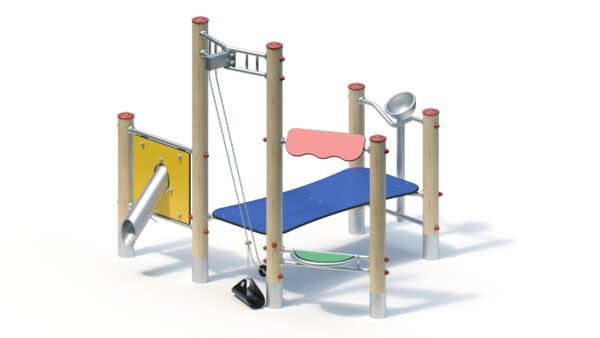

Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.
Sandworks

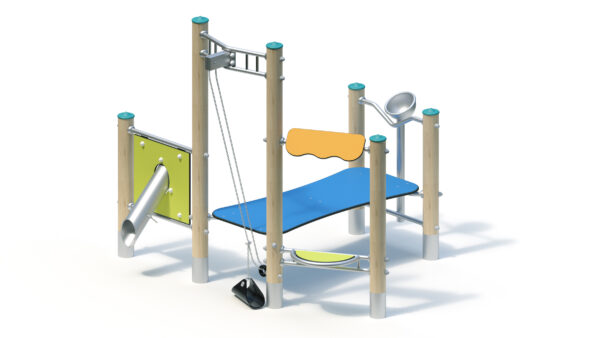

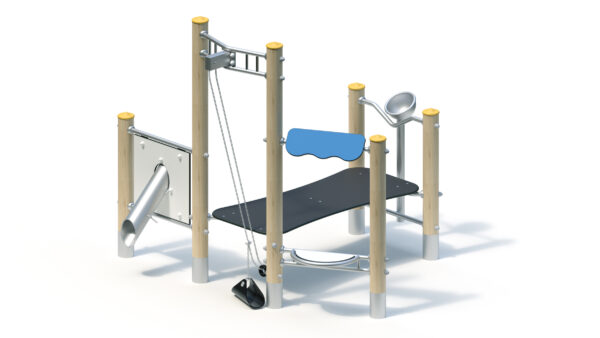

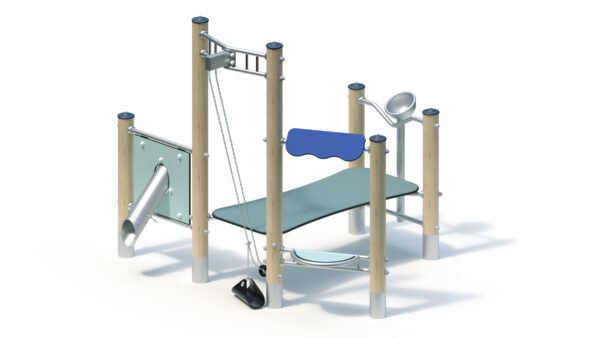

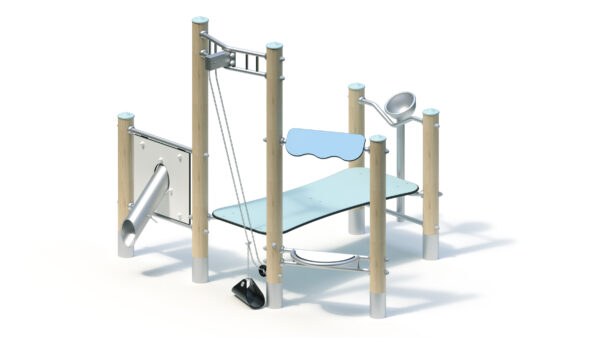

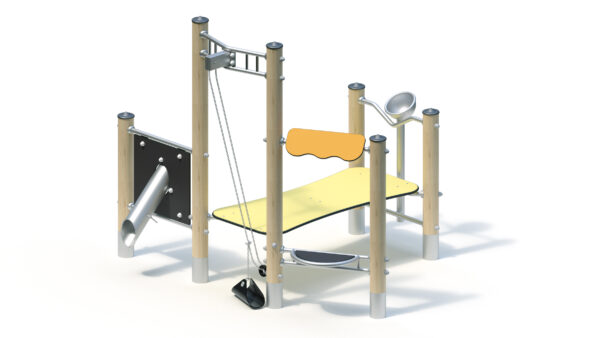

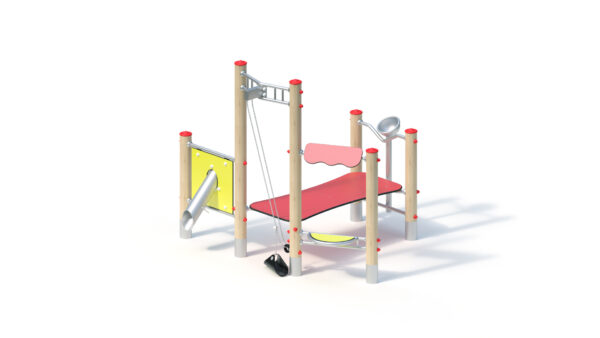

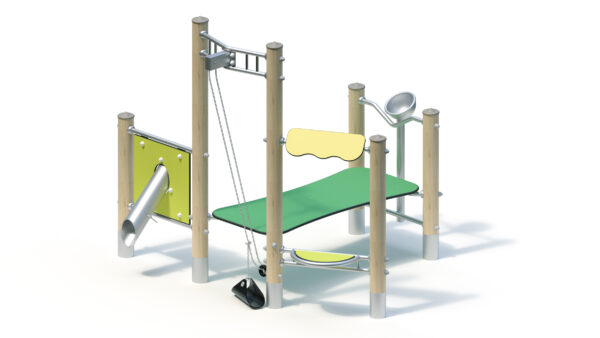

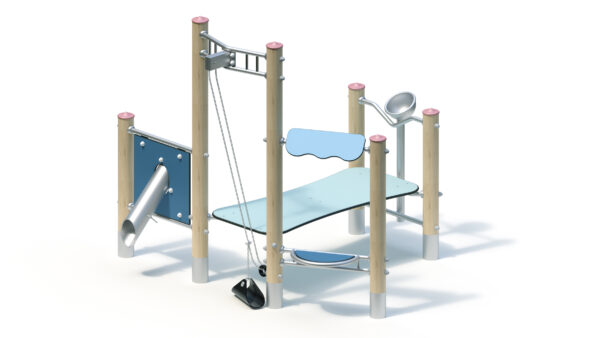

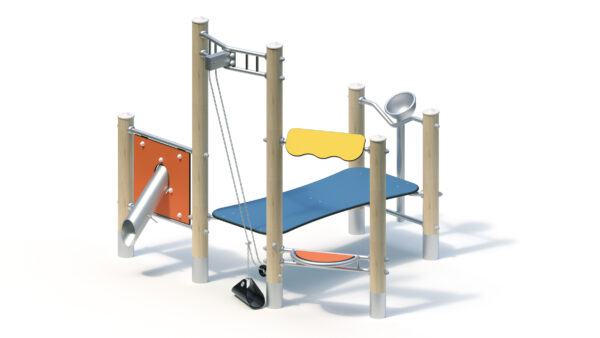

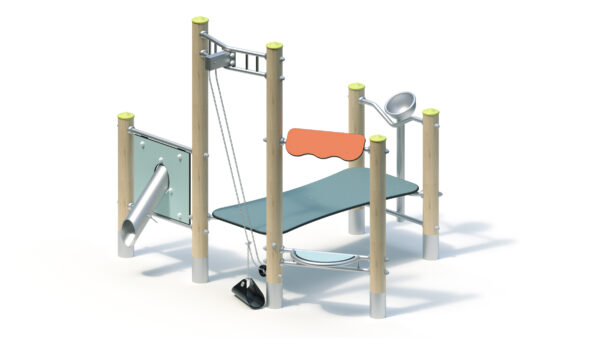

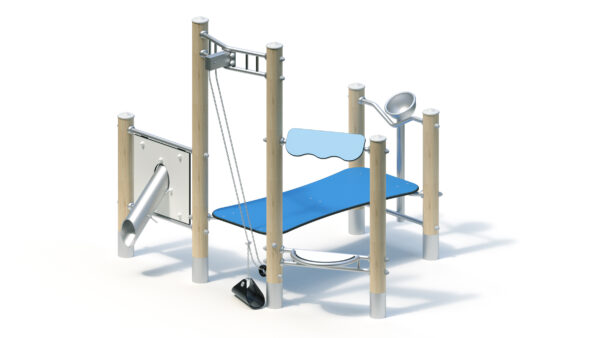

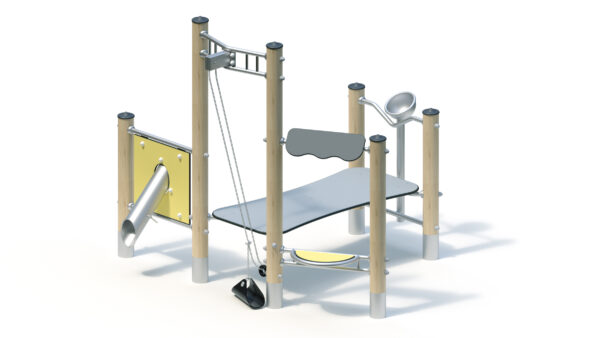

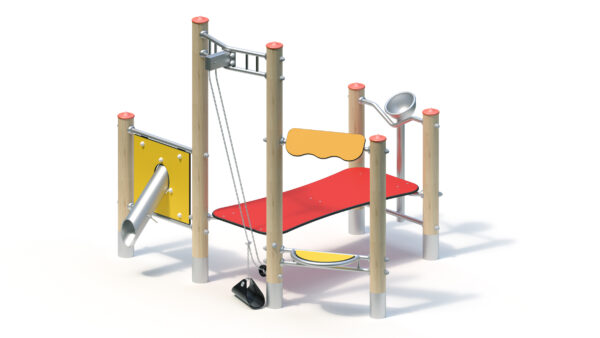

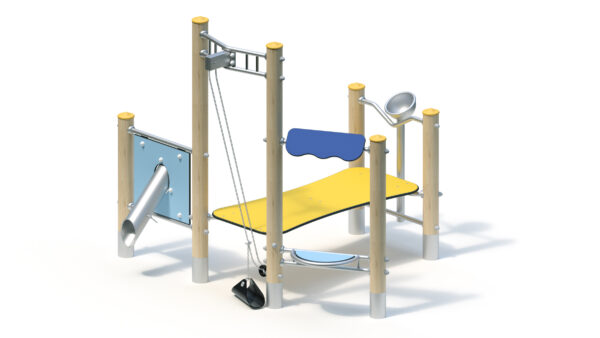

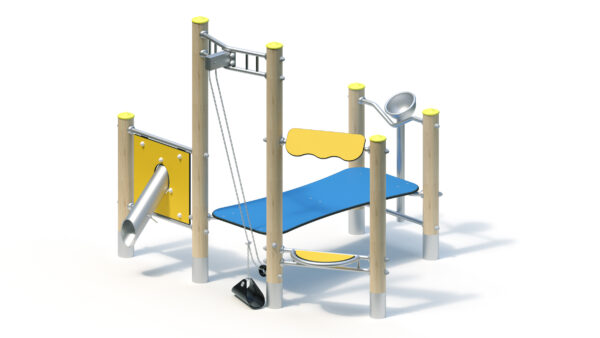

Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 12 Personen |
| Aktivitäten ? | Manual activity, Social activity |
Technical data
| Mindestraumlänge ? | 5,15 m |
|---|---|
| Mindestraumbreite ? | 5,45 m |
| Mindestraumhöhe ? | 2,10 m |
| Gerätelänge ? | 2,15 m |
| Gerätebreite ? | 2,45 m |
| Gerätehöhe ? | 2,10 m |
| Freie Fallhöhe ? | 0,60 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 200.00 kg |
| Schwerstes Einzelteil ? | 35.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 6 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

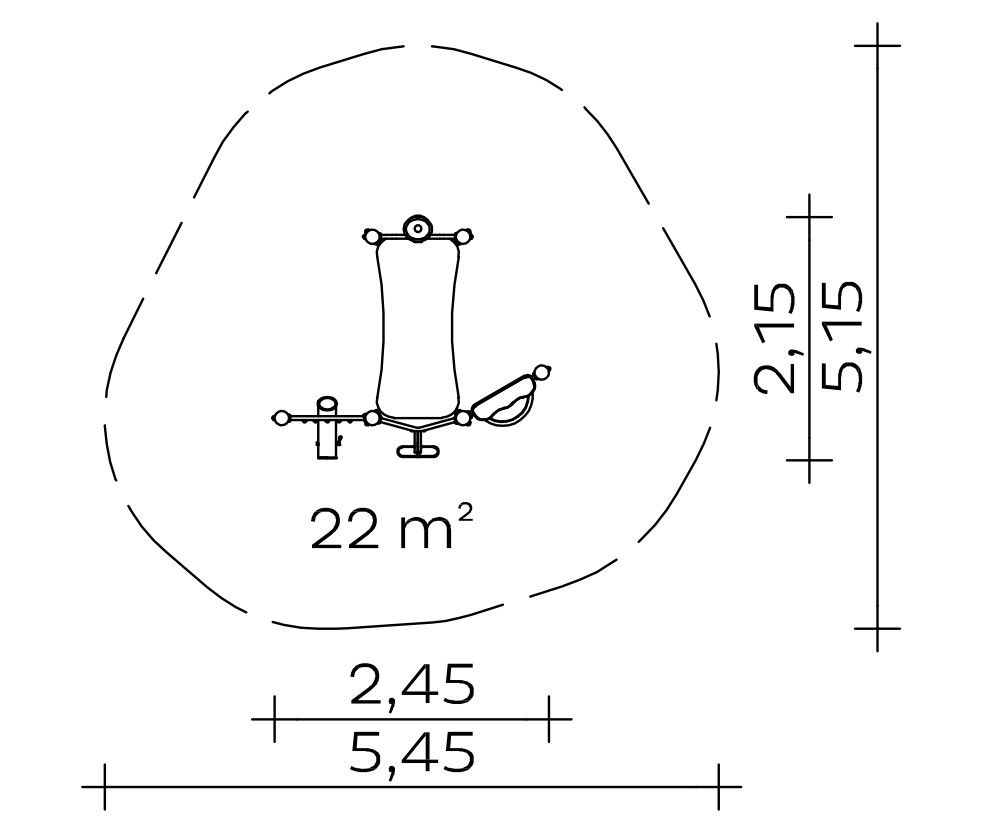

Floor area: 2.15 x 2.45 m
Minimum space: 5.15 x 5.45 m (22 m²)
Total height: 2.10 m
Weight: 35 kg heaviest individual part
200 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Table/awning: made of coloured, highly weather-resistant HPL laminate 20/15 mm
- Pouring tube wall made of yellow, highly weather-resistant HPL laminate with sand pouring tube including shut-off flap, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Sand lift with rubber transport container and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Sand pouring pipe with stainless steel hemisphere
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.38 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
0,60 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Social/manual activities
Item number: 031314701
