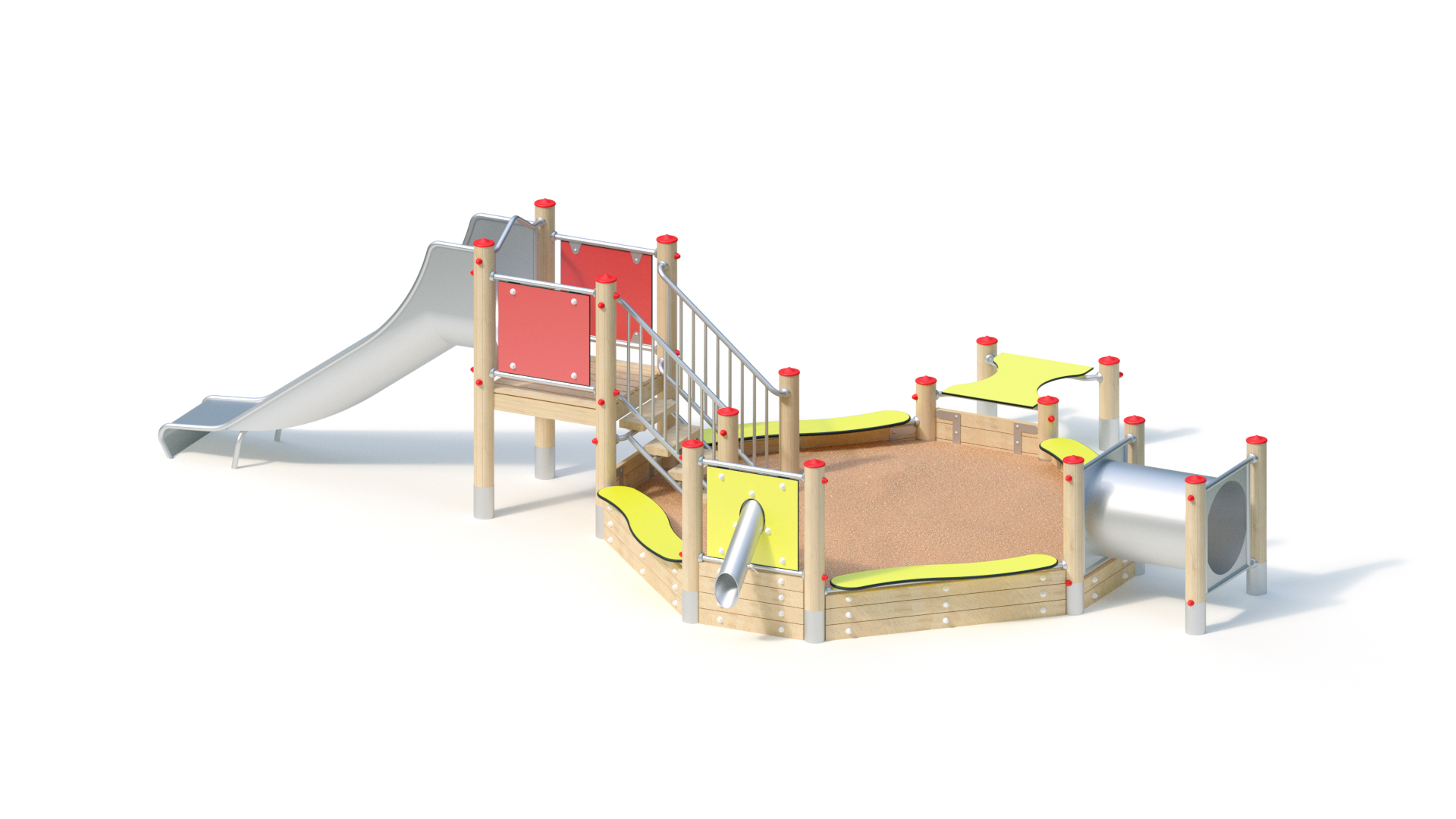

Sand play space

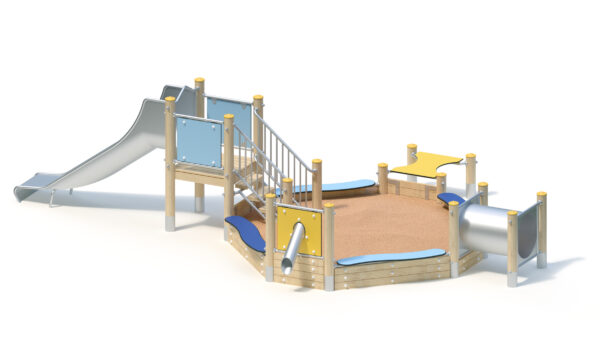

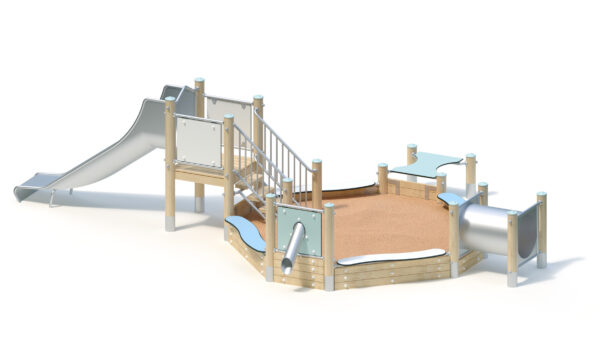

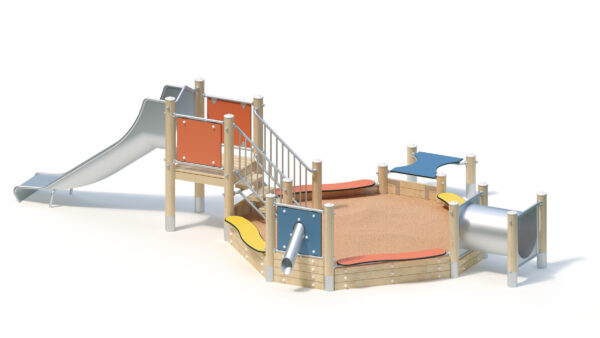

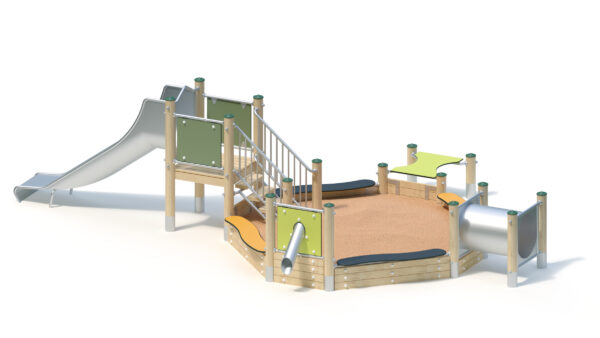

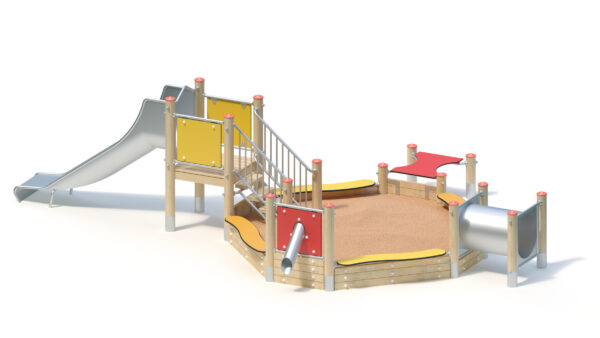

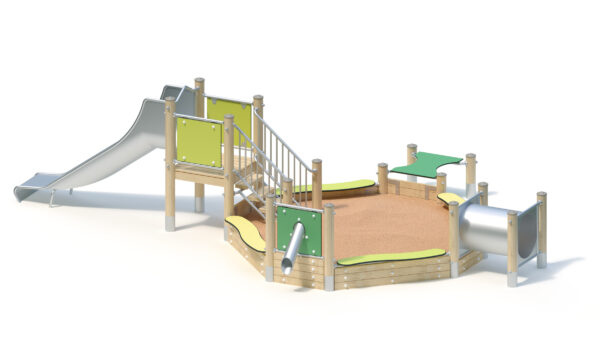

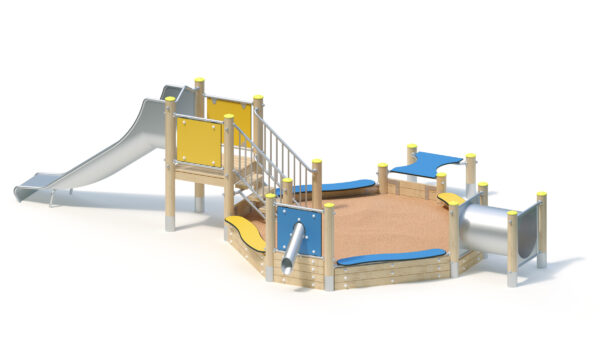

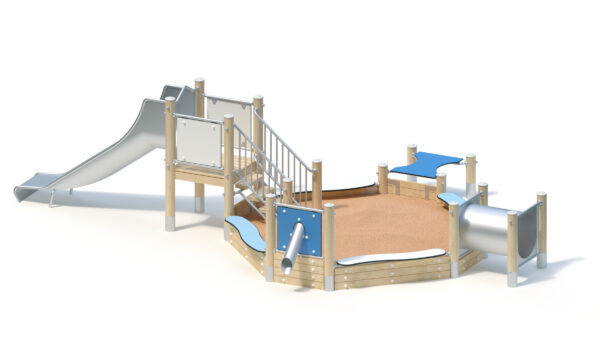

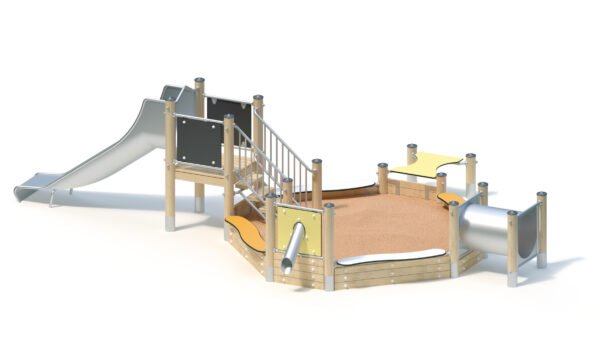

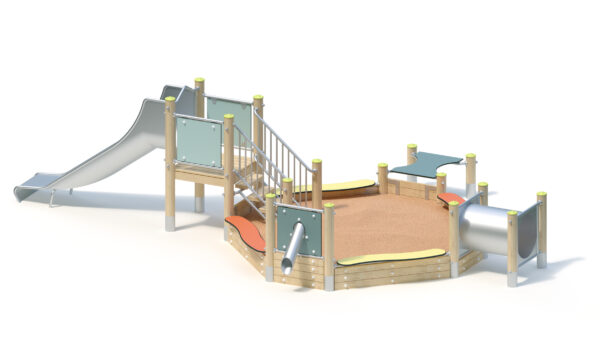

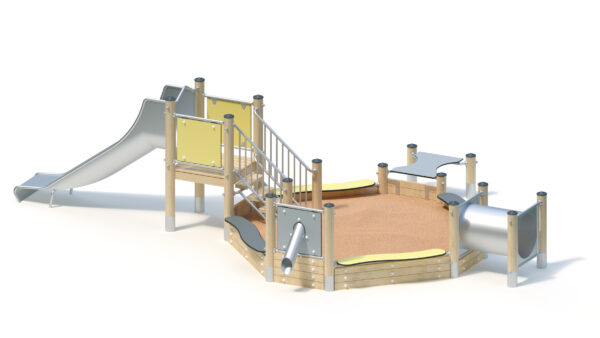

Variante wählen:
The most important information
| Altersgruppe ? | 1+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 27 Personen |
| Aktivitäten ? | Manual activity, Slide, Social activity |
Technical data
| Mindestraumlänge ? | 10,40 m |
|---|---|
| Mindestraumbreite ? | 7,35 m |
| Mindestraumhöhe ? | 1,75 m |
| Gerätelänge ? | 6,90 m |
| Gerätebreite ? | 4,30 m |
| Gerätehöhe ? | 1,75 m |
| Freie Fallhöhe ? | 0,90 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 675.00 kg |
| Schwerstes Einzelteil ? | 75.00 kg |
Assembly & Foundations
| Montagezeit ? | 5,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 16 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
,Technical data

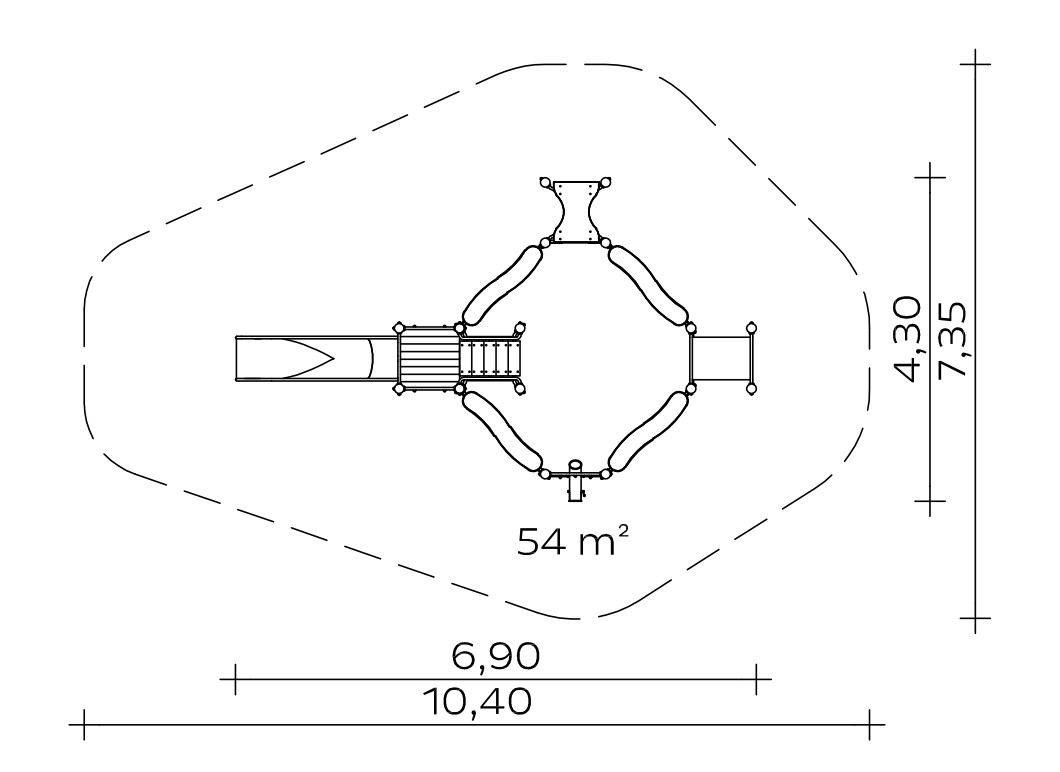

Floor area: 4.30 x 6.90 m
Minimum space: 7.35 x 10.40 m (54 m²)
Height: 1.75 m
Platform height: 0.80 m
Seat height: 0.90 m
Weight: 70 kg heaviest individual part
675 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Panel balustrade made of coloured, highly weather-resistant HPL laminate. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm. Pitch height of the steps 133 mm
- Stair railing made of stainless steel tube, Ø 33.7 x 2 mm, torsion-resistant
- Table: made of coloured, highly weather-resistant HPL laminate, 15 mm
- Crawl tunnel: Ø 56 cm, stainless steel sheet 2.5 mm
- Pouring pipe wall made of HPL laminate with sand pouring pipe including shut-off damper
- Sand edging made of robinia 95 x 30 mm, planed, bevelled and free of rotting knots
- Play and seat plate made of coloured, highly weather-resistant HPL laminate, 20 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
16 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.14 m³
Assembly time
2 fitters 5 hours each
(without foundation)
Free fall height
0,90 m
Suitable for
Children from 2 years,
public playgrounds etc.
social / manual activities.
Item number: 030251701
