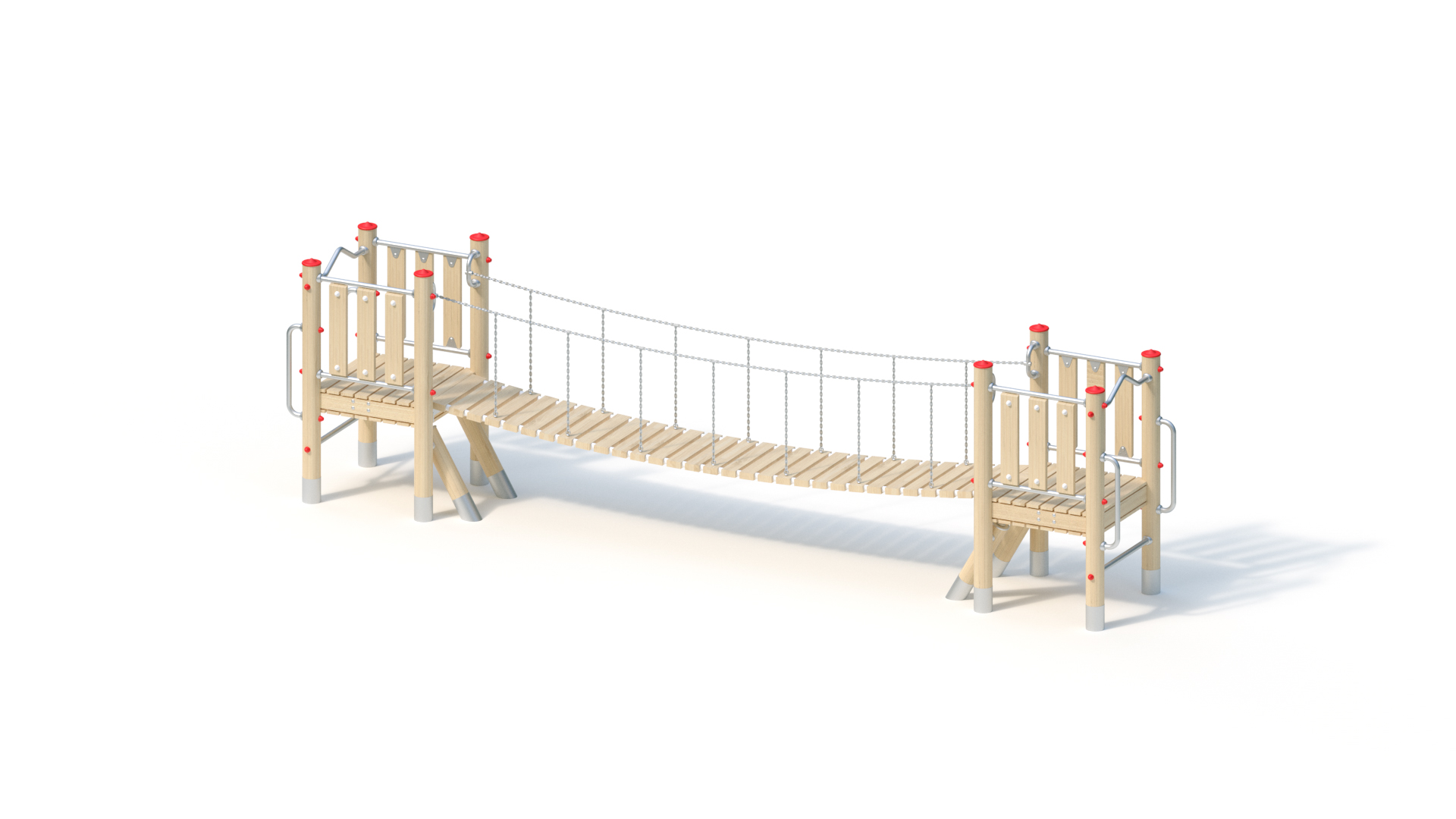

Bridge combination
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 10 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 6,00 m |
|---|---|
| Device width ? | 0,95 m |
| Device height ? | 1,75 m |
| Free fall height ? | 0,80 m |
| Platform heights | - |
| Total weight ? | 540.00 kg |
| Heaviest single item ? | 100.00 kg |
| Minimum room length ? | 9,00 m |
| Minimum room width ? | 3,95 m |
| Minimum room height ? | 1,75 m |
Assembly & Foundations
| Assembly time ? | 7,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: 1.75 m
Floor area: 0.95 x 6.00 m

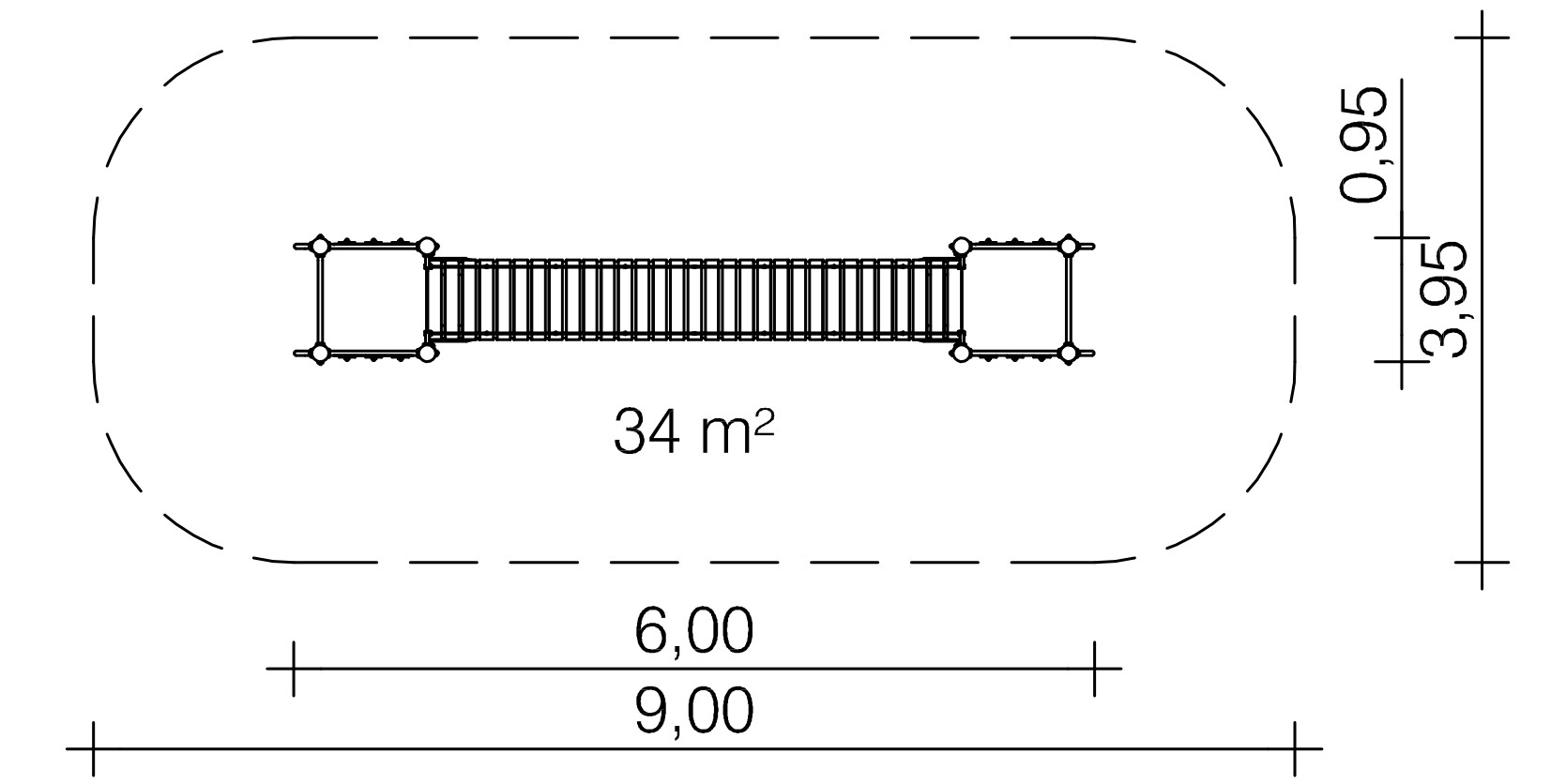

Minimum space: 3.95 x 9.00 m (34 m²)
Platform height: 0.80 m
Weight: 100 kg heaviest individual part
600 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Suspension bridge made of 45 x 100 mm timbers with 30 mm hard rubber spacer blocks. Stainless steel support cables Ø 10 mm with 4 tensioning devices, fine-linked stainless steel railing chains. Support posts made of robinia Ø 120 mm.
- Wooden balustrade made of robinia, 120 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
2 pcs. 0.60 x 1.00 x 0.50 m
Concrete volume: 1.16 m³
Assembly time
2 fitters 7 hours each
(without foundation)
Free fall height
0,80 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities
Item number: 028181701
