Totter bridge
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 7 Personen |
| Aktivitäten ? | Balance, Physical activity |
Technical data
| Mindestraumlänge ? | 7,15 m |
|---|---|
| Mindestraumbreite ? | 3,95 m |
| Mindestraumhöhe ? | 1,05 m |
| Gerätelänge ? | 4,15 m |
| Gerätebreite ? | 0,95 m |
| Gerätehöhe ? | 1,05 m |
| Freie Fallhöhe ? | 0,20 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 215.00 kg |
| Schwerstes Einzelteil ? | 80.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 8 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

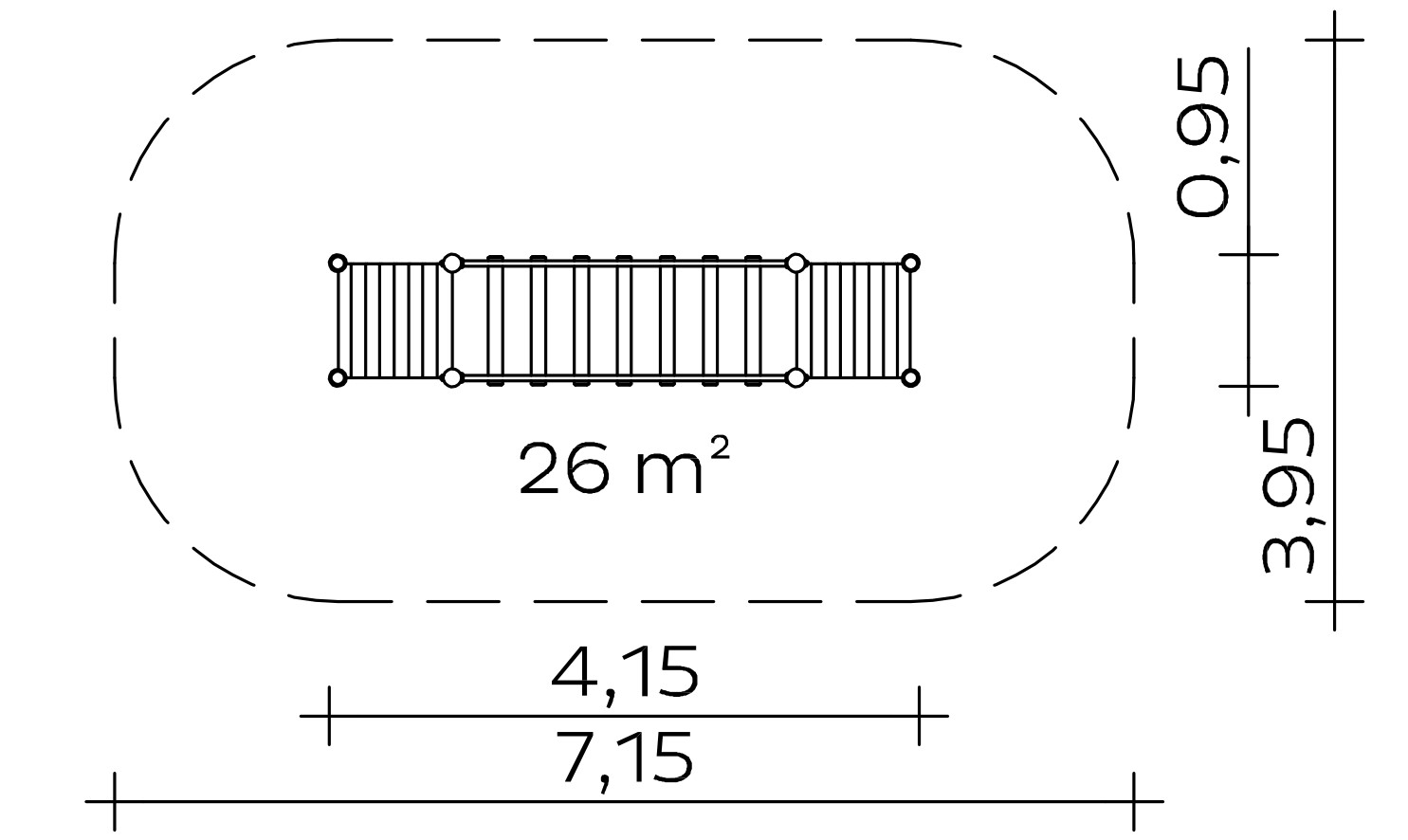

Floor area: 0.95 x 4.15 m
Minimum space: 3.95 x 7.15 m (26 m²)
Total height: 1.05 m
Platform height: 0.20 m
Weight: 80 kg heaviest individual part
215 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Wobbly bridge on tandem crossbeam, robinia timbers Ø 10 cm. Fine-linked stainless steel railing chains
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.51 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
0,20 m
Suitable for
Children from 2 years,
public playgrounds etc.
Physical activities
Item number: 028026501
