Tunnel bridge
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 6 people |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 6,35 m |
|---|---|
| Minimum space width ? | 3,95 m |
| Minimum space height ? | 1,05 m |
| Equipment length ? | 3,35 m |
| Equipment width ? | 0,95 m |
| Equipment height ? | 1,05 m |
| Free-fall height ? | 0,90 m |
| Platform heights | - |
| Total weight ? | 215.00 kg |
| Heaviest single part ? | 80.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 8 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

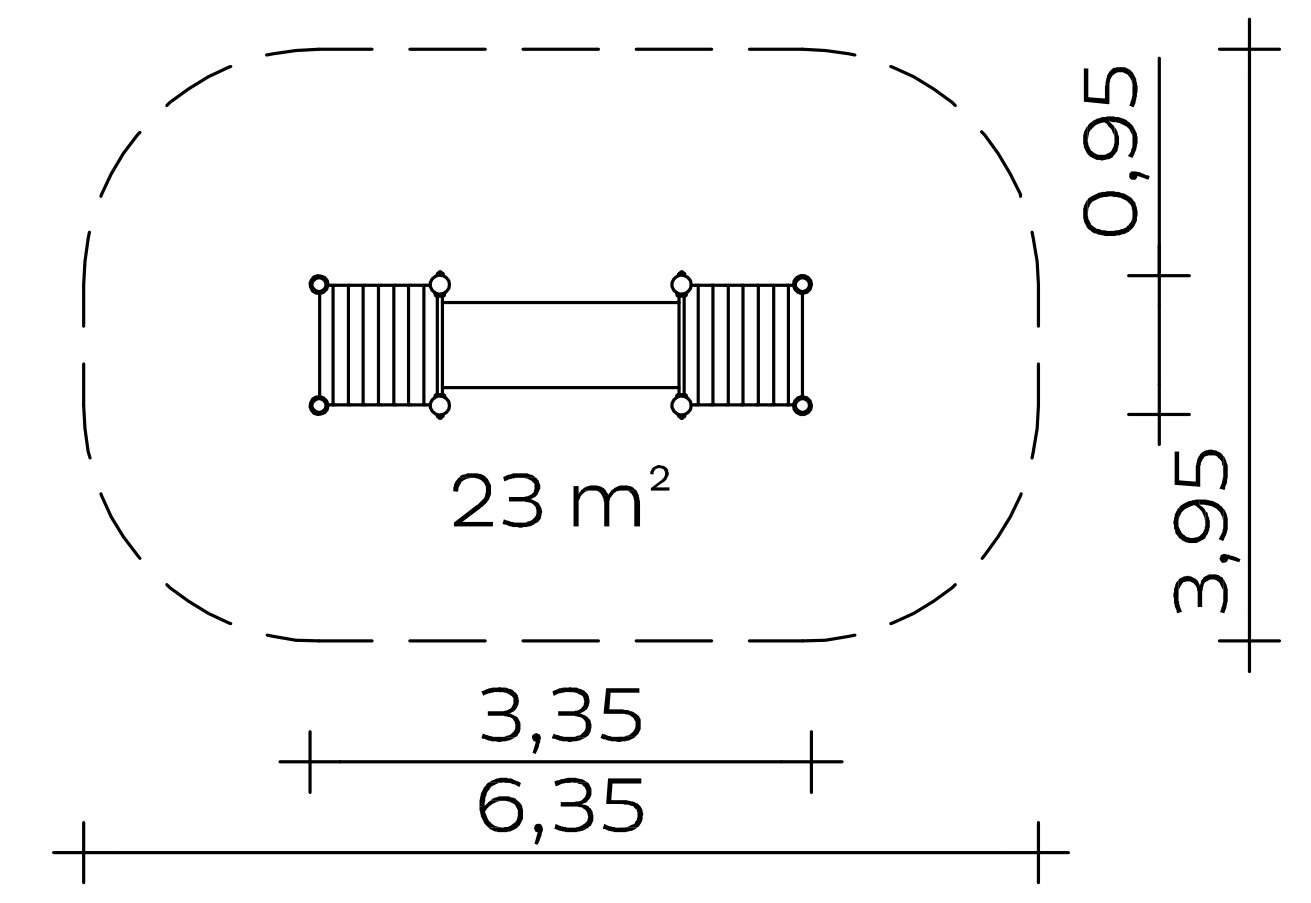

Floor area: 0.95 x 3.35 m
Minimum space: 3.95 x 6.35 m (23 m²)
Total height: 1.05 m
Platform height: 0.20 m
Weight: 80 kg heaviest individual part
215 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Crawl tunnel: Ø 56 cm, stainless steel sheet 2.5 mm
Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.51 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
0,90 m
Suitable for
Children from 2 years,
public playgrounds etc.
Physical activities
Item number: 028021700
