Technical data
Equipment room: 6.82 x 5.97 x 2.93 m
Minimum space: 9.82 x 8.97 x 2.93 m

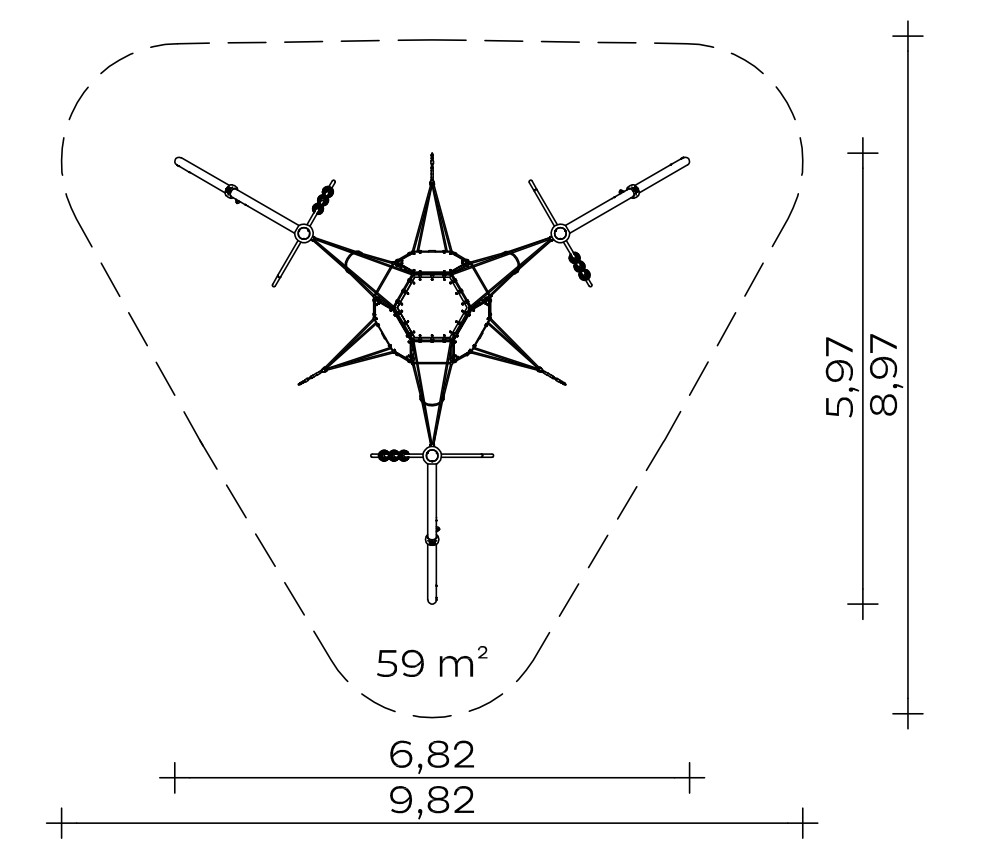

Impact area: 59 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single item
360 kg in total

Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Space Cube
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Cross connections and T-connectors in the cable mesh made of aluminium
- elastic mat elements made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Rubber mat fastening with U-bracket stainless steel elements
- Ground fixing: Stainless steel chains (Ø 7 mm) with chain tensioner, screwed to foundation tubes (Ø 38 x 2 mm)

Climbing Pipe
- Welded construction made of stainless steel tube Ø 38 mm with three stainless steel balls Ø 150 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations

Hanging handle
- Hanging handle with rubberised grip surface and 6 mm chain
- Above: Connection to Actio construction element via aluminium clip (optionally powder-coated in RAL colour of choice)

Foundations (client-provided)
3 pcs. 1.30 x 0.50 x 0.50 m
9 units 0.60 x 0.60 x 0.50 m
Concrete volume: 2.61 m³

Assembly time
3 fitters 5 hours each.
(without foundation)

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

Item number: 027364000
