Technical data

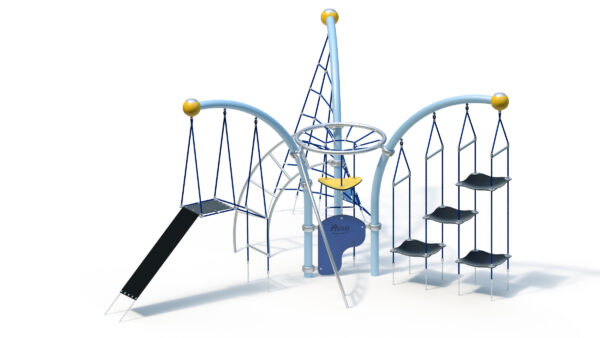

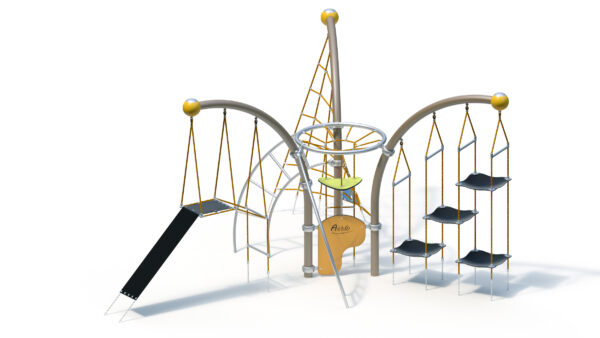

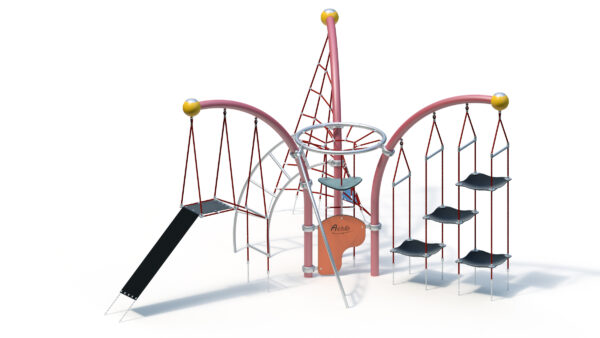

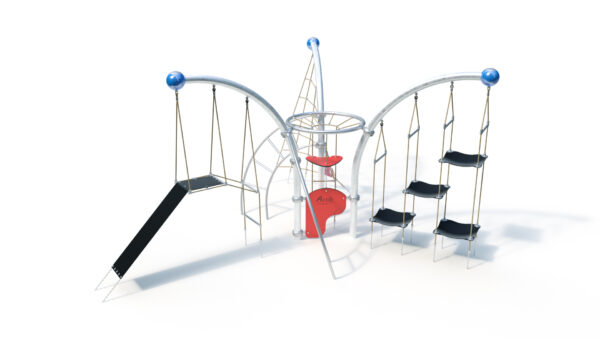

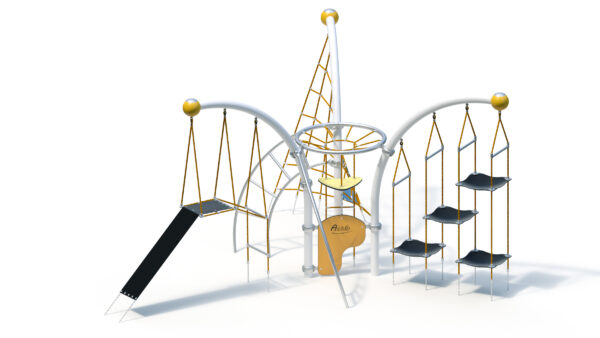

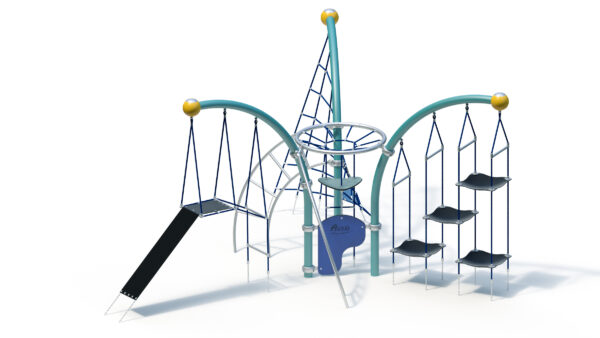

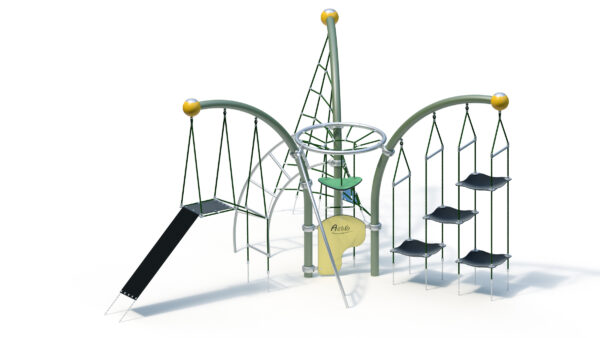

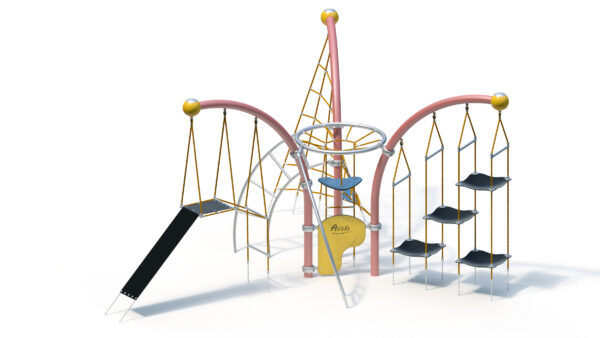

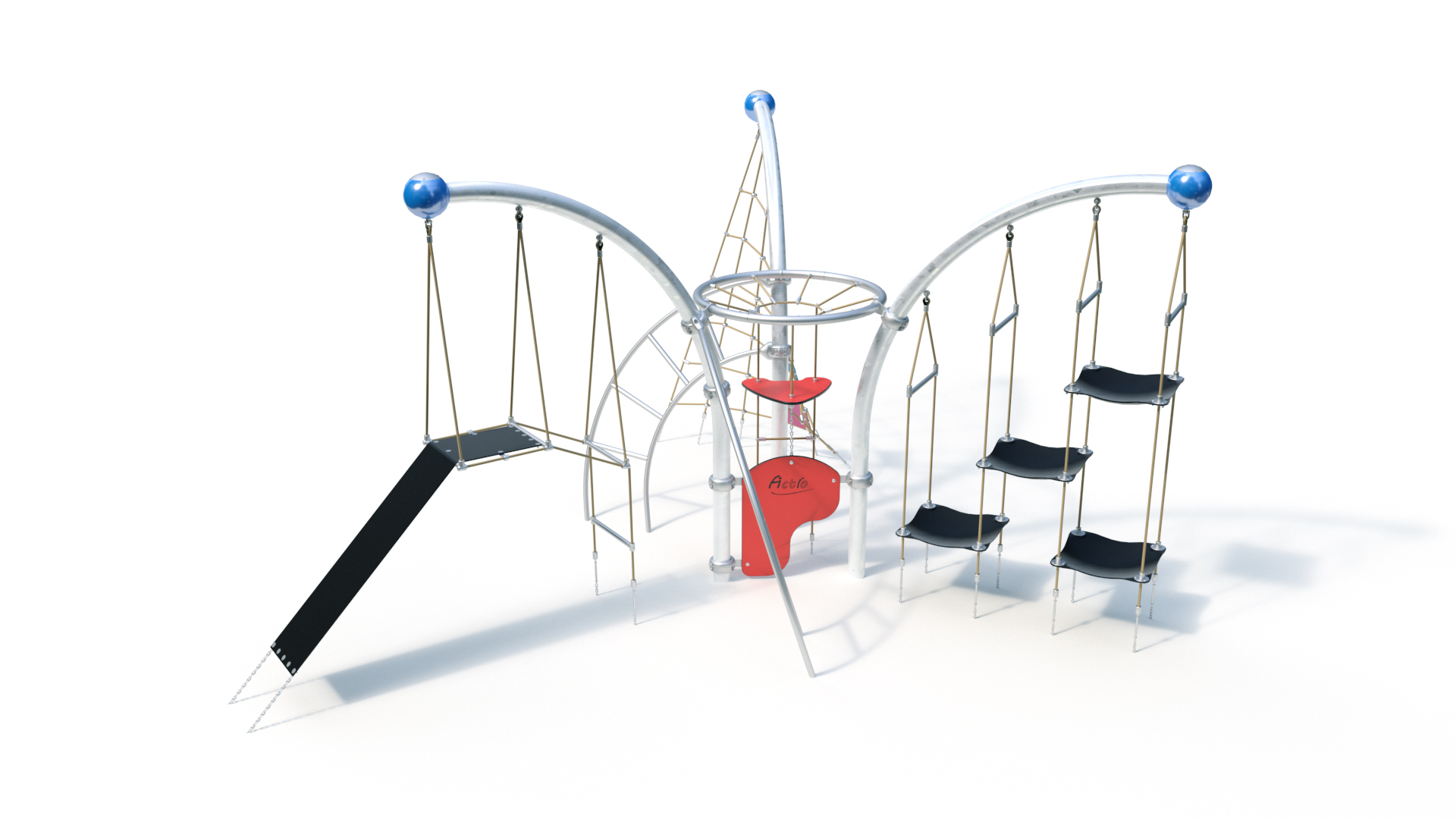

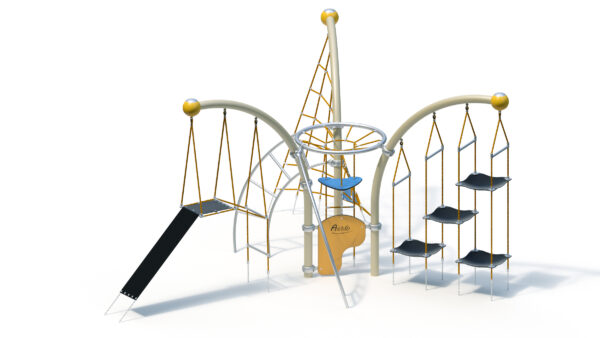

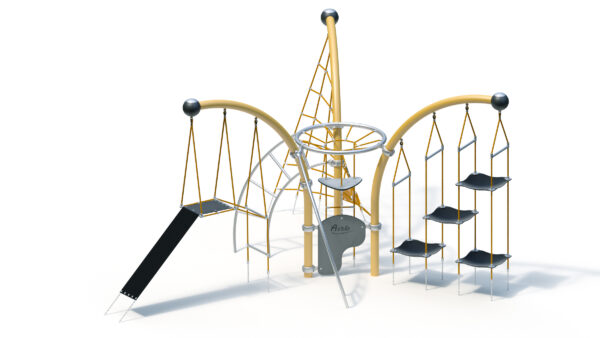

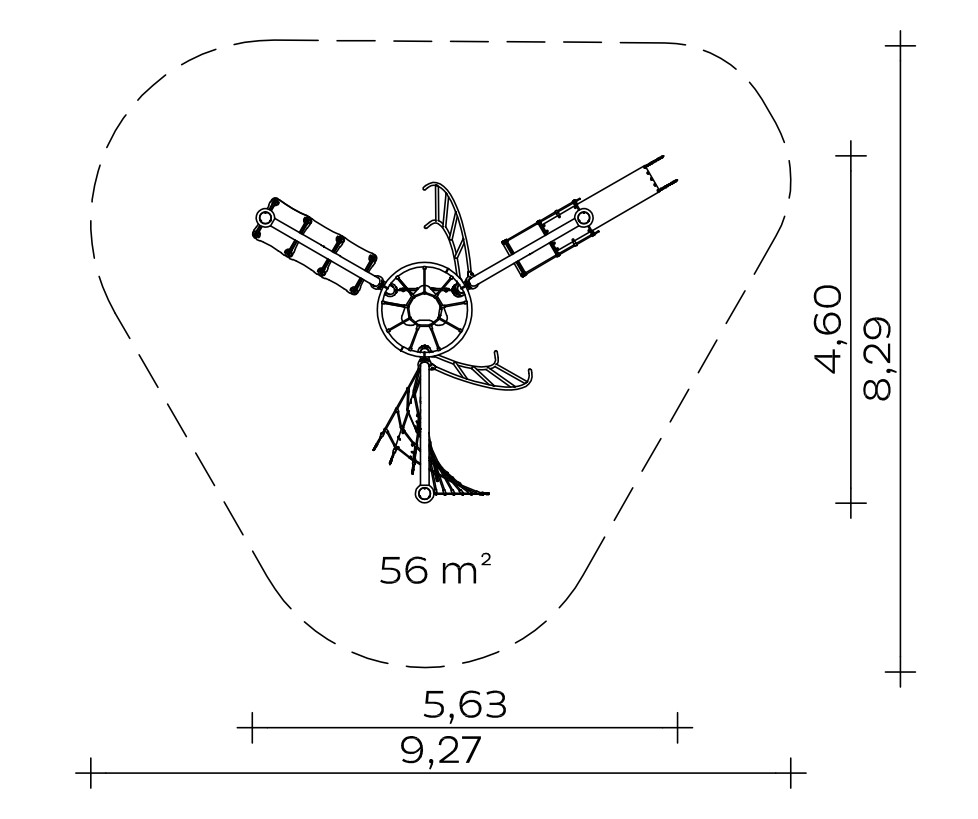

Equipment room: 5.63 m x 4.60 x 2.93 m
Minimum space: 9.27 x 8.29 x 2.93 m
Impact area: 56 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single item
390 kg in total

Arc 90° Twister
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90° Moving Hill
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90° Flying Carpet
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Twister
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Cross connections and T-connectors in the aluminium cable mesh
- Rubber mats (8 mm), PAH-free and 4-fold textile-reinforced rubber
- Rubber mat fastened with U-bracket (stainless steel)
- Floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
Screwed at the bottom with foundation tube (Ø 38 x 2 mm)
- Connection to Arc 90° with shackle, Ø 10 mm

Moving Hill
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Mounting bracket for rubber mat, stainless steel construction consisting of clamping tube (Ø 34 x 8.5 mm) welded to sheet metal (30 x 68 mm)
- Cross clamping tube, stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- Floor fastening, stainless steel chains (Ø 7 mm) welded to flat bars (390 x 35 x 3 mm) at the top end, screwed to foundation tube (40 x 40 x 2 mm) at the bottom.
- Connection to Arc 90° with shackle, Ø 10 mm

Flying Carpet
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- Floor fastening, stainless steel chains (Ø 7 mm) welded with round plate (Ø 90 x 3 mm) at the upper end, screwed to foundation tube (Ø 38 x 2 mm) at the bottom
- Connection to Arc 90° with shackle, Ø 10 mm

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
- curved, spatially twisted conductors
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations

Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)

Climbing Basket
- Stainless steel tube ring (Ø 1200 x Ø 60.3 x 3) welded with 9x cable connection (Ø 48.3) and 3x mounting bracket ring for Actio post
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Base plate made of highly weather-resistant HPL laminate, colour red similar to RAL 2002, 20 mm.
- Cross connections and T-connectors in the aluminium cable mesh

Foundations (client-provided)
1 piece 2.40 x 0.85 x 0.50 m
1 piece 2.50 x 0.30 x 0.50 m
1 piece 1.40 x 0.70 x 0.50 m
1 piece. 1.30 x 0.50 x 0.50 m
2 pcs. 0.90 x 0.40 x 0.50 m
1 piece 0.70 x 0.50 x 0.50 m

Concrete volume: 2.76 m³

Assembly time
3 fitters 5 hours each.
(without foundation)

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

Item number: 027360000
