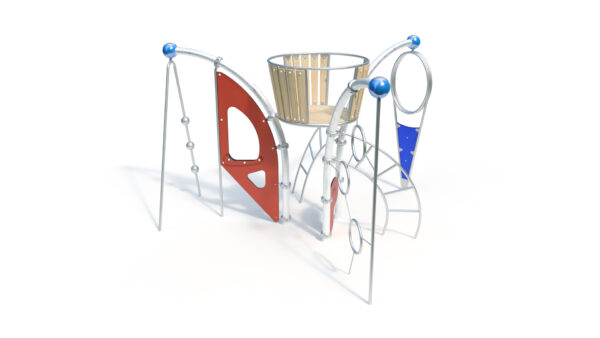

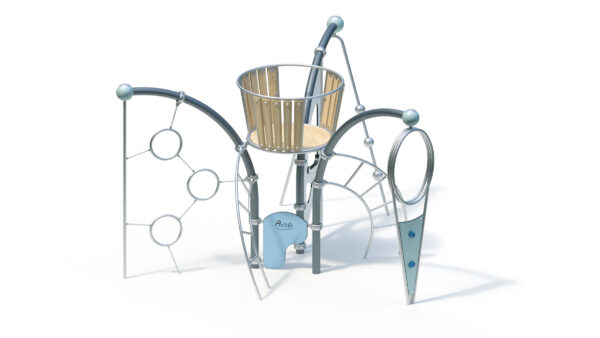

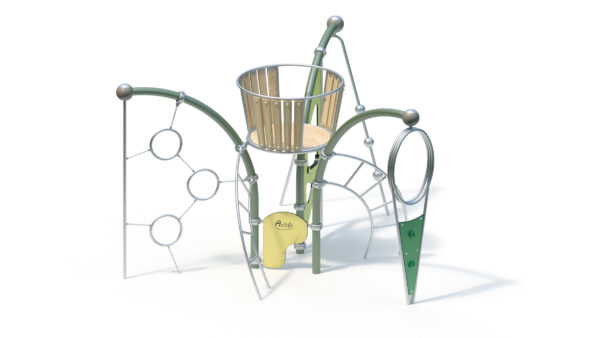

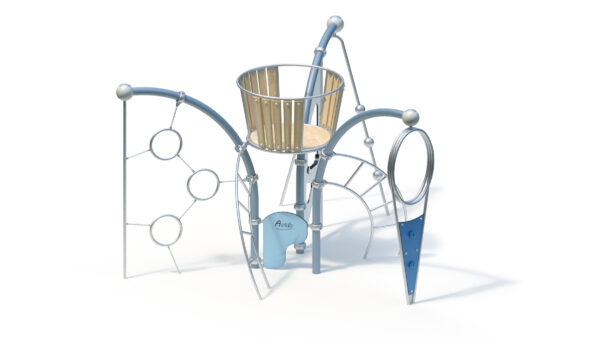

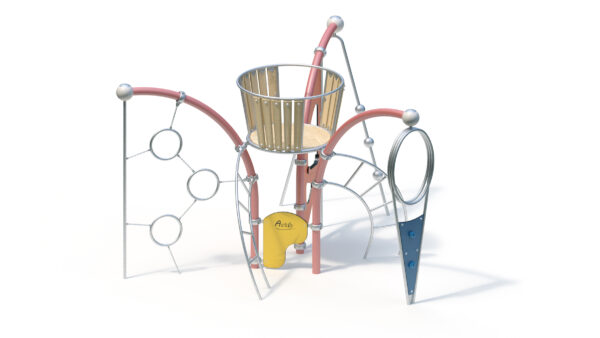

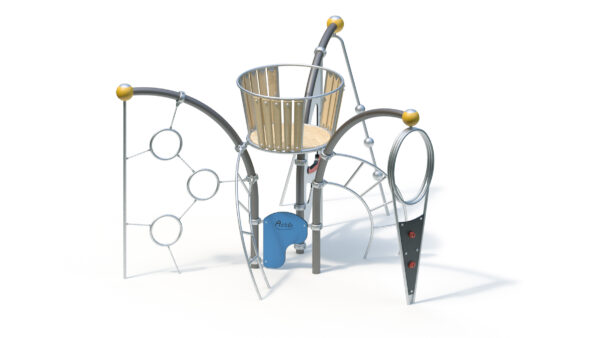

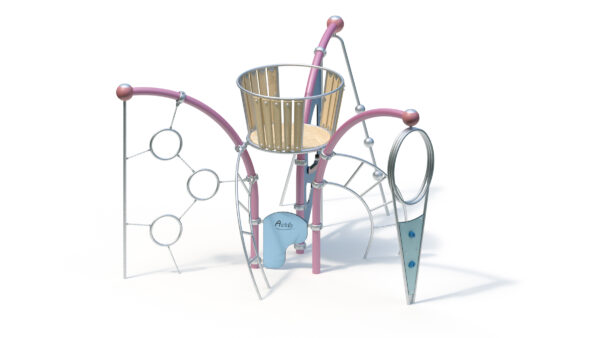

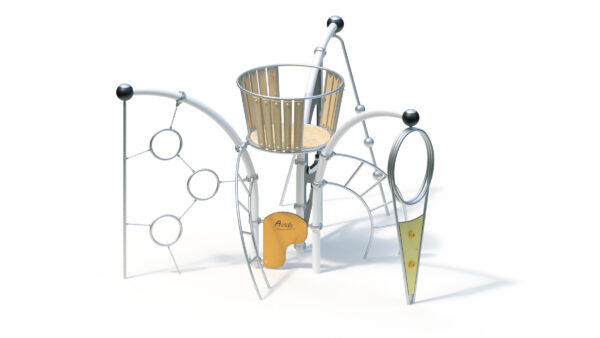

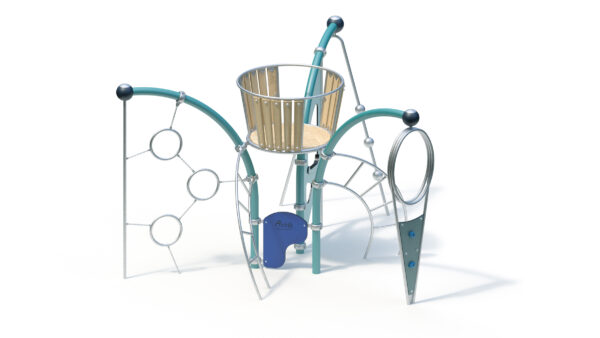

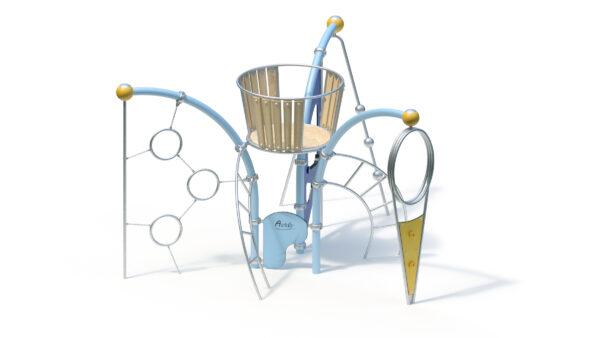

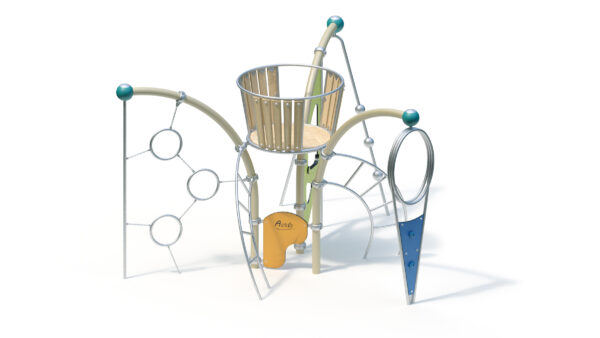

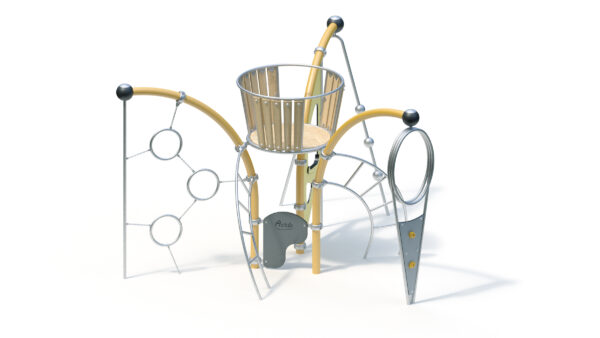

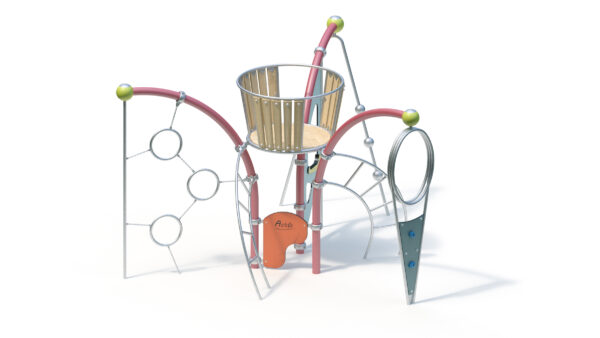

Actio 350
Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 21 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 8,30 m |
|---|---|
| Minimum space width ? | 8,29 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 4,89 m |
| Equipment width ? | 4,47 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 550.00 kg |
| Heaviest single part ? | 115.00 kg |
Assembly & Foundations
| Assembly time ? | 5,0 h |
|---|---|
| Number of fitters ? | 3 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 1x (1.77m x 0.5m x 0.5m) Quantity: 2 (1.3m x 0.5m x 0.5m) Quantity: 4 (0.6m x 0.6m x 0.5m) Quantity: 2 (0.8m x 0.4m x 0.5m) |
Product Downloads
Product description
Technical data

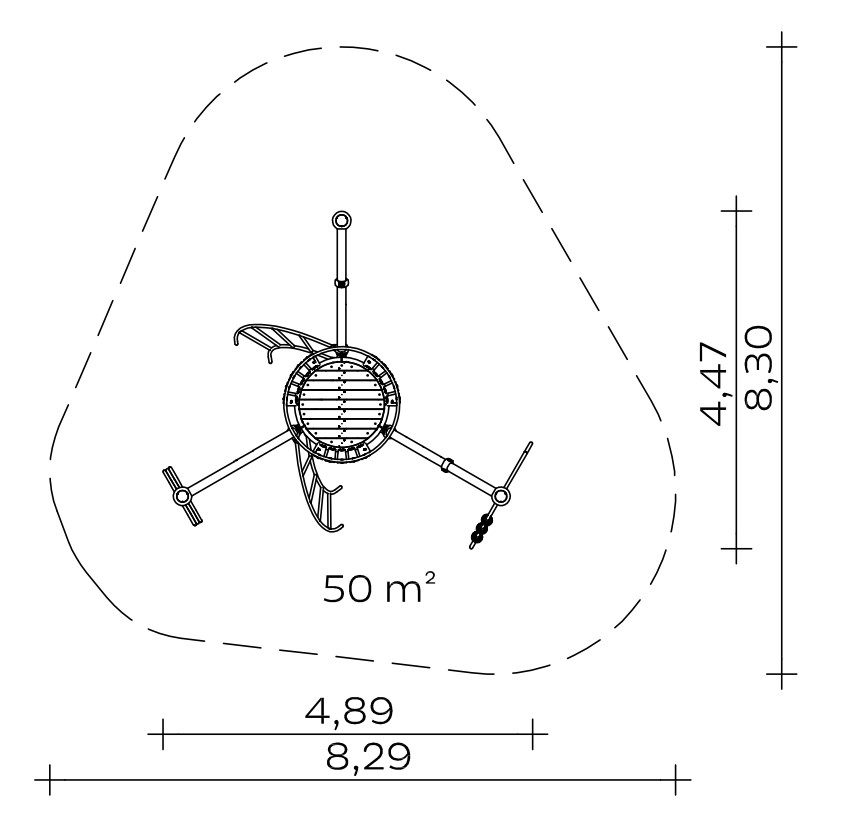

Equipment room: 4.89 x 4.47 x 2.93 m
Minimum space: 8.30 x 8.29 x 2.93 m
Impact area:50 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 115 kg heaviest individual part
550 kg in total
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
Crow's Nest
- Wooden balustrade consisting of boards, end face 1: 125 x 30 x 812 mm. Face 2: 92 x 30 mm. Difference in the end faces, as it is tapered
Platform floor made of boards, 30 mm thick and centred with a squared timber beam 125 x 30 x 980. Platform floor is screwed onto a flange ring.
The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit fastening by screwing to the brackets provided.
- Stainless steel welded construction consisting of ring at the bottom (Ø 60 x 3 x Ø 1200 welded with flange ring, 15x connection bracket for slab parapet and 3x mounting bracket)
and ring at the top (Ø 38 x 2 x Ø 1500 welded with 15x connection bracket for wooden parapet board). The connecting elements are 6x tube (Ø 38 x 2).
Monkey Climber
- Ring combination made of stainless steel tube Ø 38 mm
- Suspension and connection with 7 mm stainless steel chains and swivels
- Above: Connection to Actio construction element
– below: Fixation by site foundations
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
- curved, planar conductor
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations
Chill Wall
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm.
- Above: Connection to Actio construction element using aluminium clip (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38
– below: Fixation by site foundations
Climbing Pipe
- Welded construction made of stainless steel tube Ø 38 mm with three stainless steel balls Ø 150 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Resting Point
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, in a frame made of stainless steel tube Ø 38 ; with free climbing elements attached on one side
– top: screw-on connection to Actio construction element
below: Clamping through in-situ foundations
Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ labelling, 20 mm.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Foundations (client-provided)
1 pc. 1.77 x 0.5 x 0.5 m
2 pcs. 1.3 x 0.5 x 0.5 m
4 pcs. 0.6 x 0.6 x 0.5 m
2 pcs. 0.8 x 0.4 x 0.5 m
Concrete volume: 1.99 m³
Assembly time
3 fitters 5 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027350000
This Kaiser & Kühne product enables:
